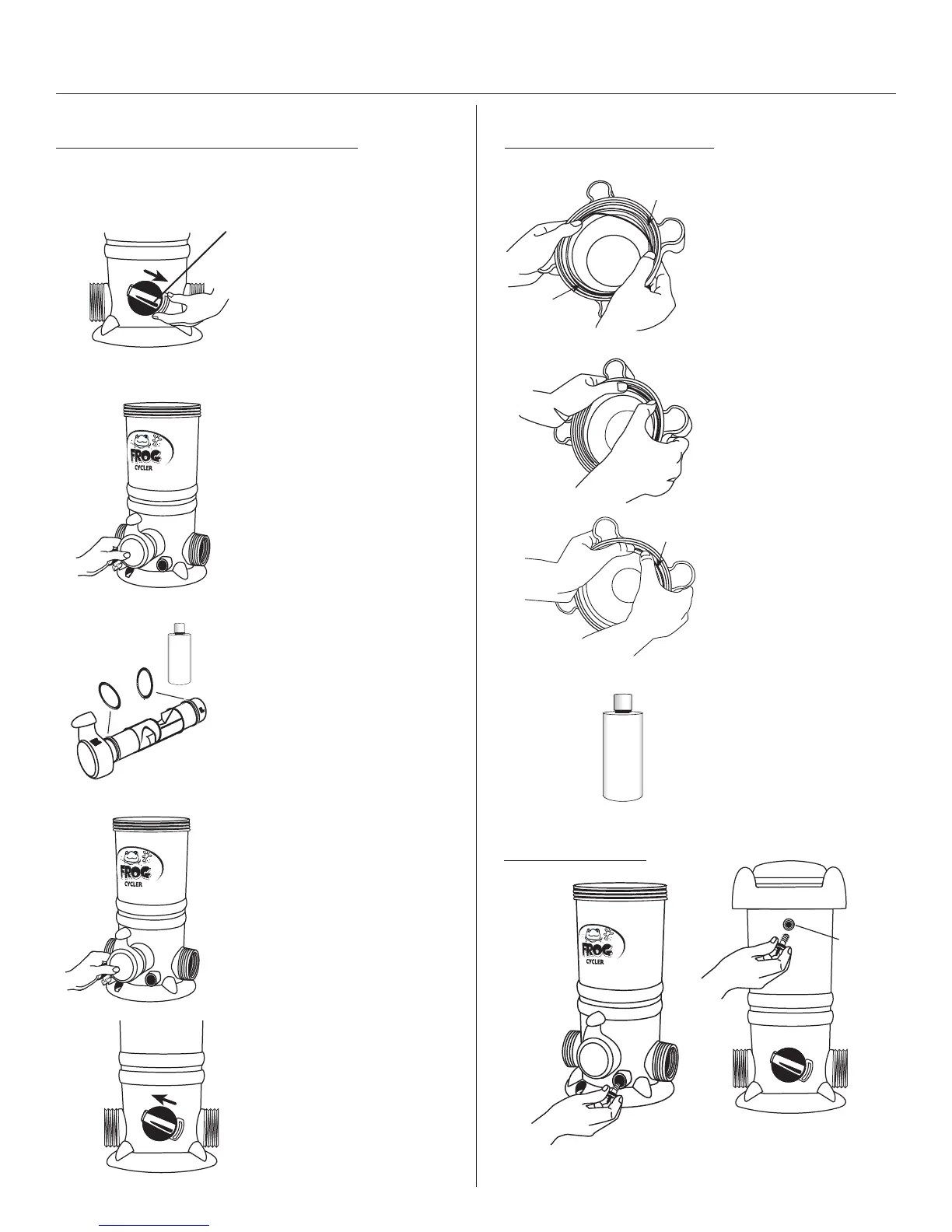

Pool Frog 6100 - POOL FROG Cycler Maintenance; Replacing Control Dial O-Rings; Replacing Cap O-Ring; Replacing Knobs

15
Replacing Knobs
Back of
POOL
FROG
®
Cycler
Front of
POOL
FROG
®
Cycler
1.
2.
3.
4.
5.
Center of locking pin
In the back of the POOL FROG
®
Cycler depress center of locking
pin with a nger and pull pin out
of dial.
Turn control dial back and forth
as you pull it out of the housing.
Replace both o-rings. Apply
silicone lubricant that came
with your POOL FROG
®
Cycler on
o-rings.
Carefully insert control dial
back into housing.
Replace locking pin by pushing it
through the slots on the dial until
it locks into place.
Lubricate o-ring every couple
of months with silicone
lubricant that came with your
POOL FROG
®
Cycler.
DO NOT USE petroleum
based lubricants.
To replace, simply unscrew old knob and
replace with the new one.
POOL FROG
®
Cycler Maintenance
S
I
L
I
C
O
N
E
L
U
B
R
I
C
A
N
T
S
I
L
I
C
O
N
E
L
U
B
R
I
C
A
N
T
Place o-ring in bottom half
of groove.
Place your thumbs on each
side of the cap over the o-
ring in the groove.
Roll your thumbs back and
forth over the o-ring while
pushing upward until the
o-ring falls into the top of
the groove.
4.
1.
Bottom half
of groove.
Top half of
groove.
O-ring in top
of groove
3.
2.
Replacing the Control Dial O-Rings
Replacing the Cap O-Ring
Product # 01-22-9971
