20
✙
✙
✙
✙
✙
For Proper Performance
1) If using a multi-speed pump, run
pump for at least 6 hours per day at
high speed (at least 40 gpm).
If the pump will run on low speed 24
hours per day or less than 6 hours per
day on high speed, you must bleed the
air while the pump is on by unscrewing
the back knob until water appears.
Then screw the knob back in. Repeat
this process each time the cap is
removed for any reason.
2) Install system with 4-8 psi back pressure.
Lower back pressures could result in under
chlorination. Change the eye ball ttings in
the return jets to a smaller size to increase
back pressure. Contact King Technology at
800-222-0169 for a pressure gauge to
determine back pressure at pool start-up.

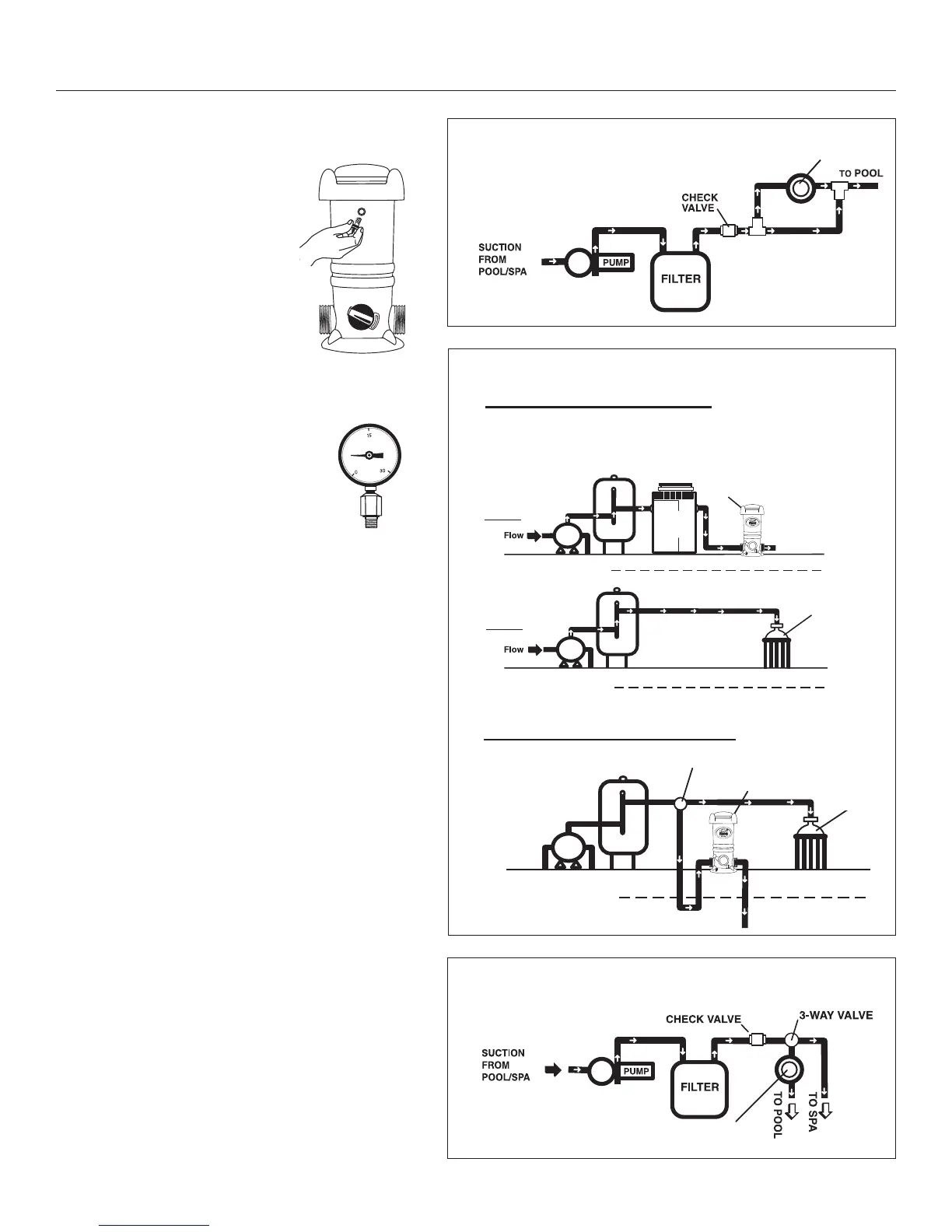

3) Special installation:
• If water ow is higher than 80 gpm, see
diagram A.
• If an in-oor cleaner is included with pool,
see diagram B, with two options. Preferred
installation is Option 1 with two separate lines.
• If set-up is a pool and spa combination with
common equipment, see diagram C.
• Any additional sanitizing equipment that is
installed with POOL FROG
®
must be installed
after POOL FROG
®
(never before) on the return
line to the pool.
NOTE: Over chlorination or damage to the POOL
FROG
®
or other equipment could result if these
special installations are not used in these situations.
Questions? Call Customer Service at 800-222-0169
Monday thru Friday, 8am to 5pm central standard
time.
A. With High GPMS
Install T-ttings exactly as shown.
B. With In-Floor Cleaner - TWO OPTIONS
The best option is to have two lines. One line with pump, lter, heater and
POOL FROG
®
Cycler and a second line with a separate pump for the in-oor
cleaning system (lter optional).
OPTION 1- A Two-Line Installation
POOL RETURN
POOL WATER LEVEL
POOL WATER LEVEL
POOL FROG
®
POOL FROG
®
IN-FLOOR
CLEANER
VALVE
FILTER
FILTER
HEATER
OPTION 2 - A 3-Way Valve Installation
POOL WATER LEVEL
3-way manual valve or 3-way motor valve plus controls
POOL FROG
®
IN-FLOOR
CLEANER
VALVE
FILTER
PUMP
PUMP
PUMP
C. Pool and Spillover Spa Combination
POOL FROG
®
Line 1
Line 2
To Next Page
