Pool Systems G2flo ZEN - Page 10

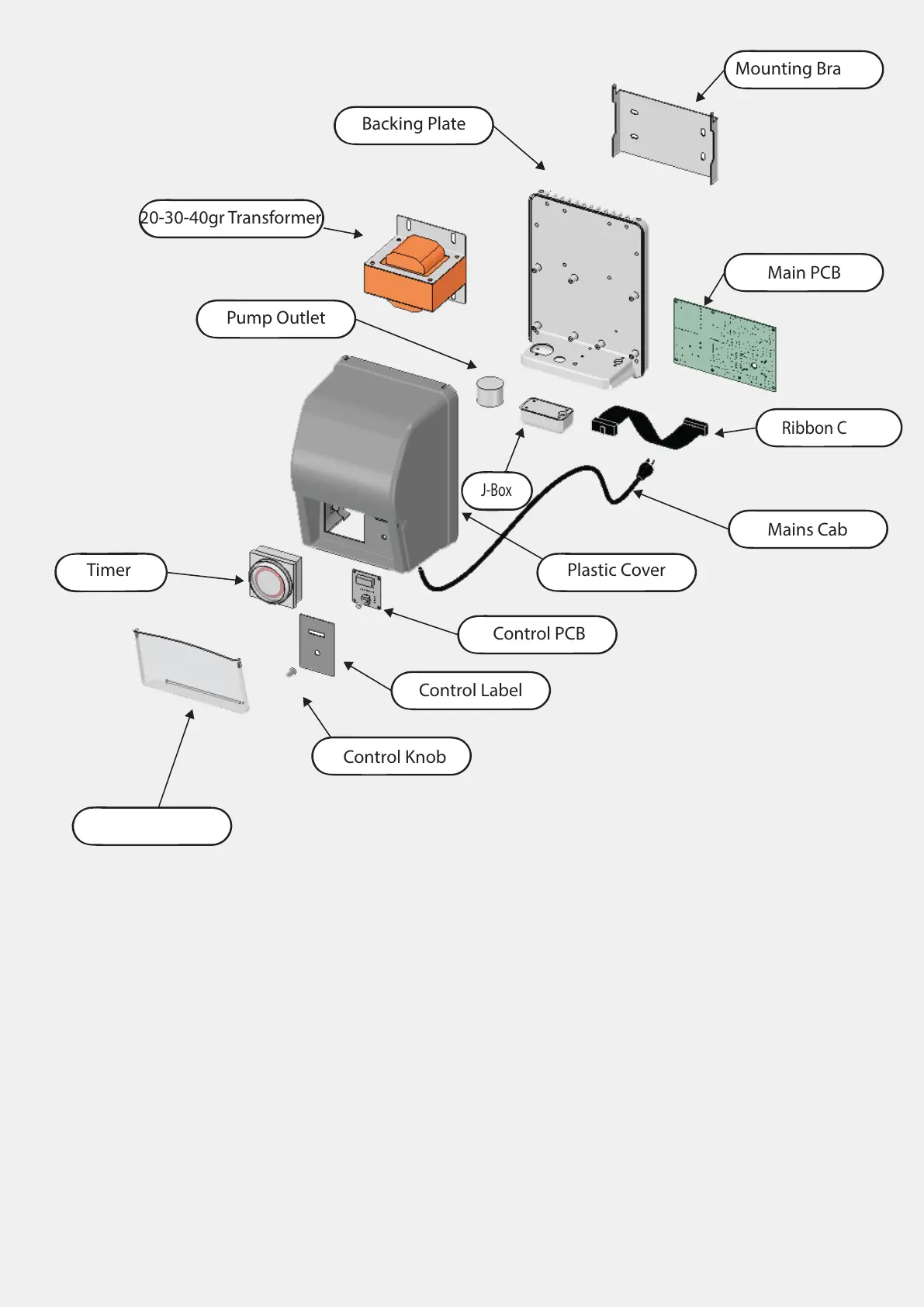

Plastic Cover
Mounting Bracket
Backing Plate
20-30-40gr Transformer
Pump Outlet
Main PCB
Ribbon Cable
J-Box
Timer
Control PCB
Control Label
Control Knob
Mains Cable
Part No Description
1. Mounting Bracket
2. Backing Plate
3. 20 - 30 -40gr Transformer
4. Pump Outlet
5. Timer
6. Clear Window
7. Control Knob
8. Control PCB
9. Plastic Cover
10. J-Box
11. Mains Cable
12. Ribbon Cable
13. Main PCB
14. Control Label
Clear Window
PARTS
10.
