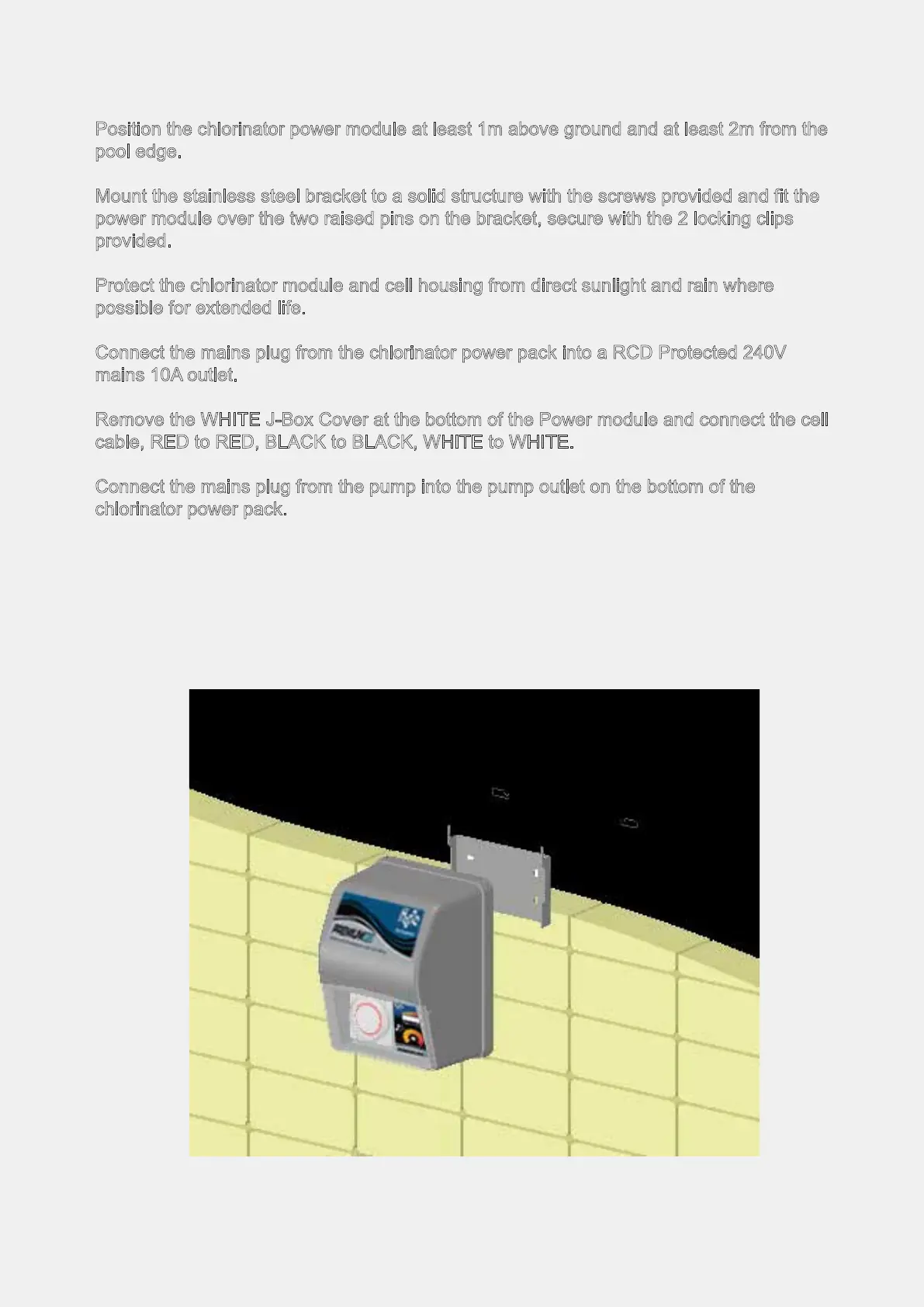

Position the chlorinator power module at least 1m above ground and at least 2m from the
pool edge.
Mount the stainless steel bracket to a solid structure with the screws provided and fit the
power module over the two raised pins on the bracket, secure with the 2 locking clips
provided.
Protect the chlorinator module and cell housing from direct sunlight and rain where
possible for extended life.
Connect the mains plug from the chlorinator power pack into a RCD Protected 240V
mains 10A outlet.
Remove the WHITE J-Box Cover at the bottom of the Power module and connect the cell
cable, RED to RED, BLACK to BLACK, WHITE to WHITE.
Connect the mains plug from the pump into the pump outlet on the bottom of the
chlorinator power pack.
INSTALLATION
