d. The slotted tubes (Omega Stabilizer) are colour coded or stamped with a part
number. Use the chart below to choose the types and quantities of slotted tubes for
your pool (part nos. are shown in brackets under each colour). Set lengths of slot-
ted tube onto the top edge of the wall as you uncoil it and join the slotted tubes with
connectors as you go, leaving a 1/2" (13 mm) gap between each. (If you have a
beaded pool liner, set lengths of liner retainer onthetopedgeofthewallrst,then
the slotted tubes and connectors.)
The 18 x 33
pool is the
only size
that uses all
four types of
slotted tubes.

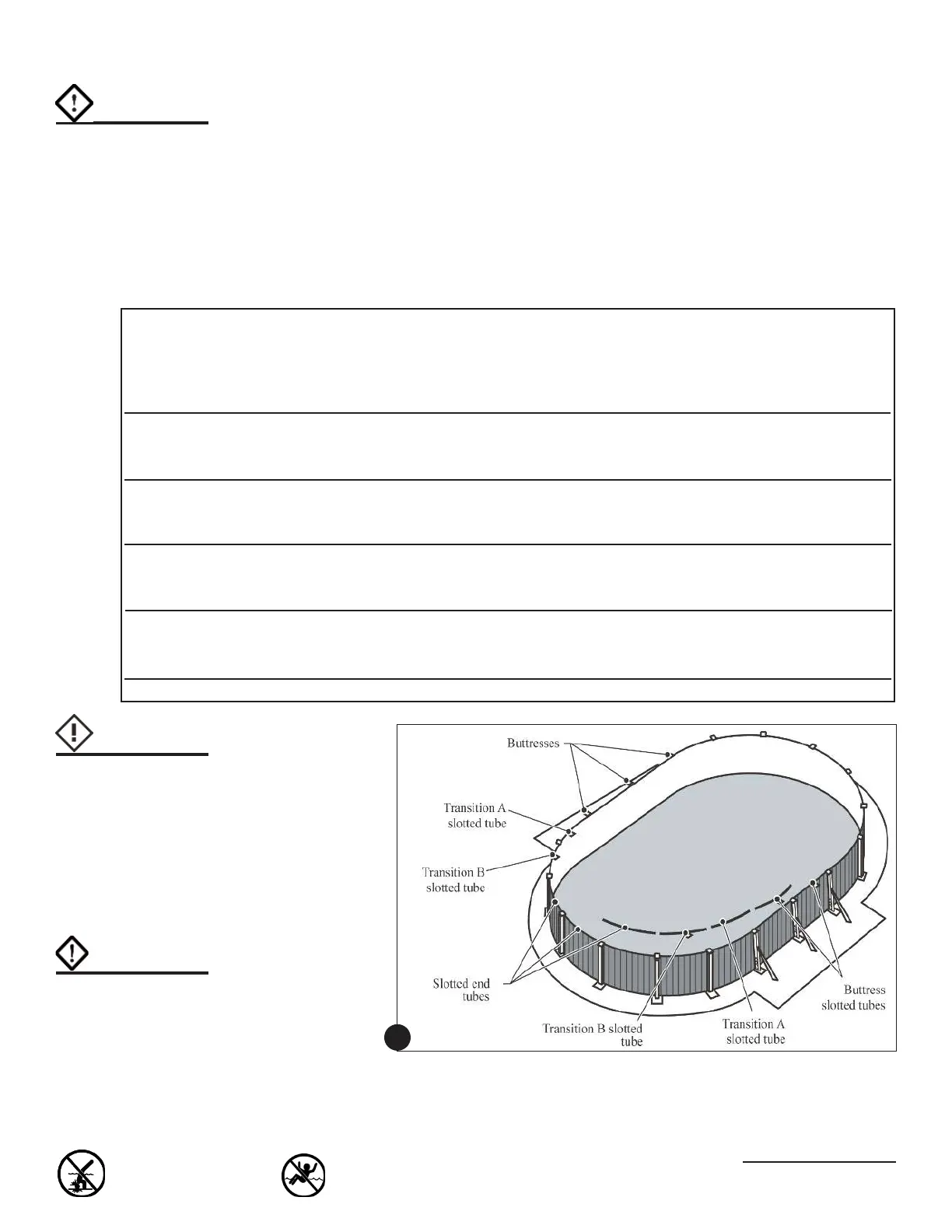

Diagram 5
shows the
locations for
each type
Hint:
Secure the omega stabi-
lizer connector to the wall
with a piece of duct tape
after installation to prevent
it from lifting off the wall.
Hint:
Stick a screwdriver
through two of the holes
to help line up the ends of
the wall.
Quantity and Colour Code (with part numbers)
Pool Size Buttress Tube Transition Tube A Transition Tube B End Tube
12' x 18' (3,66m x 5,49m) n/a 4 blue n/a 6 plain
(no. 1470127) (no. 1470126)
12' x 24' (3,66m x 7,32m) 4 white 4 black n/a 6 plain
(no. 1470105) (no. 1470129) (no. 1470126)
15' x 24' (4,57m x 7,32m) 2 white 4 green n/a 8 plain
(no. 1470105) (no. 1470100) (no. 1470097)
15' x 30' (4,57m x 9,14m) 4 green 4 green n/a 8 plain
(no. 1470100) (no. 1470100) (no. 1470097)
18' x 33' (5,49m x 10,05m) 4 green 4 green 4 green 6 plain
(no. 1470100) (no. 1470100) (no. 1470100) (no. 1470098)
(n/a=not applicable; plain=no colour code)
5
Hint:
Using a 2" (5 cm) piece
of duct tape, tape the ends
of the 6" (15 cm) metal
slotted tube connector over
the slotted tubes and onto
the pool wall. This will
prevent the slotted tubes
from moving during liner
installation.
