13
Engine, Crankshaft, Pistons

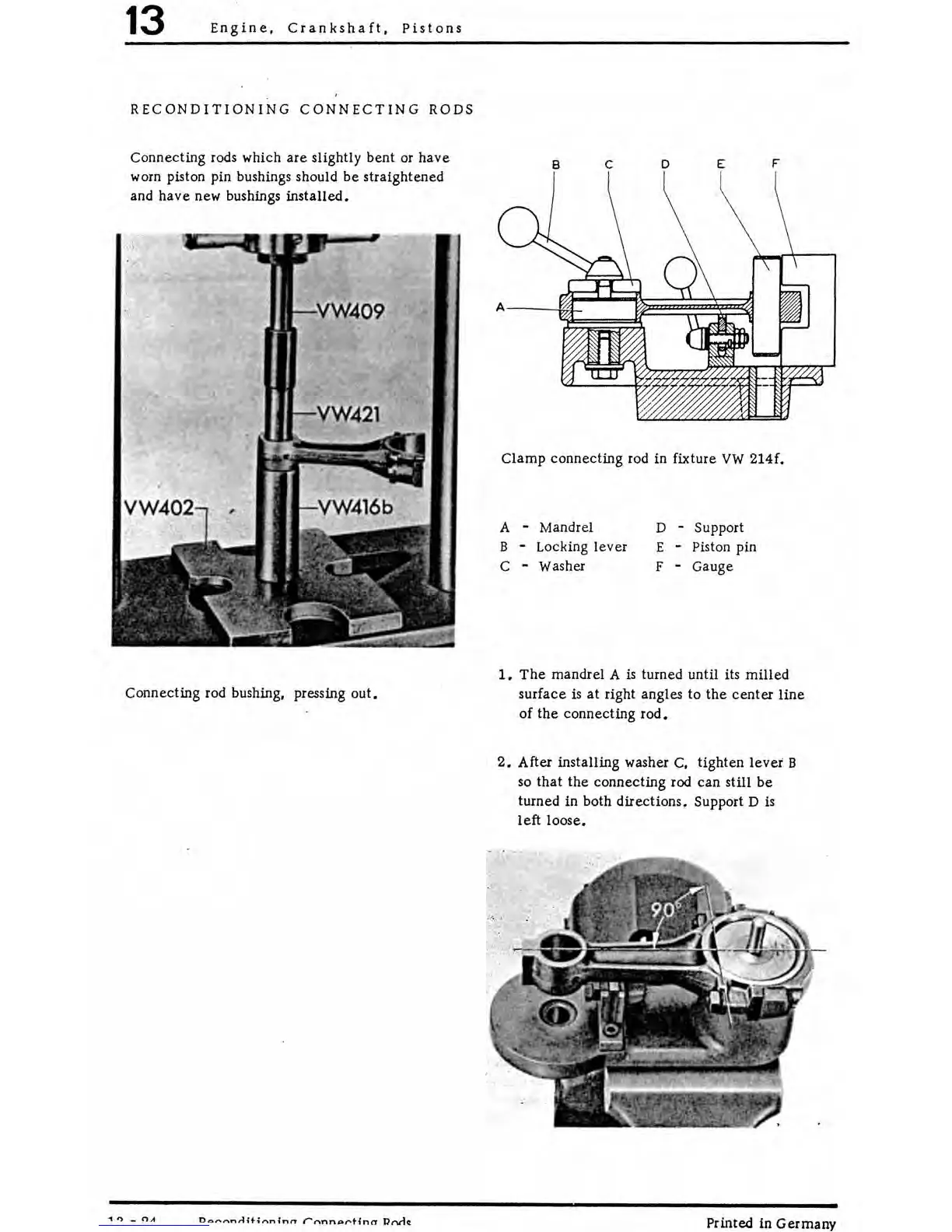

RECONDITIONING CONNECTING RODS
Connecting rods which are slightly bent or have
worn piston pin bushings should be straightened
and
have new bushings installed.
Connecting rod bushing, pressing out.
1 ll - ()A
8
c D
E
F
Clamp connecting rod in fixture VW 214f.
A
- Mandrel
B
- Locking lever
C - Washer
D -
Support
E - Piston pin
F - Gauge
1. The mandrel A is turned until its milled
surface is at right angles to the center line
of the connecting rod.
2. After installing washer C, tighten lever B
so
that the connecting rod can still be
turned in both directions. Support D is
left loose.
