Porta-Nails 402 - LOADING NAILS

6

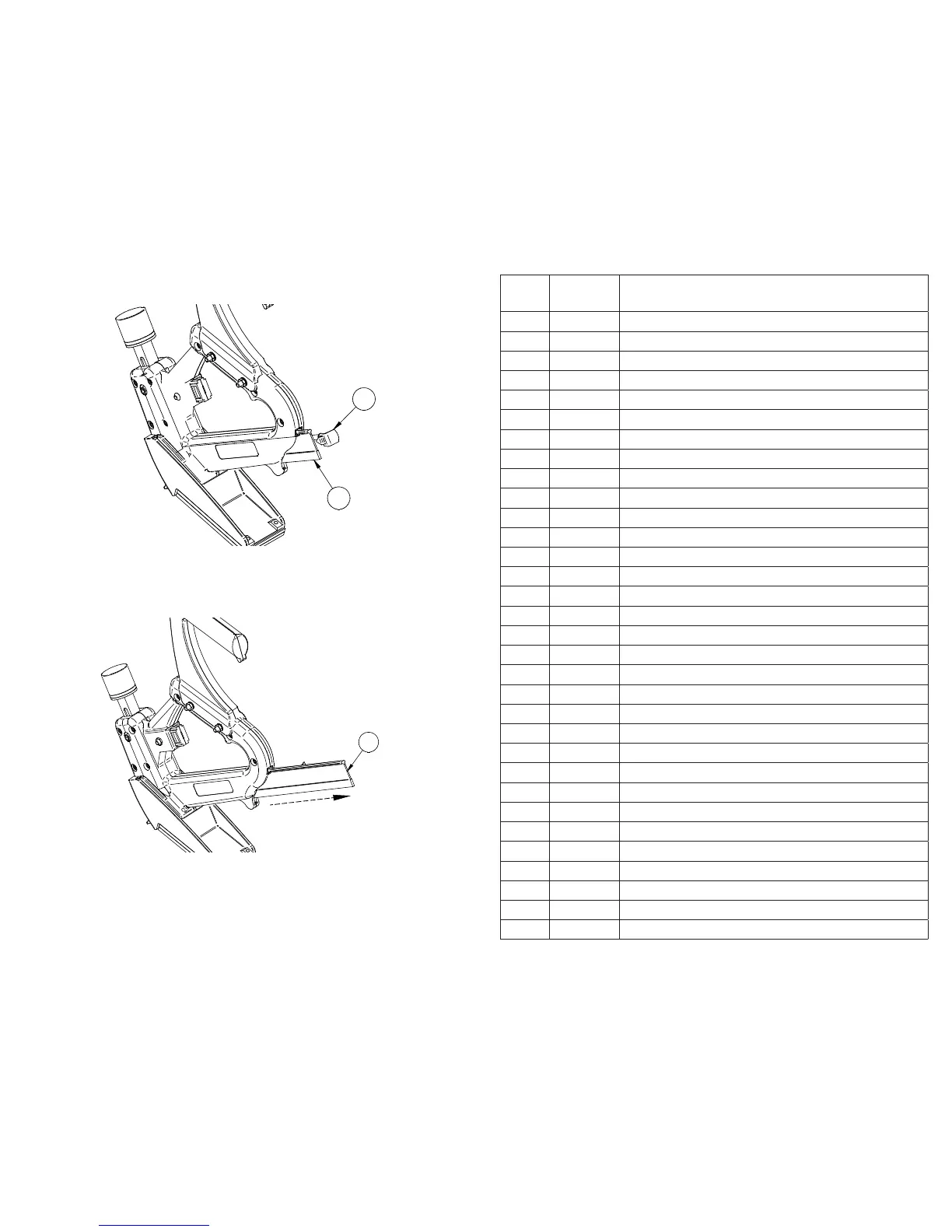

LOADING NAILS
17
20
Unhook the Connector (Ref. No. 17) from the Pusher (Ref. No. 1.
20).
20
Remove the Pusher (Ref. No. 20) from the Nail Rail.2.
19
Ref.
No.
Part
No. Description
1. 40272 Body – R.H.
2. 40273 Body – L.H.
3. 40061 Extension Handle (Includes #38)
4. 40220 Tongue Nailing Shoe
5. 40153 Tongue Nailing Shoe Base (2 ea)
6. 2598 Tongue Nailing Shoe Base Screws (4 ea)
7. 40223 Face Shoe
8. 40224 Face Shoe Base
9. 40226 Face Shoe Base Screws (4 ea)
10. 40043 Shoe Screws (4 ea)
11. 40040 Wear Plate / Shear Plate Dowels (2 ea)
12. 54580 Wear Plate
13. 40170 Shear Plate
14. 53849 Pusher Spring Roll Pin 1/8 x 5/8
15. ------- Pusher Spring Tube (See Ref. No. 48)
16. 40146 Pusher Spring
17. 40093 Connector
18. 40109 Rail Spring Pin 1/8 x 3/8
19. 40151 Rail
20. 40094 Pusher
21. 40030 Rubber Ram Cap
22. 40116 Ram (Includes #’s 21,24,26)
23. 40131 Driver Blade
24. 40052 Ram Washer
25. 40124 Ram Spring Guide
26. 40126 Ram Spring
27. 40245 Ram Guide
28. 40050 Ram Stop Screws (2 ea)
29. 40241 Shoulder Screw (Includes #30)
30. 802194 Shoulder Screw Nut
31. 2190 Pawl Housing Set
32. 40101 Pawl Spring
