20
Ref.
No.
Part
No. Description
33. 40037 Pawl
34. 40115 Ram Stop Springs (2 ea)
35. 40048 Ram Stop Block
36. 40243 Nailer Body Screws (4 ea)
37. 40244 Body Handle Screws (3 ea)
38. 1165 Extension Handle Fasteners
39. 40229 Thin Flooring Shoe
40. 40152 Thin Flooring Shoe Base
41. 2600 Thin Flooring Shoe Base Screws (4 ea)
42. 40221 Tongue Nailing Shoe Assembly
(Includes #’s 4, 5, 6)
Not to be used with Cat. No 401
43. 40225 Face ShoeAssembly
(Includes #’s 7, 8, 9)
Not to be used with Cat. No 501
44. 40230 Thin Flooring Shoe Assembly
(Includes #’s 39,40, 41)
Not to be used with Cat. No 401
45. 40008 Hammer (Not Shown)
46. 840080 Spare Parts Package (Not Shown;
Includes #’s 24, 26)
47. 2191 Pawl Housing Assembly (Includes # 31, 32, 33)
48. 40097 Pusher Spring Tube Assembly
(Includes #’s 15, 16, 17)
49. 59561 Starter Parts Kit (Incluye #’s 12, 13, 20, 21, 23, 24,
25, 26, 32, 33)
5

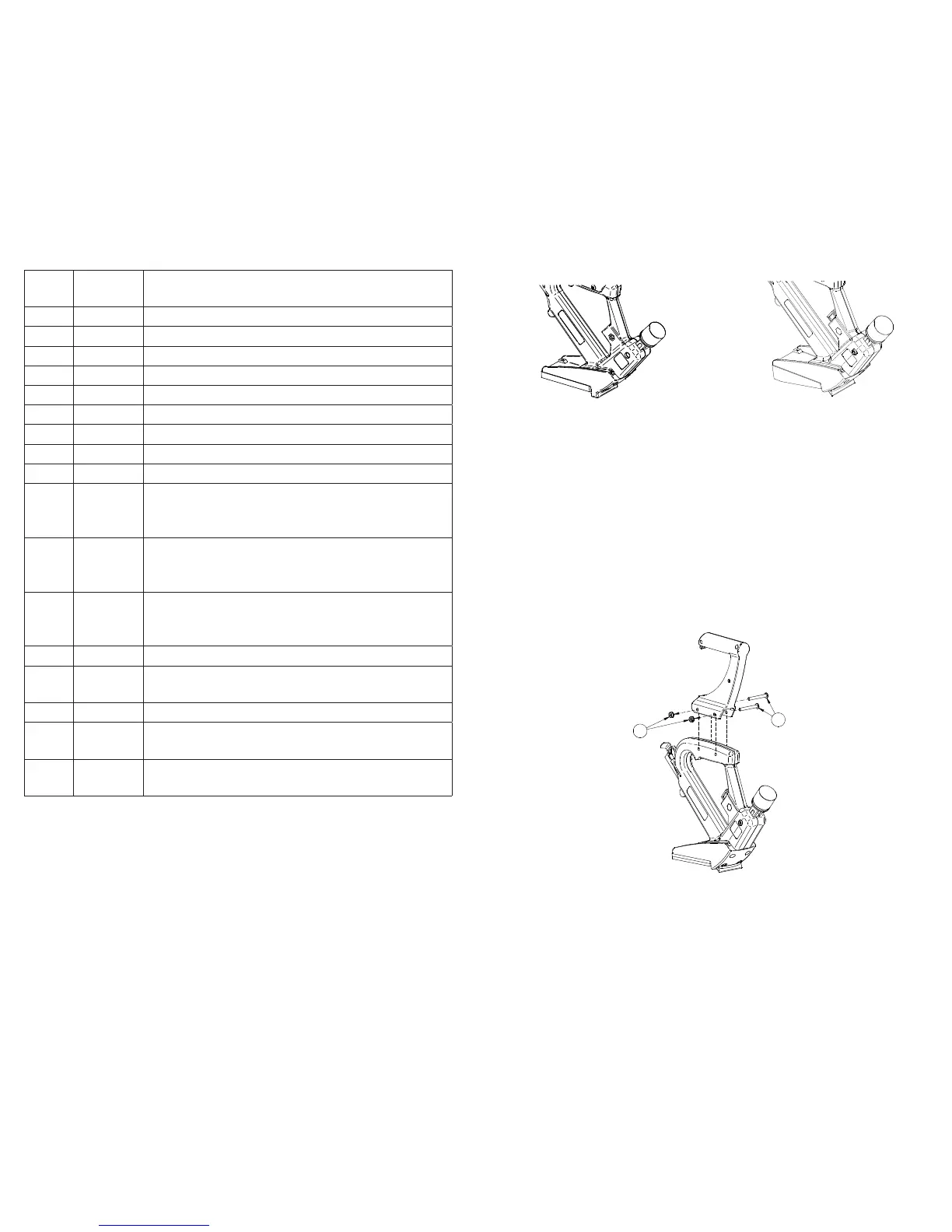

FIGURE 5
Tongue Nailing
5/8” Bamboo Flooring
Accessory Shoe
Cat. No. 40248
(Sold Separately)
FIGURE 6
Angled Shoe Base
for nailing 3/4” Flooring over 3/4” Sub-
fl ooring over Concrete.
Accessory Shoe
Cat. No. 42626
(Sold Separately)
ASSEMBLING THE EXTENSION HANDLE
Fasten the Extension Handle to the Nailer using the two (2) Screws
and Nuts (Ref. No. 38) furnished with the unit.
38
38
FIGURE 7
Installing the Extension Handle
