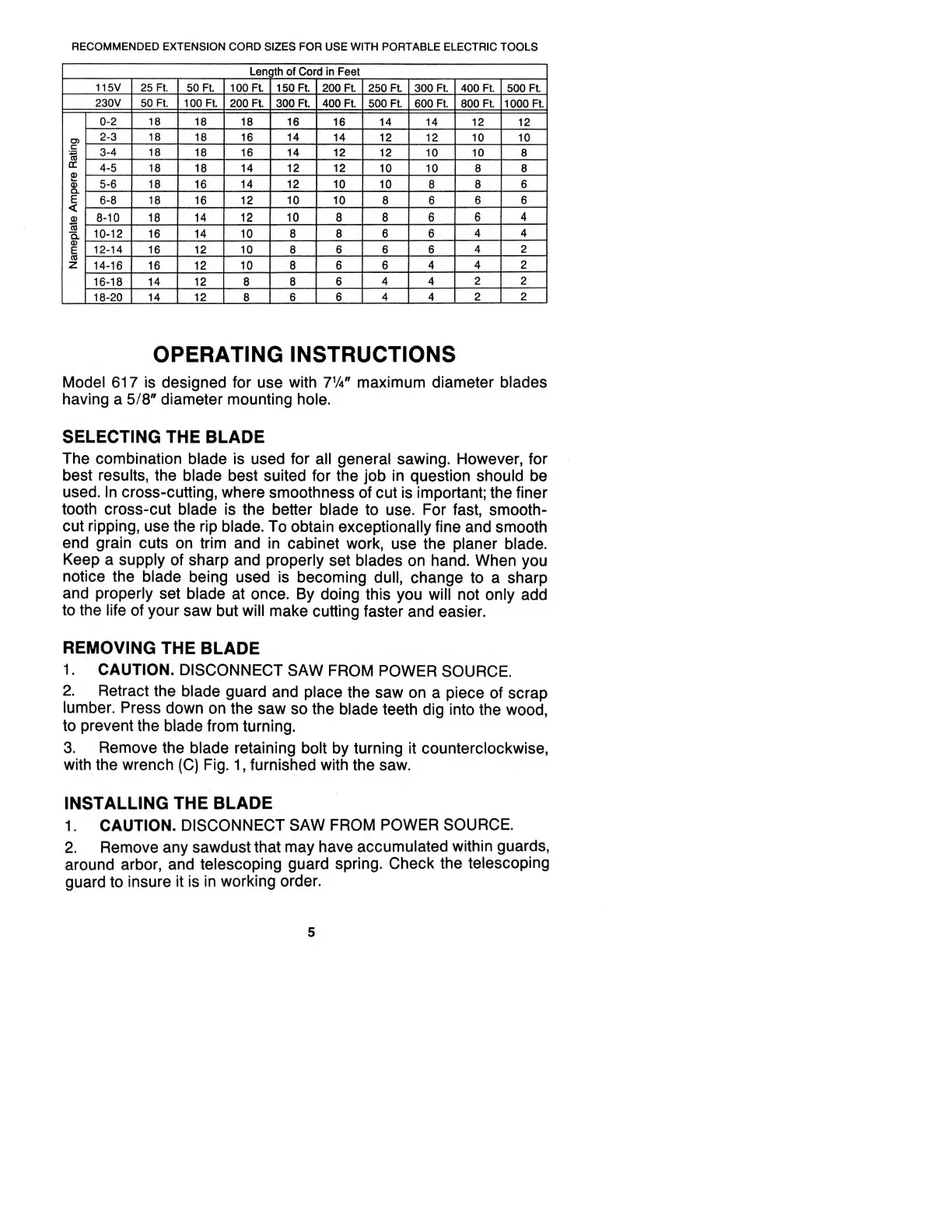

Porter-Cable 617 - Selecting the Blade; Removing the Blade; Installing the Blade

RECOMMENDED EXTENSION CORD SIZES FOR USE WITH PORTABLE ELECTRIC TOOLS
Lent
3 th of Cord in Feet |
! 115V
25 Ft.
50 Ft. 100 Ft.
150 Ft.
250 Ft. 300 Ft. 400 Ft.
500 Ft.
50 Ft. 100 Ft.
200 Ft.
300 Ft.
400 Ft.
500 Ft. 600 Ft.
800 Ft. 1000 Ft.
Nameplate
Ampere
Rating
0-2
18 16
16 14
12
12
2-3
18 18
16 _
14
14
12
10
10
3.4
18
18
14
12
12 10 10
8
4-5 18
18
14
12
8
8
5-6
18
16
MEM
12 10 10
8
8 6
18
16
mem
10
10 8
6
6 6
18
14
12
10 8 8
6
6
4
16 14 10
8 8
6 6
4
4
16 12 10
8 6
6 6
4 2
16
12
10
8 6
6
4
4 2
14
12 8
8
6
4
4
2
2
18-20
14
12
8
6 6
4 4
2
OPERATING INSTRUCTIONS
Model 617 is designed for use with Tk” maximum diameter blades
having a 5/8" diameter mounting hole.
SELECTING THE BLADE
The combination blade is used for all general sawing. However, for
best results, the blade best suited for the job in question should be
used. In cross-cutting, where smoothness of cut is important; the finer
tooth cross-cut blade is the better blade to use. For fast, smooth-
cut ripping, use the rip blade. To obtain exceptionally fine and smooth
end grain cuts on trim and in cabinet work, use the planer blade.
Keep a supply of sharp and properly set blades on hand. When you
notice the blade being used is becoming dull, change to a sharp
and properly set blade at once. By doing this you will not only add
to the life of your saw but will make cutting faster and easier.
REMOVING THE BLADE
1. CAUTION. DISCONNECT SAW FROM POWER SOURCE.
2. Retract the blade guard and place the saw on a piece of scrap
lumber. Press down on the saw so the blade teeth dig into the wood,
to prevent the blade from turning.
3. Remove the blade retaining bolt by turning it counterclockwise,
with the wrench (C) Fig. 1, furnished with the saw.
INSTALLING THE BLADE
1. CAUTION. DISCONNECT SAW FROM POWER SOURCE.
2. Remove any sawdust that may have accumulated within guards,
around arbor, and telescoping guard spring. Check the telescoping
guard to insure it is in working order.
5
