1.2.5 GAM LED Indicators
The GAM uses three (3) LED indicators inserted in the cover of the IP67 enclosure
to provide information about its global status and operating mode.

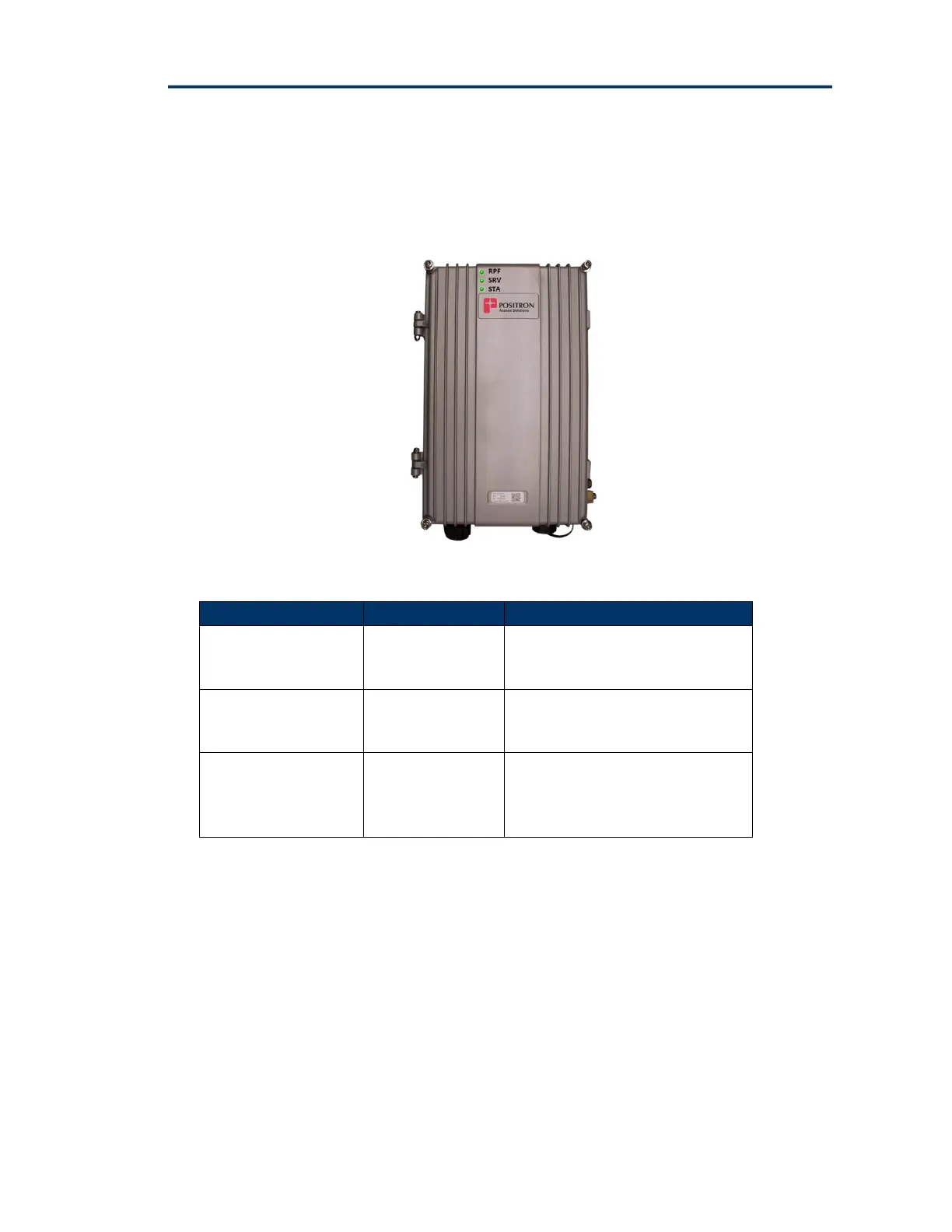

Figure 6: GAM global status LEDs
LED
Condition
Function
RPF
Off
On
No Reverse Power Feed
Reverse Power Feed on at least 1
G.hn port
SRV
Solid Green
Solid Yellow
Solid Red
System OK
GAM is starting up
No Internet Connection
STA
Solid Green
Solid Yellow
Blinking Yellow
Solid Red
Normal
Minor Alarm Active
Firmware Update in Progress
Critical or Major Alarm Active
Table 1: GAM Global LED indicators
