Potter PSN-64 - Pass Thru Mode Wiring

PSN-64:9
PSN-106, PSN-64, PSB-10 • 5403590 • REV A • 12/09

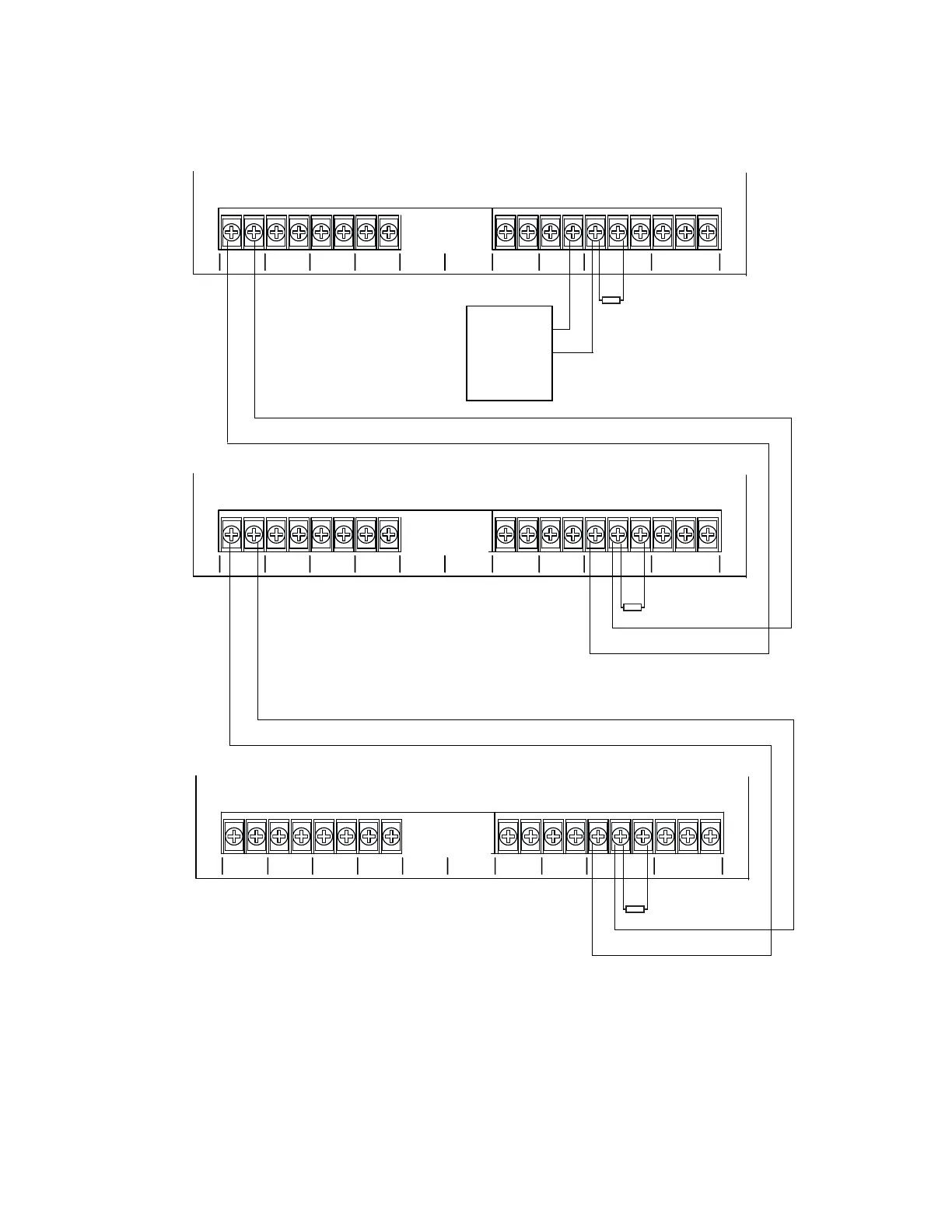

Pass Thru Mode
The NAC output of the PSN-64 can be used to trigger additional supplies. Up to 3 supplies maximum can be confi gured in this
manner. Full system synchronization is maintained. The minimum wire gauge between supplies is 18 AWG. A maximum wiring
distance of 10,000 feet is allowed between each supply.
EOL
Class-B
FACP
NAC
Output
-
+
NAC1
- +
NAC2
- +
NAC3
- +
NAC4
- +
DC PWR
- +
REF
EOL
IN 1
- + EOL
IN 2
- + EOL
NAC1
- +
NAC2
- +
NAC3
- +
NAC4
- +
DC PWR
- +
REF
EOL
IN 1
- + EOL
IN 2
- + EOL
EOL
NAC1
- +
NAC2
- +
NAC3
- +
NAC4
- +
DC PWR
- +
REF
EOL
IN 1
- + EOL
IN 2
- + EOL
EOL
DWG# 3590-14-B
