PSN-106:10
PSN-106, PSN-64, PSB-10 • 5403590 • REV A • 12/09

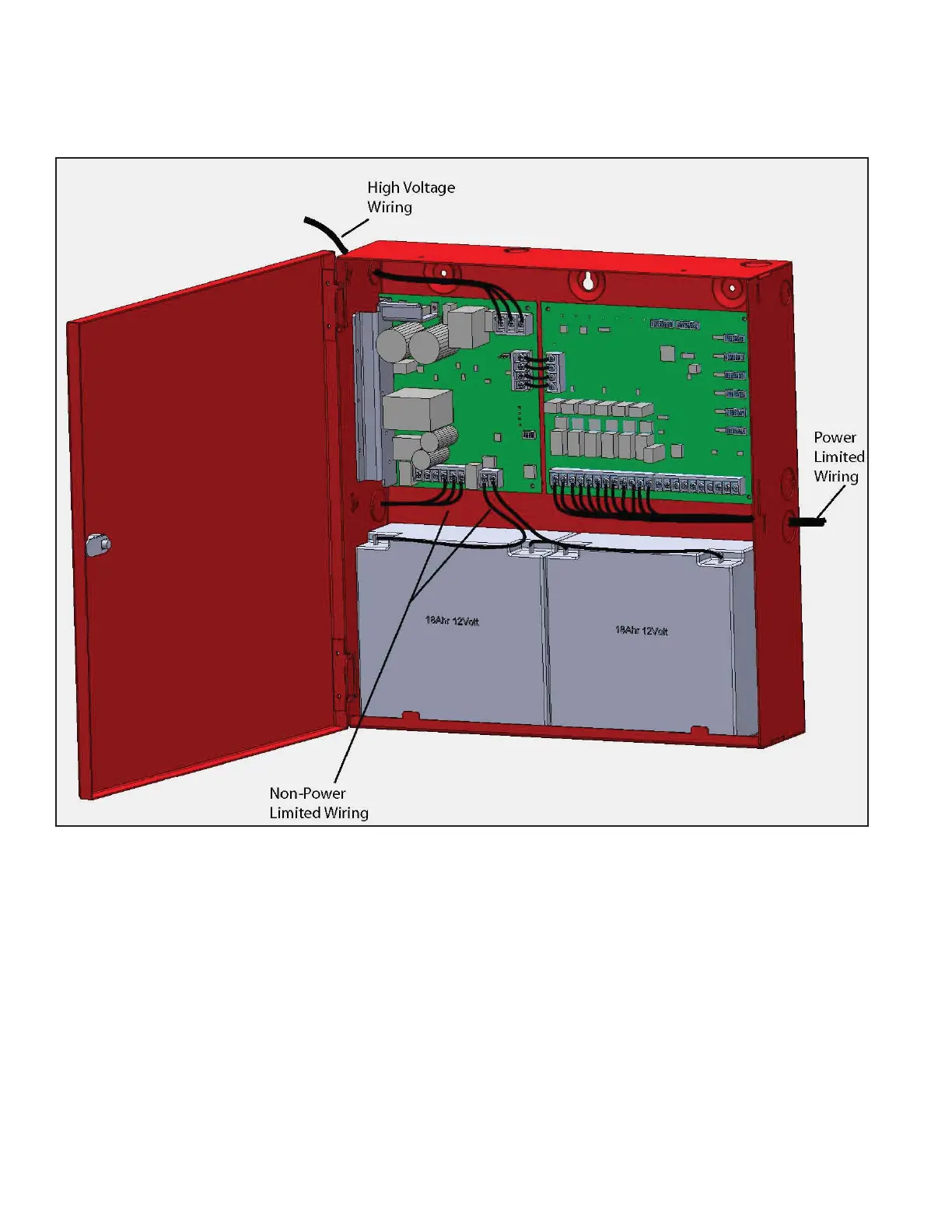

Wire Routing
A minimum of ¼ inch separation must be maintained between Power Limited, Non-Power Limited, and High Voltage wiring. See
illustration for suggested wire routing
Reference EOL
The PSN-106 uses a standard 5.1k EOL resistor (Potter part number 3005013).
In retrofi t applications where a value other than 5.1k is already in use, a reference EOL input is provided. Simply connect a
matching EOL resistor to the reference EOL input. All NAC wiring will then be supervised based on this value. Any EOL value
from 2.0k to 27k can be used.
If no reference EOL is connected, 5.1k is assumed.
