PSB-10:5
PSN-106, PSN-64, PSB-10 • 5403590 • REV A • 12/09
Wire Routing

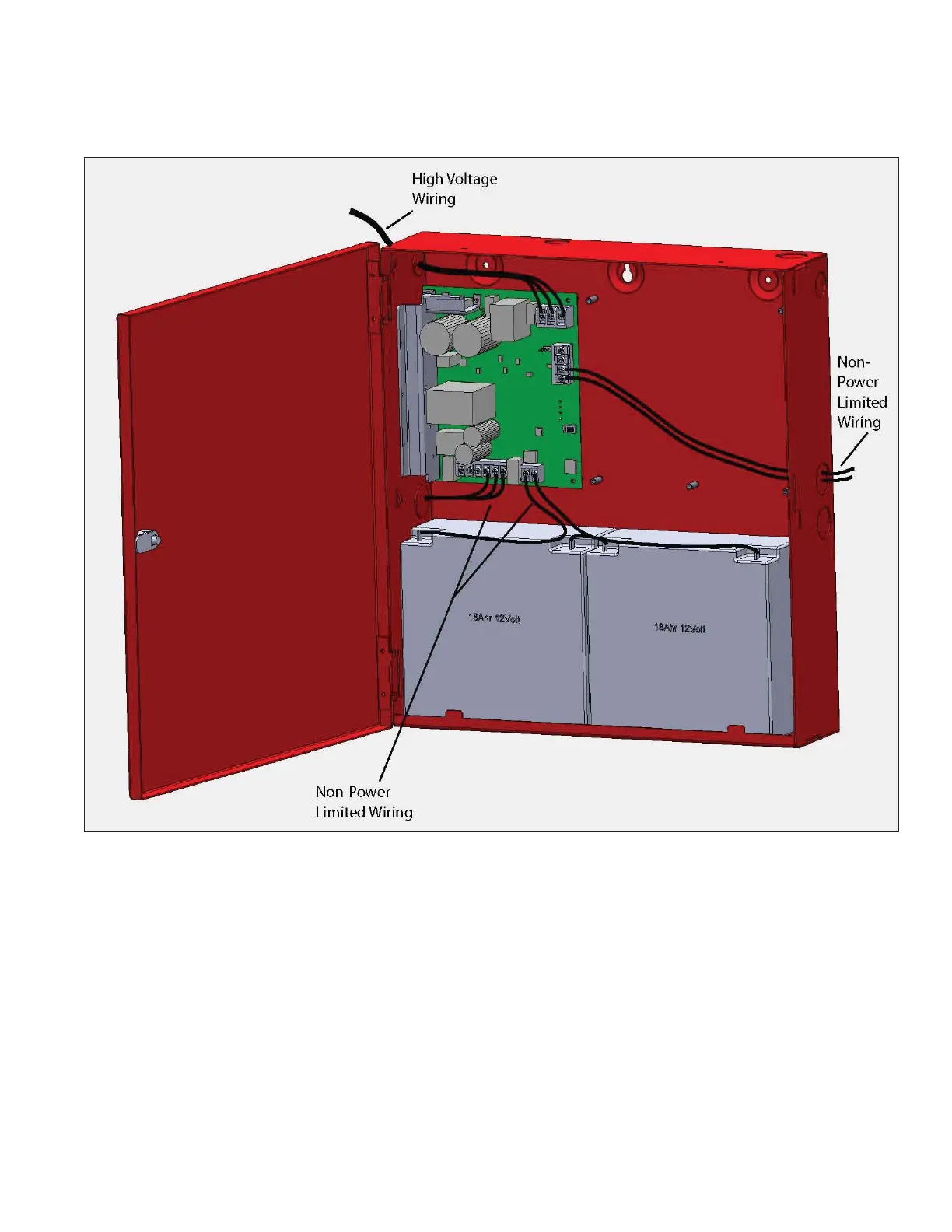

A minimum of ¼ inch separation must be maintained between Power Limited, Non-Power Limited, and High Voltage wiring. See
illustration for suggested wire routing
Note: The output of the bulk power supply is not power limited. All fi eld wiring must be a minimum of 18 AWG and installed in
conduit. All wiring connections must be made within 20 feet (6.1 meters) of the bulk supply.
