Potter RBVS User Manual

5401591 - REV A • 1/20 PAGE 2 OF 12
Potter Electric Signal Company, LLC • St. Louis, MO • Phone: 800-325-3936 • www.pottersignal.com
RBVS
Universal Ball Valve/Solenoid
Coil Supervisory Switch
Mounting kits

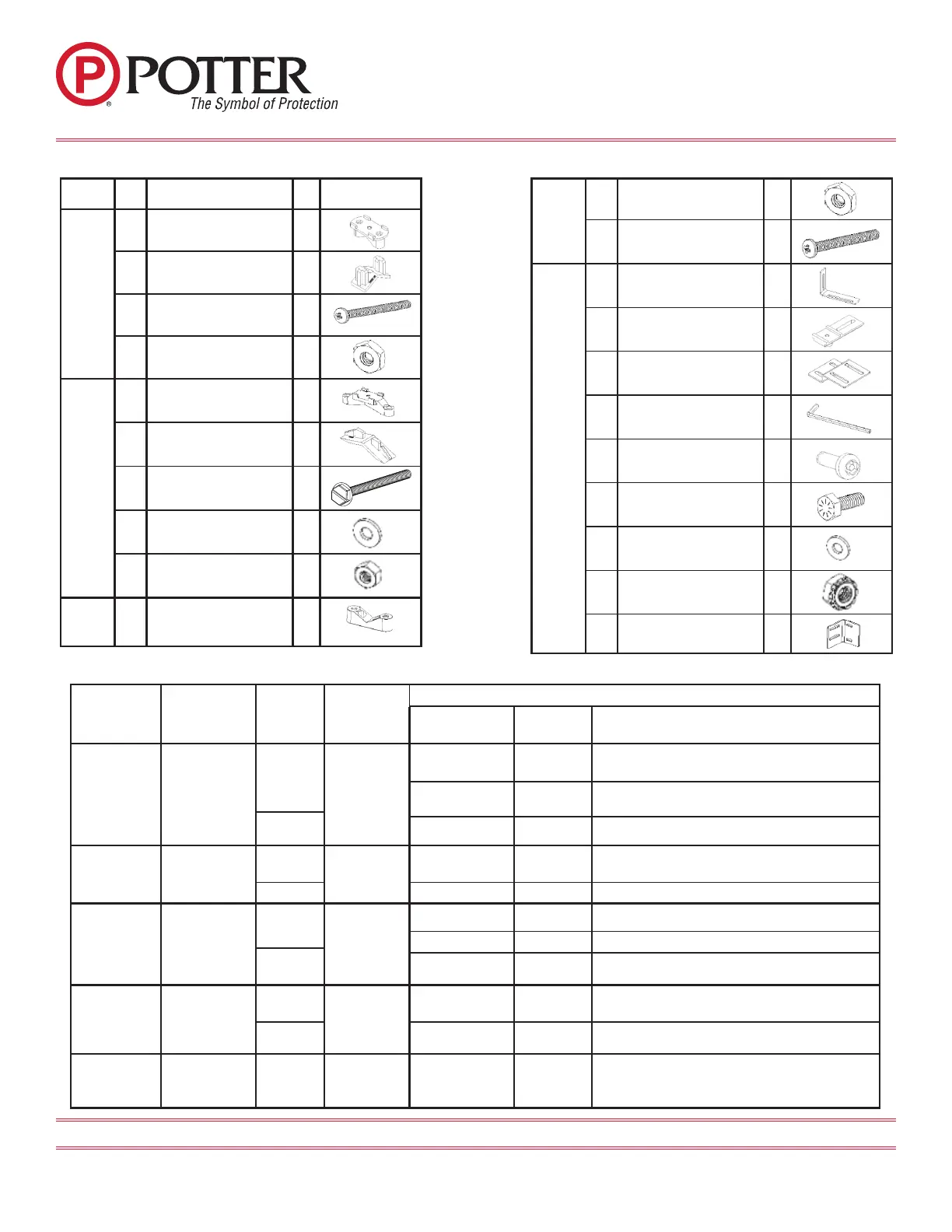

Table 1: Mounting Congurations
Bag
Color
Item
No.
Description Qty Illustration
White
Mounting
Kit
1 CLAMP-VEE (SMALL) 2
2
GRIPPER-RUBBER
(SMALL)
2
3
SCREW-MACHINE #10-32
X 2-1/2”
2
4
NUT-HEX #10-32 STEEL/
ZINC PLATED
2
Blue
Mounting
Kit
5 CLAMP-VEE (LARGE) 2
6
GRIPPER-RUBBER
(LARGE)
2
7
SCREW-1/4-20 X 4” HEX
WASHER HD ZINC
2
8 WASHER-SAE 1/4” 2
9 NUT-HEX 1/4-20 2
Clear
Solenoid
Mounting
Kit
10
CLAMP-VEE SOLENOID
(SMALL)
1
Clear
Solenoid
Mounting
Kit
11
NUT-HEX #10-32 STEEL/
ZINC PLATED
2
12
SCREW-MACHINE #10-32
X 1-3/4”
2
Red
Bracket-
Hardware
Kit
13 “L” BRACKET-MOUNTING 1
14 BRACKET-EXTENSION 1
15 BRACKET-OFFSET 1
16
KEY-HEX TAMPERPROFF
HOLE ONE END
1
17
SCREW-TAMPER
RESISTANT #8-32 X 1/2”
4
18
BOLT 1/4-20 X 3/4 HEX HD
CAP SCREW
2
19 WASHER-SAE 1/4” 2
20
NUT-KEPS #8-32 HEX
STEEL / ZINC PLATED
2
21
BRACKET-SOLENOID
MOUNTING
1
Pipe Size/Valve
Supervise Open/
Closed Valves
Valve
Handle
Type
Use Bag
Color
Use Item Number: Item # (xQty)
Clamps/Grippers
Item # (xQty)
Brackets
Item #
Hardware: Item # (xQty)
1/2” to 3/4”
(12,5 to 19mm)
Open
Lever
(Fig 1&2)
White/Red
Mounting Kit
1(x2), 2(x2) 13 3(x2), 4( x2), 16, 17(x2), 18, 19
1(x2), 2(x2) 13, 14 3(x2), 4( x2), 16, 17(x2), 18(x2), 19(x2)
Tee (Fig 4)
1(x2), 2(x2) 13, 15 3(x2), 4( x2), 16, 17(x4), 18, 19, 20(x2)
1/2” to 3/4”
(12,5 to 19mm)
Closed
Lever
(Fig 5)
White/Red
Mounting Kit
1(x2), 2(x2) 13, 14 3(x2), 4( x2), 16, 17(x2), 18(x2), 19(x2)
Tee 1(x2), 2(x2) 13, 14, 15 3(x2), 4( x2), 16, 17(x4), 18(x2), 19(x2), 20(x2)
1” to 2”
(25 to 50mm)
Open
Lever
(Fig 1&2)
Blue/Red
Mounting Kit
5(x2), 6(x2) 13 7(x2), 8(x2), 9( x2), 16, 17(x2), 18, 19
5(x2), 6(x2) 13, 14 7(x2), 8(x2), 9( x2), 16, 17(x2), 18(x2), 19(x2)
Tee
(Fig 4)
5(x2), 6(x2) 13, 15 7(x2), 8(x2), 9( x2), 16, 17(x4), 18, 19, 20(x2)
1” to 2”
(25 to 50mm)
Closed
Lever
(Fig 5)
Blue/Red
Mounting Kit
5(x2), 6(x2) 13, 14 7(x2), 8(x2), 9( x2), 16, 17(x2), 18(x2), 19(x2)
Tee 5(x2), 6(x2) 13, 14, 15 7(x2), 8(x2), 9( x2), 16, 17(x4), 18(x2), 19(x2), 20(x2)
1/2” Solenoid
Conduit
“Nipple”
-
1/2
Solenoid
Valve
(Fig 6)
White/Clear/
Red Solenoid
Mounting Kit
1, 2(x2), 10 13, 21 11(x2), 12(x2), 16, 17(x4), 18, 19, 20(x2)
