Poulan Pro P3314WSA Parts List

PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
POULAN PARTS LIST
R
Replaces
2
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.

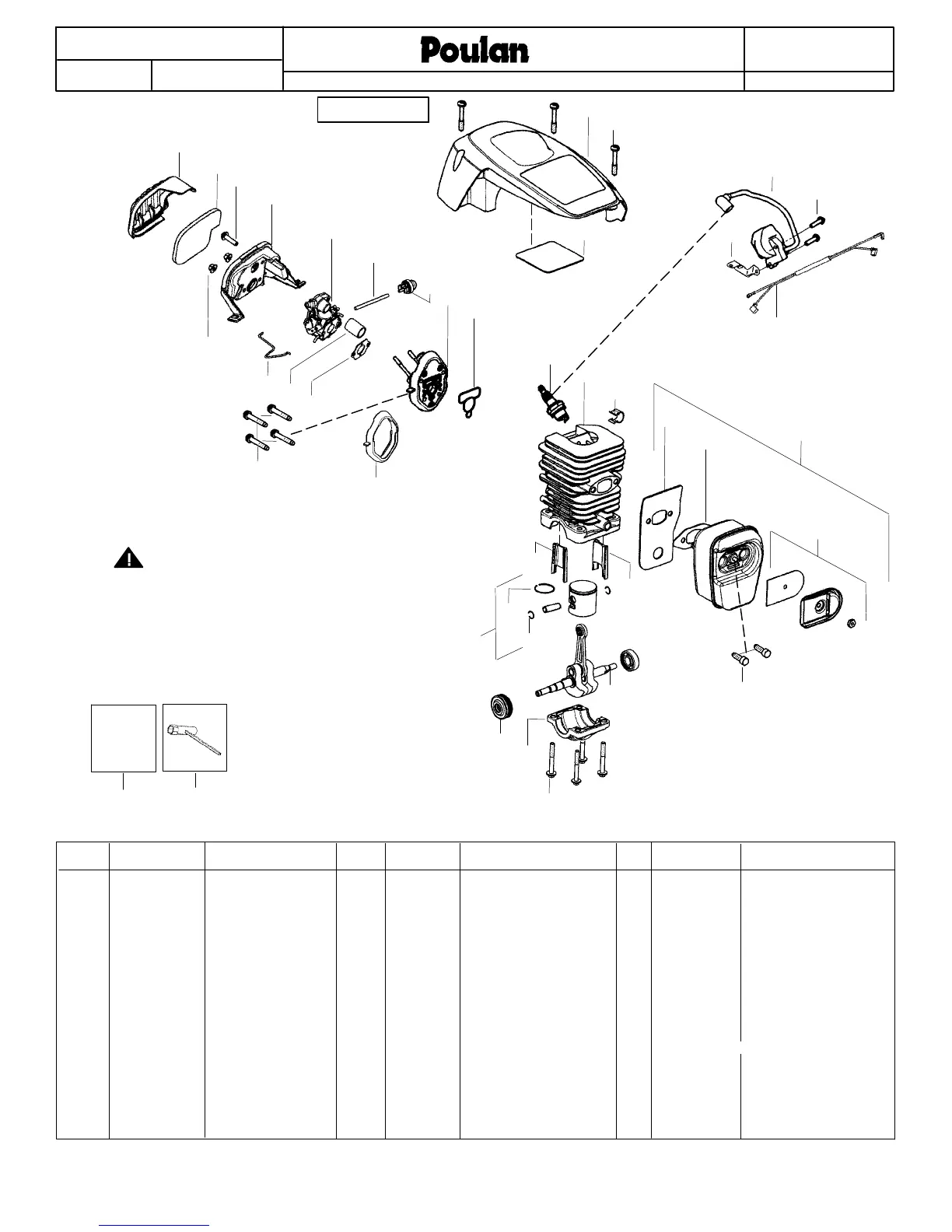

CHAIN SAW MODEL(s)
530165457
P3314 WSA
DATE
07/03/08
PARTS LIST
530165457 --- 06/06/08
r
1. 530058837 Shield--Cylinder
(incl. #3)
2. 530016153 Screw
3. 530059006 Reflector--Tape
4. 530039198 Module -- Ignition
5. 530016432 Screw
6. 530047442 Strap--Ground
7. 530057943 Assy--Wire Harness
8. 530058687 Cover--Air Filter
9. 530057925 Filter--Air
10. 530016425 Screw
11. 530057892 Housing--Air Filter
12. ------ Carburetor
530035590 Zama W--26
13. 530069247 Kit--Fuel Line (Small)
14. 530047721 Bulb--Purge “snap--in”
15. 530071889 Kit--Carb. Adaptor
( Incl. # 16,34,37)
16. 530071894 Gasket--cyl. o--ring (kit)
17. 952030150 Accy--Spark Plug (RCJ--7Y)
18. 530071884 Kit--Cylinder (Incl. 25,33)
19. 530016136 Clip--High Tension Lead
20. 530071887 Kit--Muffler (Incl .21--23,24)
21. 530057942 Backplate--Muffler
22. 530071894 Gasket--Muffler (kit)
23. 530071886 Kit--Spark Arrestor
24. 530016338 Bolt--Muffler
25. 530057885 Insert--Left (black) Cyl.
26. 530012537 Assy--Crankshaft/Rod
27. 530016417 Bolt
28. 530057941 Cap--Crankcase
29. 530056363 Assy--Bearing/Seal
30. 530071883 Kit--Piston (Incl. 31,32)
31. 530015697 Retainer--Piston Pin
Ref. Part No.
Description
Ref. Part No. Description
Ref.
Part No. Description
32. 530038729 Ring--Piston
33. 530057886 Insert--Right (gray) Cyl.
34. 530071894 Seal--Adaptor (kit)
35. 530016426 Screw
36. 530071894 Gasket--Carb. (kit)
37. 530057926 Tube--Intake
38. 530057909 Wire--Throttle
39. 530016101 Nut--Carb.
40. 530071894 Kit--Gasket
(Incl . 16,22,34,36)
41. 530031163 Wrench--Bar
545047535 Manual--Operator
530059107 Decal--Warning
530058840 Decal--Start/Stop Inst.
Engine
Gasket
Kit
= NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)K
40
Not Shown
41
All repairs, adjustments and maintenance not
described in the Operator’s Manual must be
performed by qualified service personnel.
WARNING
8
9
10
11
12
13
14
15
16
17
18
19
21
22
20
1
2
3
4
5
7
6
39
38
37
36
35
34
33
25
31
32
29
27
26
28
24
30
23
TYPE 1
