Poulan Pro PLN1510 User Manual

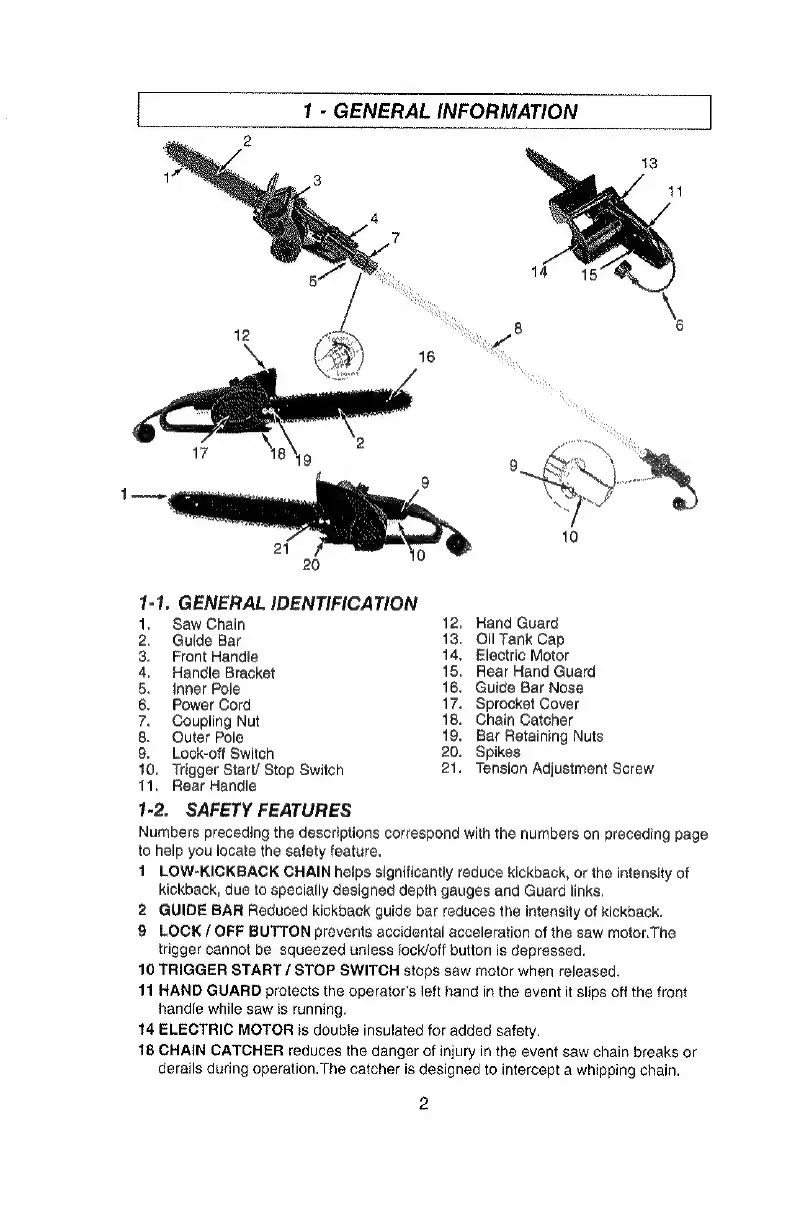

1 - GENERAL INFORMATION
1-1. GENERAL IDENTIFICATION
1. Saw Chain 12. Hand Guard
2. Guide Bar 13. Oil Tank Cap
3. Front Handle 14, Electric Motor
4. Handle Bracket 15, Rear Hand Guard
5. Inner Pole 16. Guide Bar Nose
6. Power Cord 17. Sprocket Cover
7. Coupling Nut 18. Chain Catcher
8. Outer Pole 19. Bar Retaining Nuts
9. Lock-off Switch 20. Spikes .
10. Trigger Start/ Stop Switch 21. Tension Adjustment Screw
11. Rear Handle
1-2. SAFETY FEATURES
Numbers preceding the descriptions correspond with the numbers on preceding page
to help you locate the safety feature.
1 LOW-KICKBACK CHAIN heips significantly reduce kickback, or the intensity of
kickback, due to specially designed depth gauges and Guard links.
2 GUIDE BAR Reduced kickback guide bar reduces the intensity of kickback.
9 LOCK / OFF BUTTON prevents accidental acceleration of the saw motor.The
trigger cannot be squeezed unless lock/off button is depressed.
10 TRIGGER START / STOP SWITCH stops saw motor when released.
11 HAND GUARD protects the operator's left hand in the event it slips off the front
handle while saw is running.
14 ELECTRIC MOTOR is double insulated for added safety.
18 CHAIN CATCHER reduces the danger of injury in the event saw chain breaks or
derails during operation. The catcher is designed to intercept a whipping chain.
