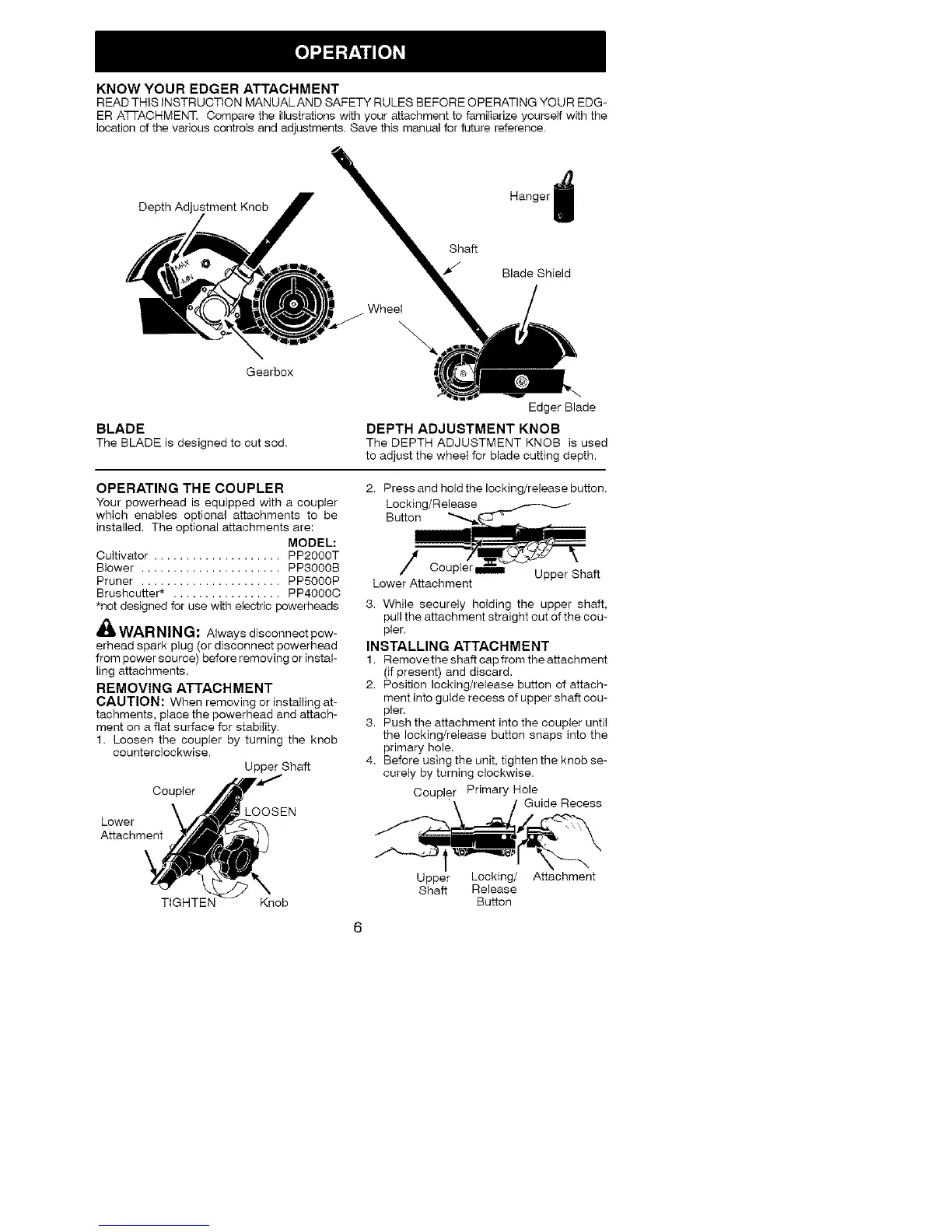

KNOWYOUREDGER ATTACHMENT
READ THIS iNSTRUCTiON MANUALAND SAFETY RULES BEFORE OPERATING YOUR EDG-
ER AT!-ACHMEN_R Compare the illustrations with your attachment to familiarize yoursetf with the
location of the various controls and adjustments. Save this manual for future reference.
Depth Adjustment Knob
Wheel
Shaft
./
Hanger j
Blade Shield
Gearbox
BLADE
The BLADE is designed to cut sod,
Edger Blade
DEPTH ADJUSTMENT KNOB
The DEPTH ADJUSTMENT KNOB is used
to adjust the wheet for blade cutting depth.
OPERATING THE COUPLER
Your powerhead is equipped with a coupIer
which enabtes optional attachments to be
installed. The optional attachments are:
MODEL:
Cultivator .................... PP2000T
Blower ...................... PP3000B
Pruner ...................... PP5000P
Brushcutter* ................. PP4000C
*not designed for use with electric powerheads
_k WARNING: Always disconnect pow-
erhead spark plug (or disconnect powerhead
from power source) before removing or instal-
ling attachments.
REMOVING ATTACHMENT
CAUTION: Whee removing or installing at-
tachments, place the powerhead and attach-
ment on a flat surface for stability.
1. Loosen the coupler by turning the knob
counterclockwise.
Upper Shaft
Coupler
Lower \
Attachment
2. Press and hold the locking/release button.
Locking/Release
Button
/
Lower Attachment
Upper Shaft
3. While securely hoiding the upper shaft.
putl the attachment straight out of the cou-
pler.
INSTALLING ATTACHMENT
1. Remove the shaft cap from the attachment
(if present) and discard.
2. Position locking/release button of attach-
ment into guide recess of upper shaft cou-
pler.
3. Push the attachment into the coupler until
the locking/release button snaps into the
primary hole.
4. Before using the unit. tighten the knob se-
curely by turning clockwise.
Coupler Primary Hole
Guide Recess
TIGHTEN Knob
Upper Locking/
Shaft Release
Button
Attachment
