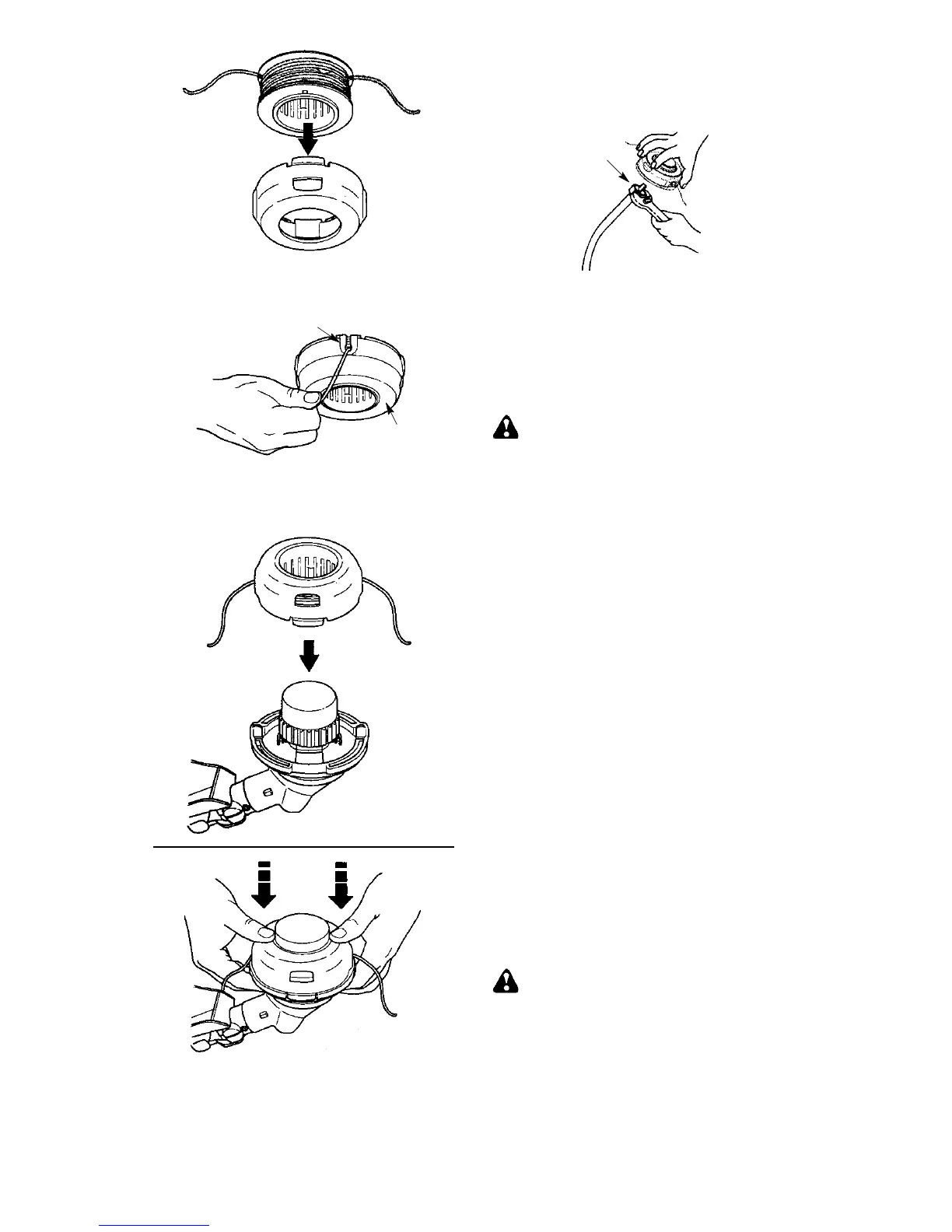

10. Insert the ends of the lines through exit
holes in the sides of the cover .
Line exit hole
Cover
11. Reinstall the spool and cover onto the
trimmer head. Push until cover snaps into
place.
REPLACING THE TRIMMER HEAD
1. Hold the dust cup with a wrench to keep
the shaft from turning while removing and
installing trimmer head.
Dust Cup
2. Remove trimmer head by turning coun-
terclockwise (looking from bottom of
unit).
3. Thread replacement trimmer head onto the
shaft by turning clockwise. Only tighten
hand tight!
IDLE SPEED ADJUSTMENT
WARNING: Keep others away when
making idle speed adjustments. The trimmer
head or any optional attachment will be spin-
ning during most of this procedure. W earyour
protective equipment and observe all safety
precautions. After making adjustments, the
trimmer head or any optional attachment
must not move/spin at idle speed.
The carburetor has been carefully set at the
factory. Adjustment of the idle speed may be
necessary if you notice any of the following
conditions:
S Engine will not idle when the throttle is
released.
S The trimmer head or any optional
attachment moves/spins at idle.
Make adjustments with the unit supported so
the cutting attachment is of f the ground and
will not make contact with any object. Hold
the unit by hand while running and makingad-
justments. Keep all parts of your body away
from the cutting attachment and muffler.
To adjust idle speed:
Allow engine to idle. Adjust speed until engine
runs without trimmer head or any optional at-
tachment moving or spinning (idle too fast) or
engine stalling (idle speed too slow).
S Turn idle speed screw clockwise to increase
engine speed if engine stalls or dies.
S Turn idle speed screw counterclockwise to
decrease engine speed if trimmer head or any
optional attachment moves or spins at idle.
WARNING: Recheck the idle speed
after each adjustment. The trimmer head or
any optional attachment must not move or
spin at idle speed to avoid serious injury to the
operator or others.
