25
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
2
2
*3
*6
*6
*4
*5
01.09.007-A

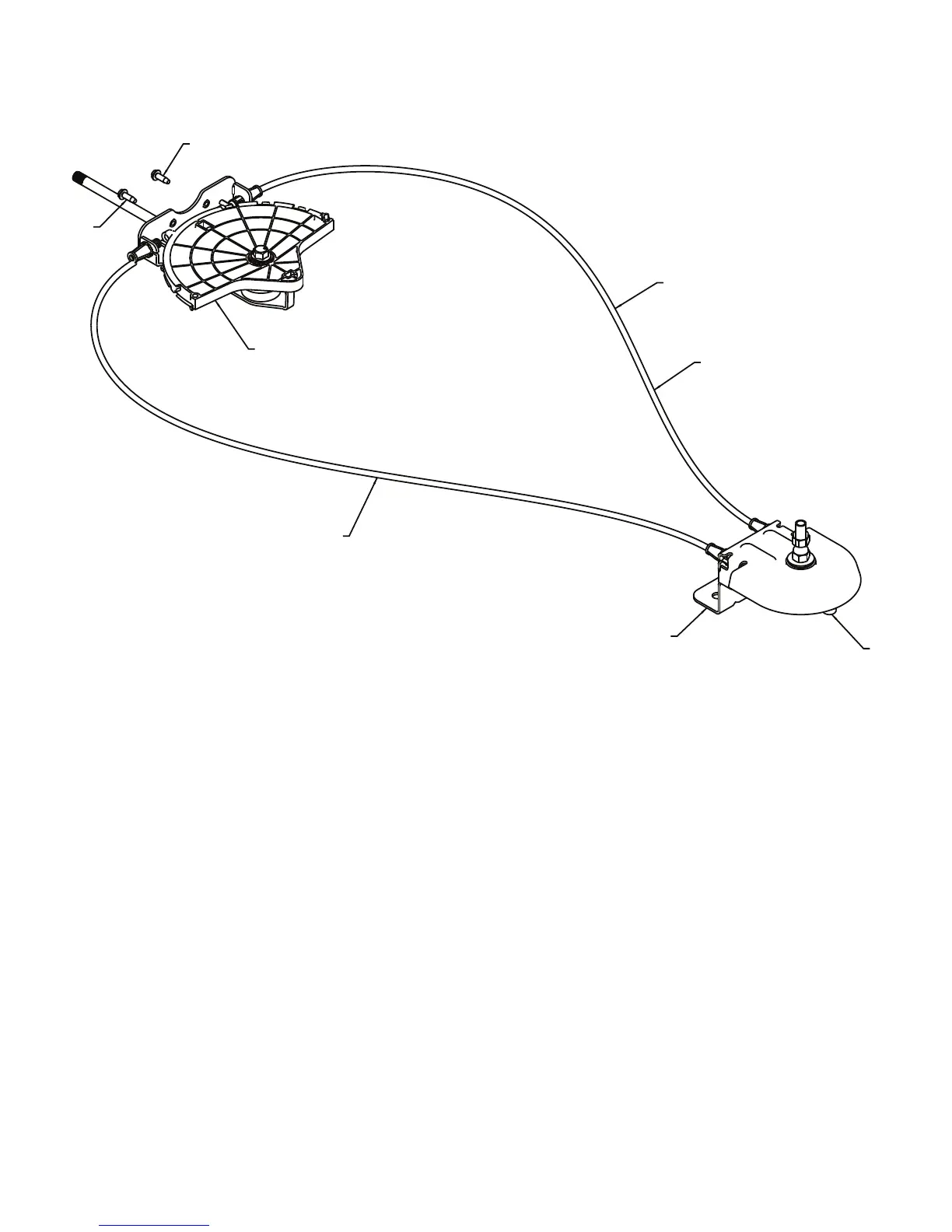

REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR208 (96192002101)
CONTROL PANEL / CHUTE
1 420337 LEVER/CABLE ROTATOR ASSEMBLY
2 17501010 SCREW 10−24 X .625
*3 420678 ROTATOR HEAD
*4 420677 ROTATOR PIVOT BRACKET
*5 420675 PULLEY PIVOT
*6 420674 CABLE ASSEMBLY
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.
