31
REPAIR PARTS SNOW THROWER - MODEL PR271 (96192009102)

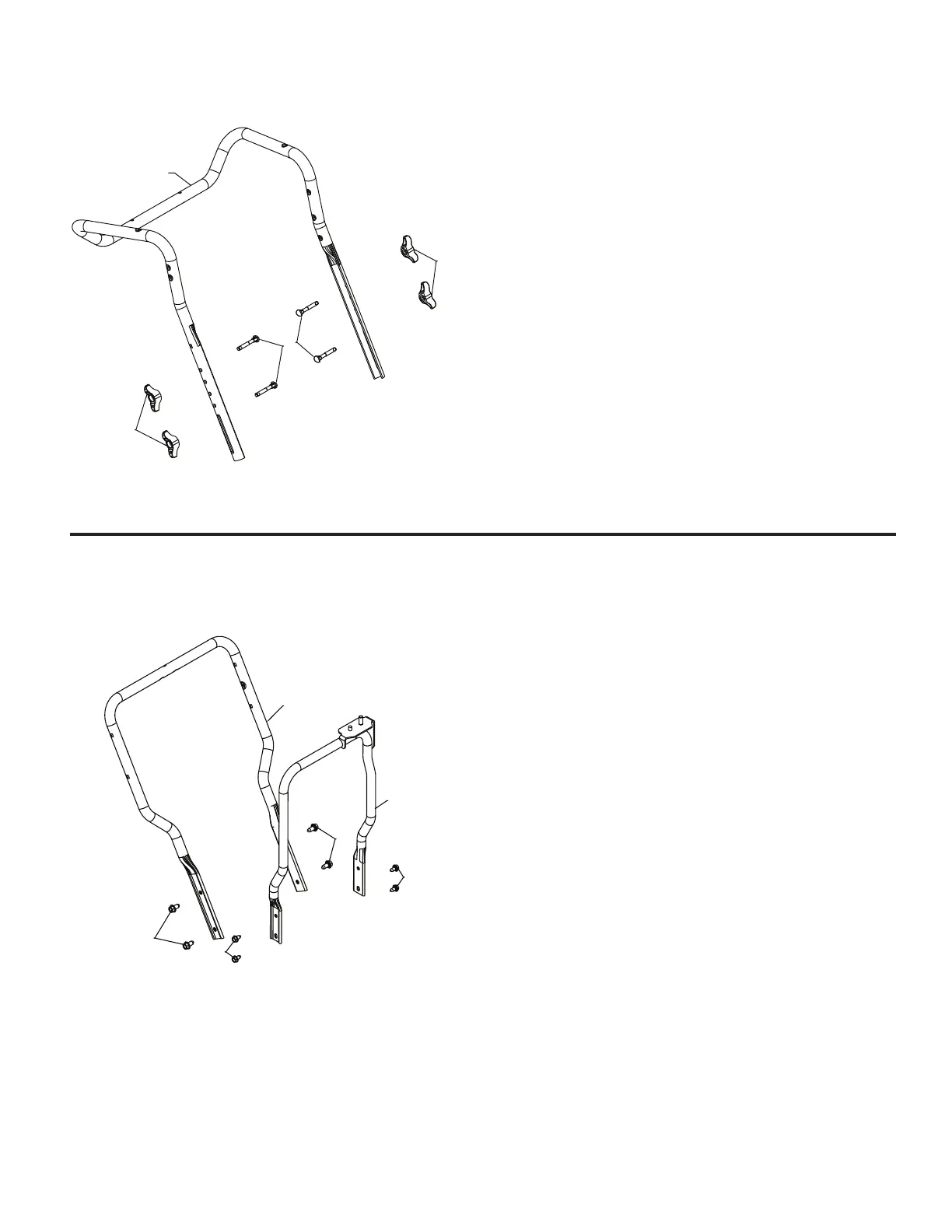

HANDLES
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
2
3
4
4
05.05.001-E
1 588 67 21-02 LOWER HANDLE
2 817 00 06-12 SCREW HEX WASH HD
3/8-16 X .75
3 581 62 20-02 CHUTE ROTATOR SUPPORT
ASM
4 817 00 05-10 BOLT HEX 5/16-18
KEY PART
NO. NO. DESCRIPTION
3
1
2
2
05.06.001-G
1 588 16 08-02 UPPER HANDLE
2 532 19 19-38 HANDLE KNOB STD BLACK
3 588 05 99-01 SCREW 5/16-18 X 2.25
CONCAVE HEAD WITH PATCH
To Next Page
