NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

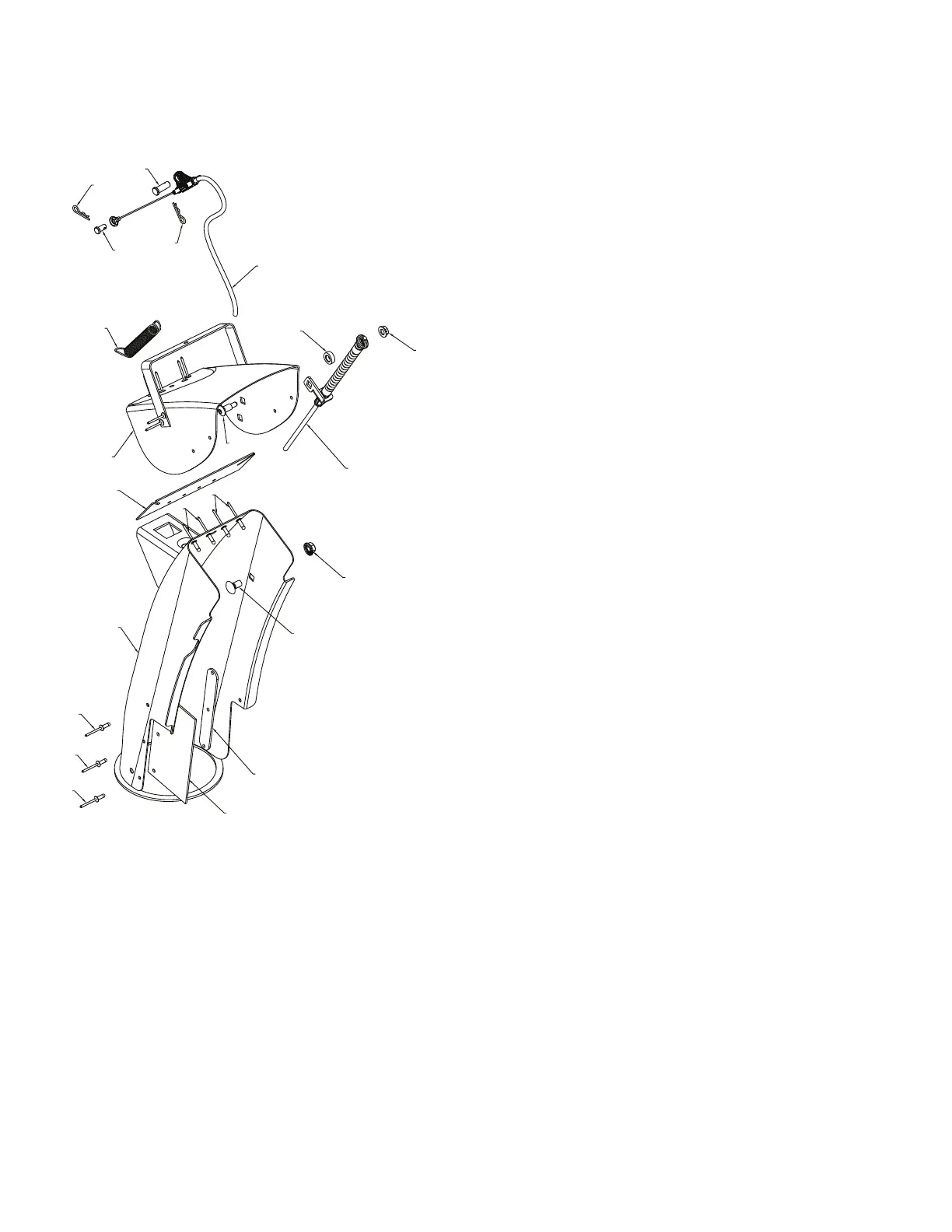

REPAIR PARTS SNOW THROWER - MODEL PR271 (96192009102)
CONTROL PANEL / DISCHARGE CHUTE
KEY PART
NO. NO. DESCRIPTION
1 588 07 78-03 CHUTE WELDMENT ASM.
(INCLUDES 1-6)
2 – – – – – – RIVETED DEFLECTOR ASM.
3 – – – – – – DEFLECTOR SEAL
4 – – – – – – POP RIVET
5 – – – – – – CHUTE SNOW SHIELD
6 – – – – – – SHIELD STRAP RETAINER
7 590 58 70-01 CONTROL CHUTE
DEFLECTOR BOWDEN
8 581 32 94-01 PIN CLEVIS 5/16 X .875
9 585 80 83-01 PIN CLEVIS 1/4 X .312
10 532 42 33-03 HAIRPIN RETAINER
*11 532 18 45-05 DEFLECTOR SPRING
*12 501 41 73-01 CARRIAGE BOLT 1/4-20 X .544
*13 585 69 14-01 NUT 1/4-20
*14 585 83 20-01 CARRIAGE BOLT 3/8-16 X .625
*15 873 97 05-00 NUT 5/16-18
*16 501 41 74-01 WASHER .362 X .625 X .205
NYLON
NOTE: ALL ITEMS MARKED WITH AN * ARE
PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE
WITH PRODUCT.
