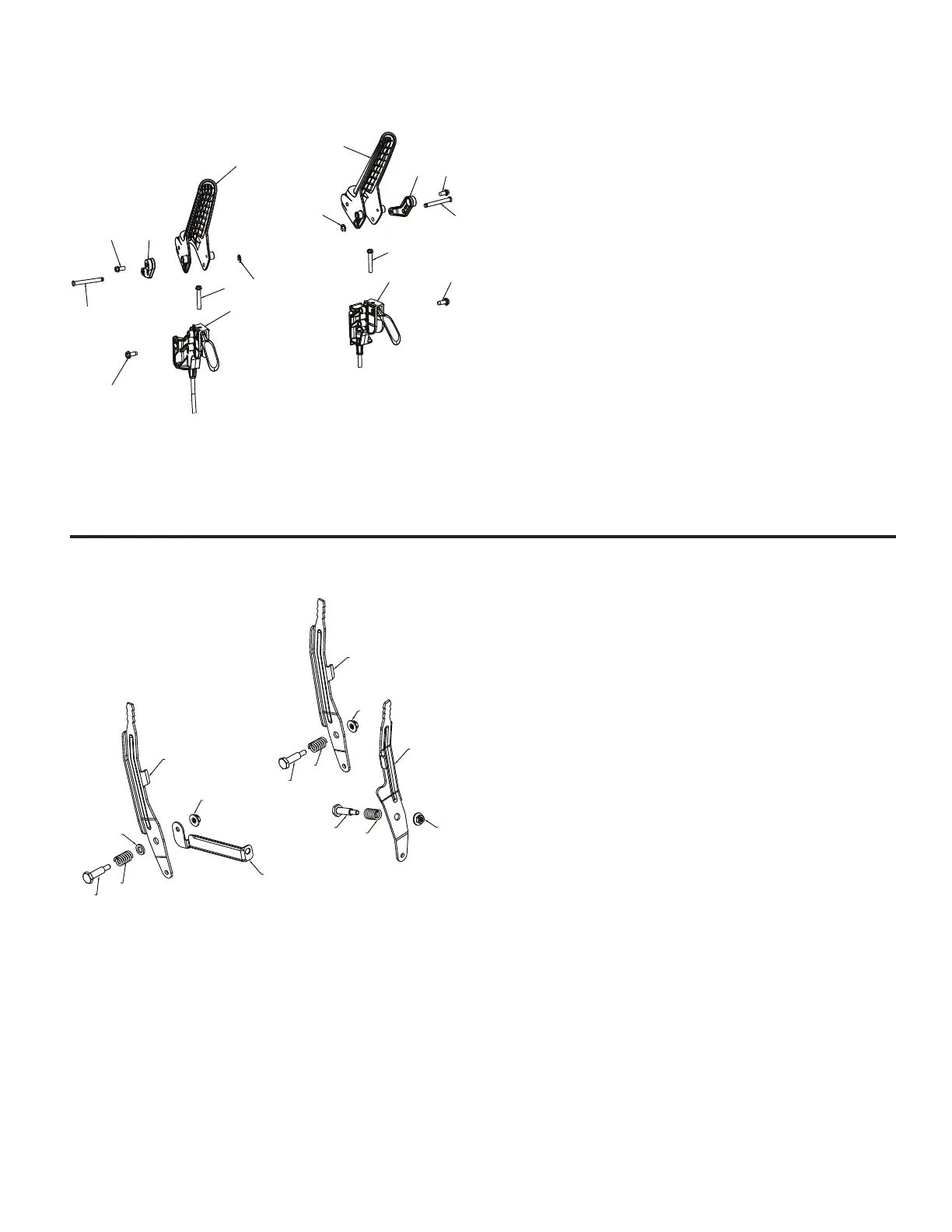

REPAIR PARTS SNOW THROWER - MODEL PR271 (96192009102)
CONTROL PANEL / DISCHARGE CHUTE
1
1
2
3
3
3
4
4
4
5
5
5
6
7
05.08.005-C
1 581 12 39-02 LEVER CONTROL SPEED/DEFL
2 581 24 16-02 LEVER CONTROL CHUTE ROT
3 581 32 97-01 BOLT SHOULDER 1/4-20
4 581 32 96-01 SPRING COMPRESSION
5 586 66 89-01 NUT FL LOCK 1/4-20
6 584 46 84-02 BRACE SUPPORT SPEED
7 587 03 13-01 WASHER .625 X .375 X .094
NYLON 6/6
KEY PART
NO. NO. DESCRIPTION
3
3
4
1
2
5
6
6
7
7
8
8
9
9
10
10
05.08.013-A
1 588 26 39-01 CABLE, POWER STEER - LHS
2 588 26 39-02 CABLE, POWER STEER - RHS
3 587 46 30-01 LEVER, CONTROL
4 587 73 97-01 LEVER, CABLE ARM - LHS
5 587 73 97-02 LEVER, CABLE ARM - RHS
6 581 32 95-01 SCREW HI-LO 13-16 X 1.50
7 817 06 04-10 SCREW 1/4-20 X .625
8 817 41 13-08 SCREW HI-LW 13-16 X .500
9 588 14 77-01 PIN, GROOVED
10 812 00 00-14 E-RING
