28
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - MODEL PR271 (96192009102)

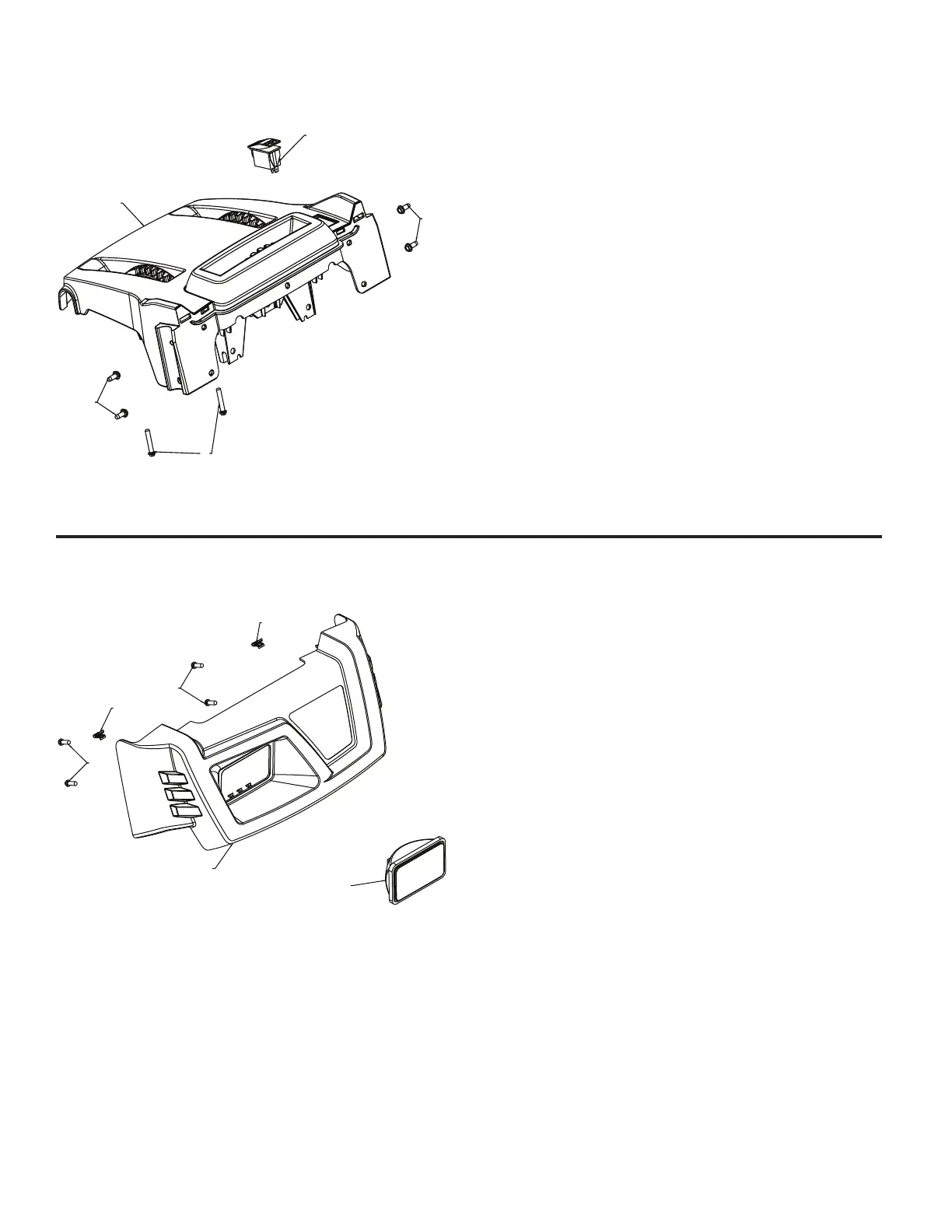

CONTROL PANEL / DISCHARGE CHUTE
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
3
3
4
4
05.07.008-E
1 586 18 10-01 FLOOD HEADLIGHT
2 581 12 81-03 CONSOLE COVER
POULAN PRO
3 532 19 41-89 SCREW HI-LO 13-16 X 5/8
4 581 92 87-01 PANEL CLIP
- - 532 18 37-84 BULB (NOT SHOWN)
05.07.009-A
1
2
3
3
4
1 581 13 12-03 CONSOLE BASE MULTICONT
W/SWITCH
2 585 80 50-01 SWITCH GRIP HEATED
BLACK
3 817 06 04-10 SCREW TA SEMI GIMLE
1/4-20 X .62
4 581 32 95-01 SCREW HEX WASHER
13-16 X 1.50
