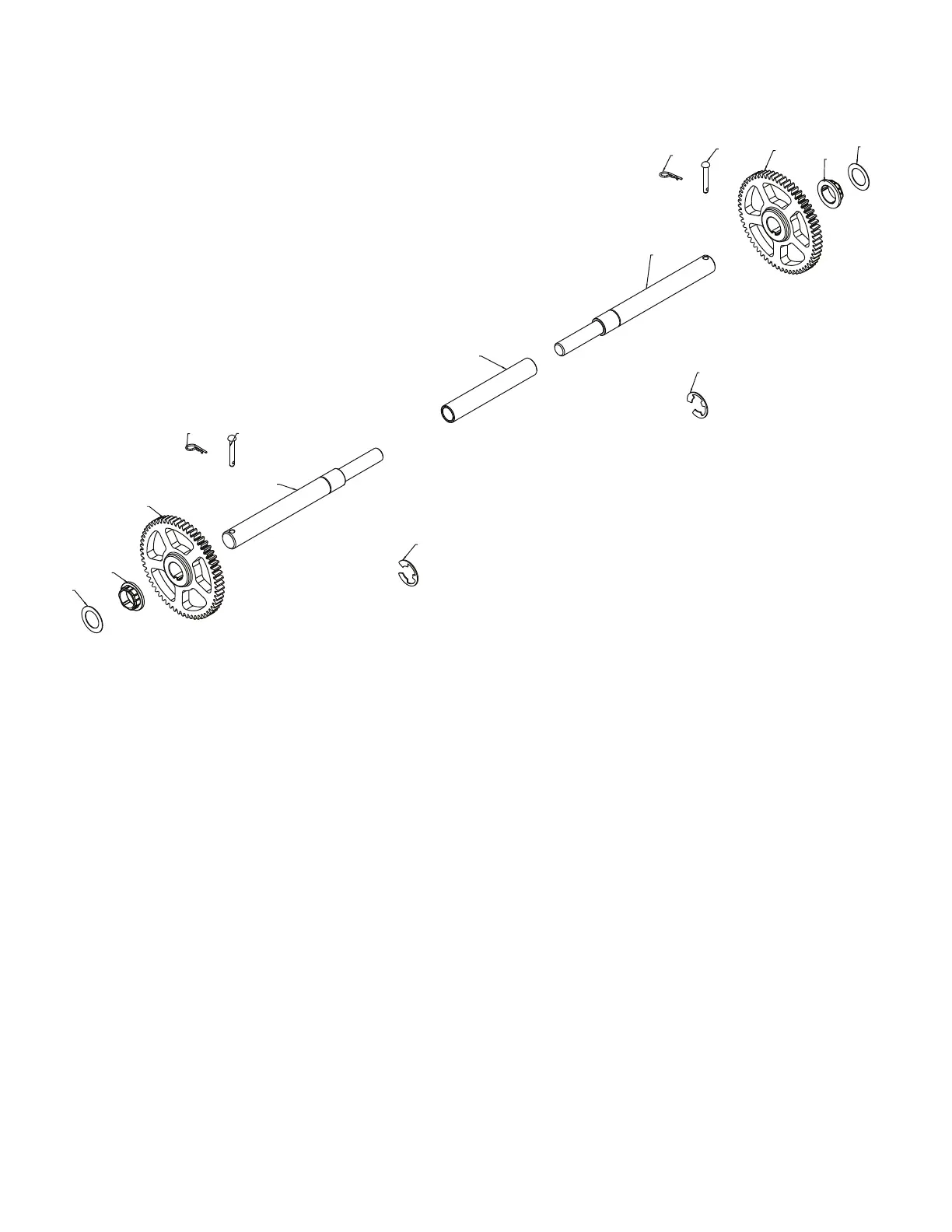

REPAIR PARTS SNOW THROWER - MODEL PR271 (96192009102)
DRIVE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
05.03.002-B
1 532 44 49-49 WASHER 1.00
2 587 97 89-01 BUSHING HEX 1 SHAFT
3 588 51 86-01 GEAR 59T DRIVEN
4 812 00 00-53 RETAINING RING
5 580 75 26-01 AXLE SHAFT SPLIT
6 532 12 47-88 RETAINER SPRING 1 ZINC
7 532 17 12-71 RIVET RD HD DRILLED 1/4 DIA
8 580 75 25-01 AXLE SLEEVE
