REPAIR PARTS SNOW THROWER - MODEL PR271 (96192009102)

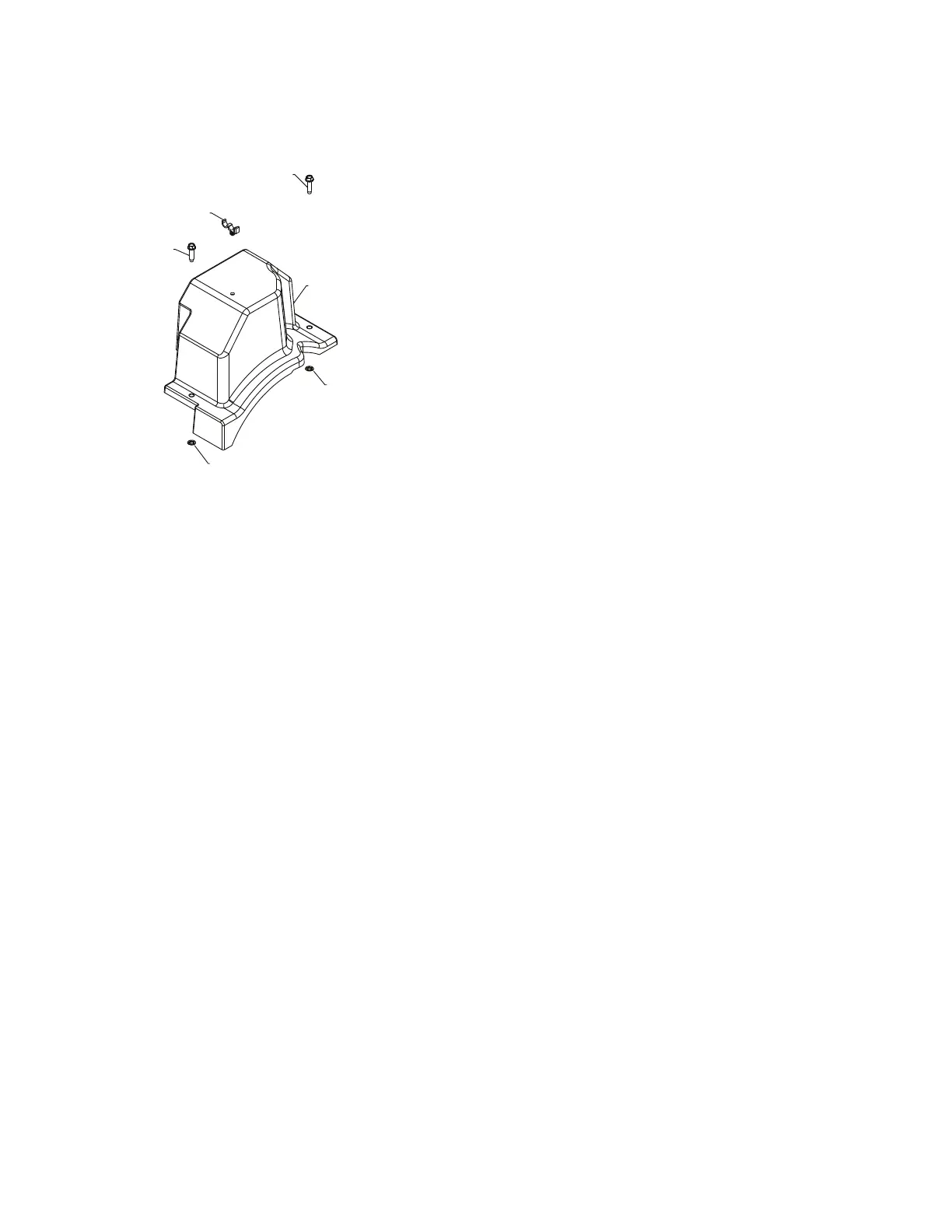

CHASSIS / ENGINE / PULLEYS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
2
2
3
4
4
05.04.002-B
1 587 10 54-01 BELT COVER BLACK
ASSEMBLY (INCLUDES 2 & 4)
2 - - - - - - - - - BOLT HEX WSH THDRL
1/4-20 X 1
3 532 14 50-06 CABLE GUIDE
4 - - - - - - - - - PALNUT 1/4 IN
