37

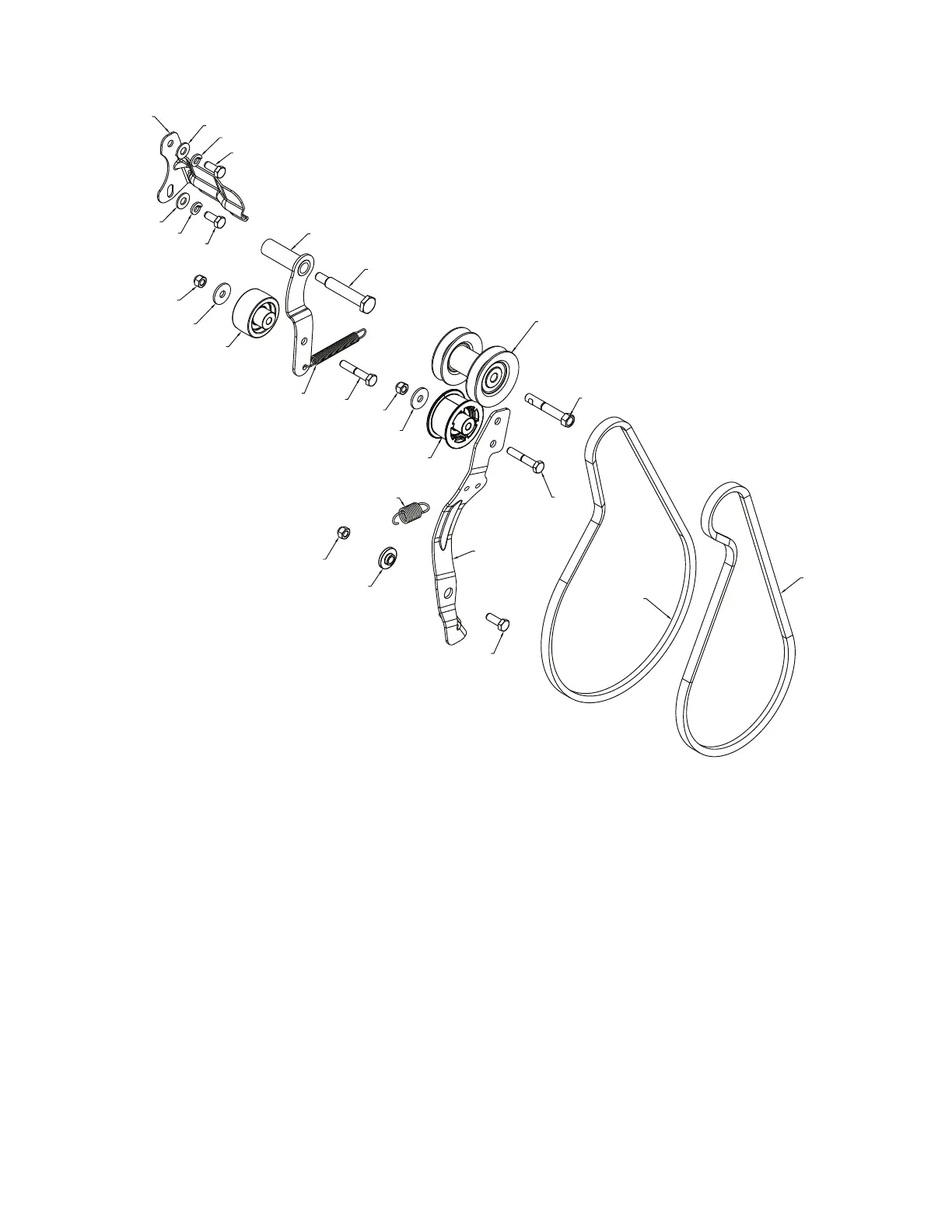

REPAIR PARTS SNOW THROWER - MODEL PR271 (96192009102)
CHASSIS / ENGINE / PULLEYS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
12
13
14
15
16
17
18
19
20
11
3
3
4
4
1
2
2
5
6
6
6
7
7
8
9
10
10
05.04.001-K
1 588 49 28-02 BELT KEEPER BRACKET
2 819 11 12-16 WASHER 11/32 X 3/4 X 16 GA
3 810 04 05-00 LOCKWASHER 5/16 SPLIT HVY
4 874 61 05-12 CAPSCREW HEXHD 5/16-24 X
.75 GR 5
5 581 33 82-03 IDLER ARM DRIVE WELDMENT
6 873 80 05-00 NUT NYLOCK 5/16-18
7 532 05 92-89 WASHER FLAT .328 X 1.00 X .097
8 581 14 14-01 IDLER PULLEY 2.0 W/SPACER
9 580 75 30-01 RETURN SPRING IDLER ARM
DRIVE
10 874 76 05-28 BOLT HEXHD 5/16-18 X 1.75
11 581 41 38-01 SHOULDER BOLT 5/16-24 X 2.15
12 587 89 37-03 PULLEY ASM ENGINE
13 582 38 84-01 BOLT HEXHD 3/8-24 X 2.375
14 580 83 11-06 ARM IDLER
15 587 03 12-01 RETURN SPRING IDLER ARM
16 587 34 37-01 BUSHING IDLER PIVOT
17 874 76 05-14 BOLT HEXHD 5/16-18 X .875
18 584 21 61-02 DRIVE BELT 4L X 38.2
19 501 81 82-01 IMPELLER BELT
20 586 88 02-01 IDLER PULLEY 2.0 FLANGE
LESS W/SPACER
To Next Page
