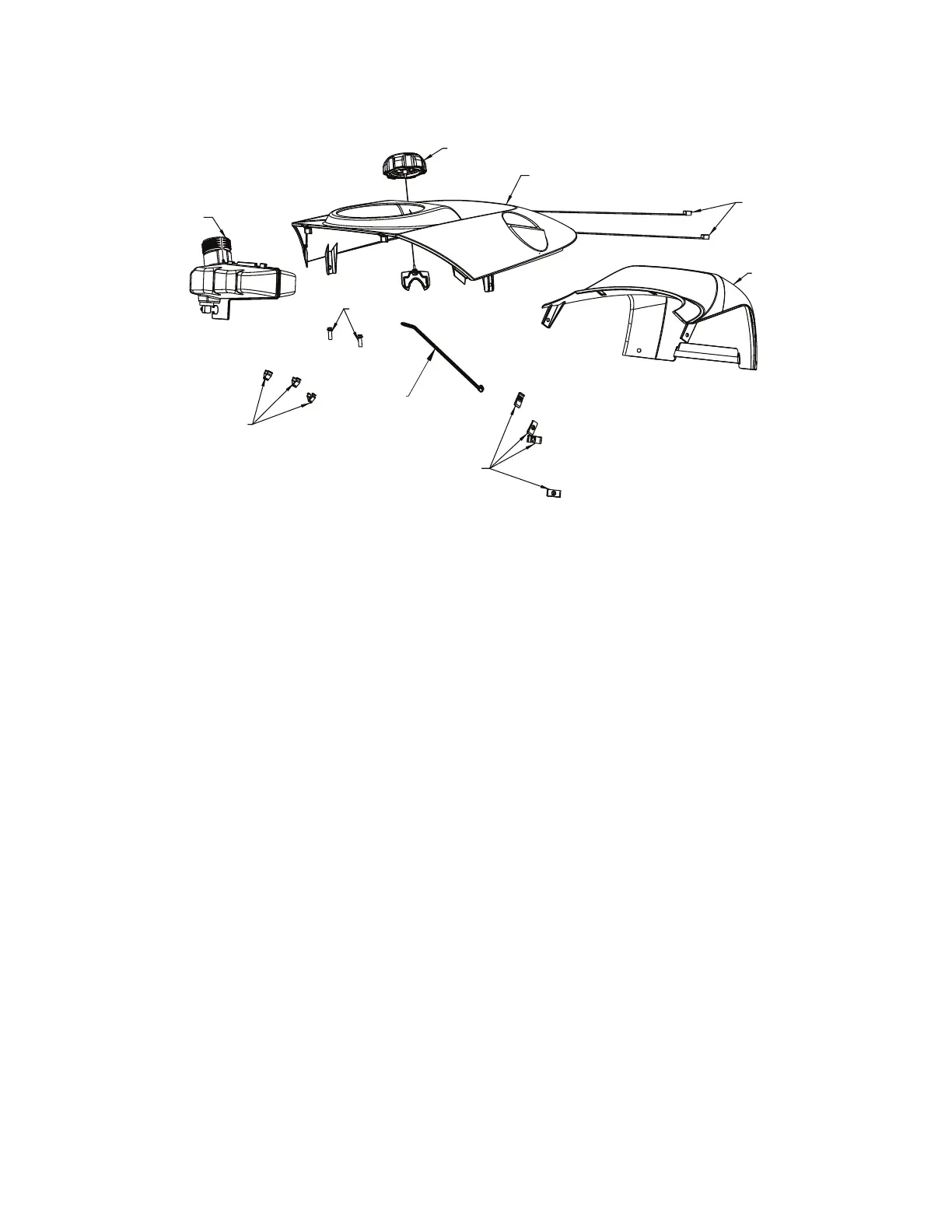

REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR621 (96182000303)
SHROUD ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
06.04.013-C
1
2
3
4
5
6
7
8
9
1 532 44 39-26 TOP COVER
2 532 43 76-48 REAR UPPER COVER
3 817 41 13-12 BOLT 13-16 X .75
4 532 19 66-88 THREADED CLIP
5 532 43 48-68 TRIM CLIP
6 580 98 26-01 FUEL TANK ASSEMBLY
7 532 14 68-48 CABLE TIE
8 581 07 55-01 FUEL CAP/GASKET
9 532 44 46-49 P-CLIP
