26
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR621 (96182000303)

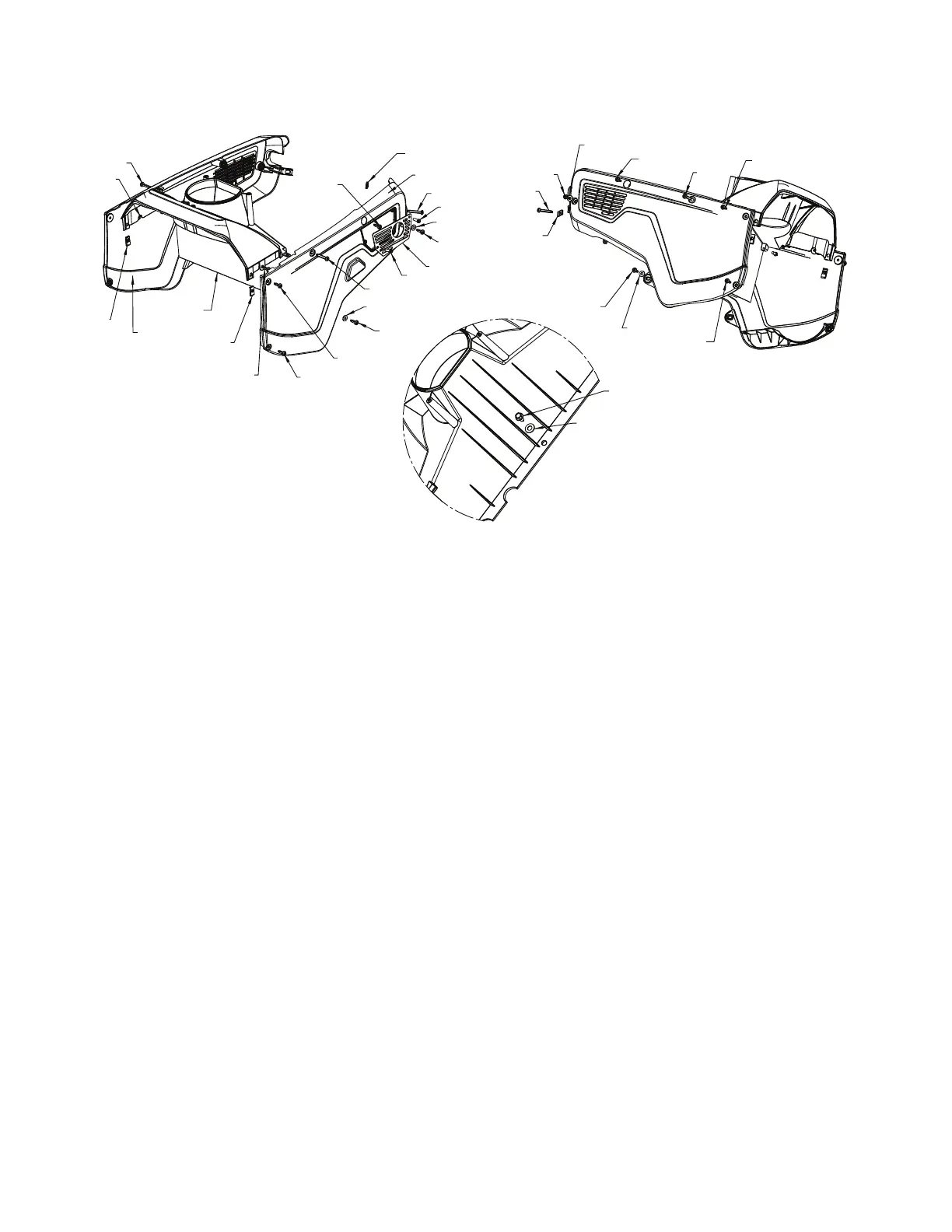

SHROUD ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
10
11
11
11
11
1
2
3
4
5
6
6
6
7
7
7
7
9
9
9
9
8
8
8
8
8
8
8
8
8
8
8
06.04.004-A
1 532 44 39-21 PLENUM
2 532 44 39-24 NON – DRIVE COVER
3 532 44 39-25 DRIVE COVER SIDE
4 819 13 13-16 WASHER 13/32 X 13/16 GA
5 532 42 88-67 BOLT 5/16-18 X .75
6 817 41 13-12 BOLT 13-16 X .75
7 532 19 66-88 THREADED CLIP
8 532 44 22-50 SCREW 1/4-20 X .75
9 532 44 42-62 SCREW 1/4-20 X 1.5
10 580 83 35-01 EXHAUST PLATE
11 819 09 10-16 WASHER FLAT 1/4 SAE
