Powakaddy C2 Replacement Instructions

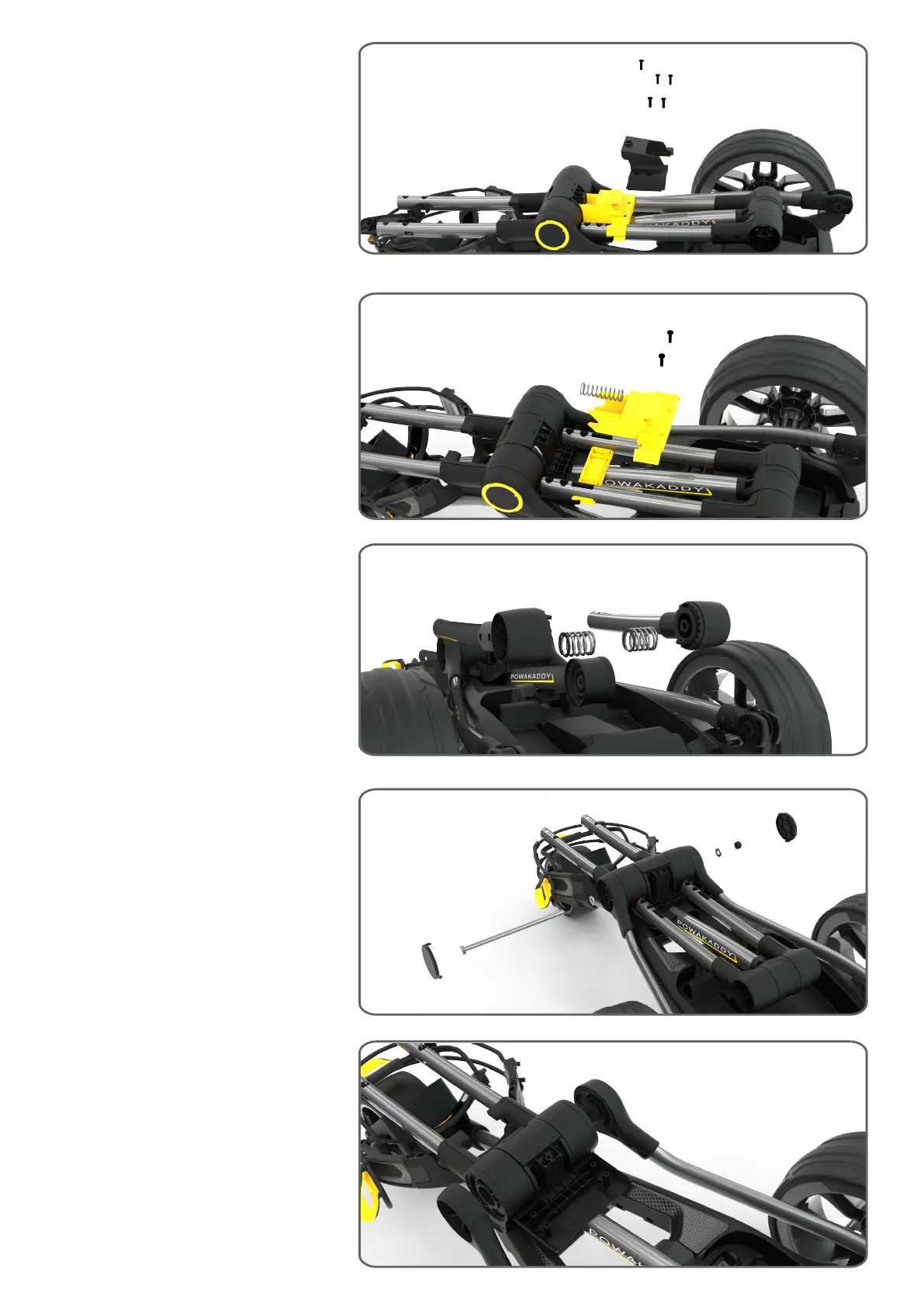

Step 6
Prise away the caps on the top
joint using a flat head screwdriver
or similar. Undo the M8x170mm
hex bolt and remove. Place to one
side with the two washers and M5
nyloc nut.
Step 5
Now lift away the two middle
tubes and springs from the cam
lock joint. Place to one side.
Step 4
Remove the two 4x14 pozi screws
securing the yellow button. Place
all parts to one side.
Step 3
Remove the five 4x14 pozi screws
securing the main hinge hub lower
and place to one side.
Step 7
Release the upper joint by gently
spreading the rear legs.

Powakaddy C2 Specifications

General

Display	LCD
Foldable	Yes
Type	Electric
Battery	Lithium
Material	Aluminium
Weight (without battery)	9.8kg
Folded Dimensions Alt	44.5cm x 38.5cm x 55.5cm
