DIMENSIONS AND WEIGHT
Frame 2

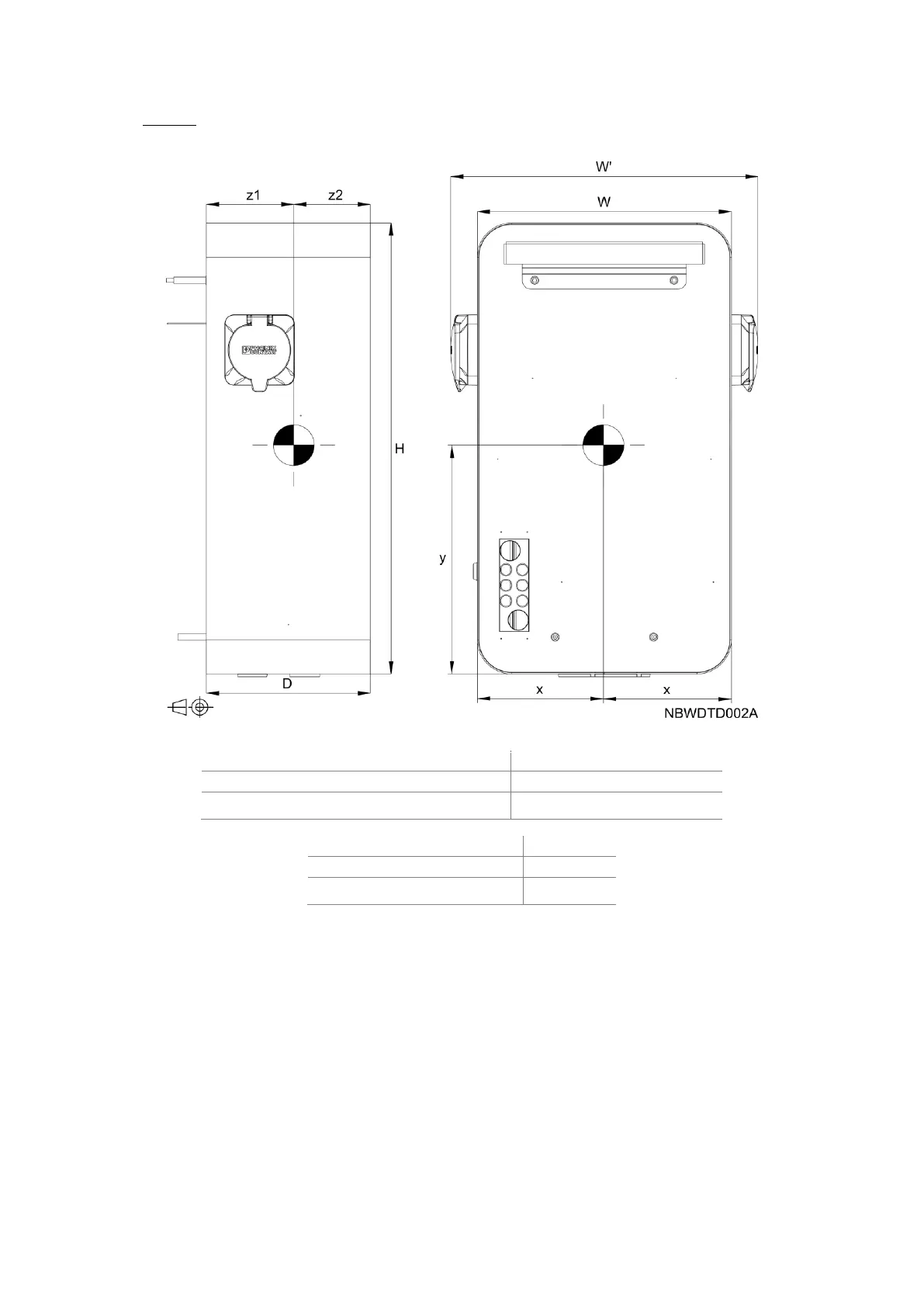

GENERAL DIMENSIONS [mm]
SPECIFIC DIMENSIONS [mm]
HEIGHT (H)
WIDTH (W)
DEPTH (D)
EXTRA WIDTH (W’)
550
310
200
374,9
CENTER OF GRAVITY [mm]
WEIGHT [kg]
x
y
z1
z2
Frame 2
155
279
106,6
93,4
10,8
Note: the weight indicated is without hose and its connector.
