Power Measurement 7330 ION User Manual

 -3297)67+9-()

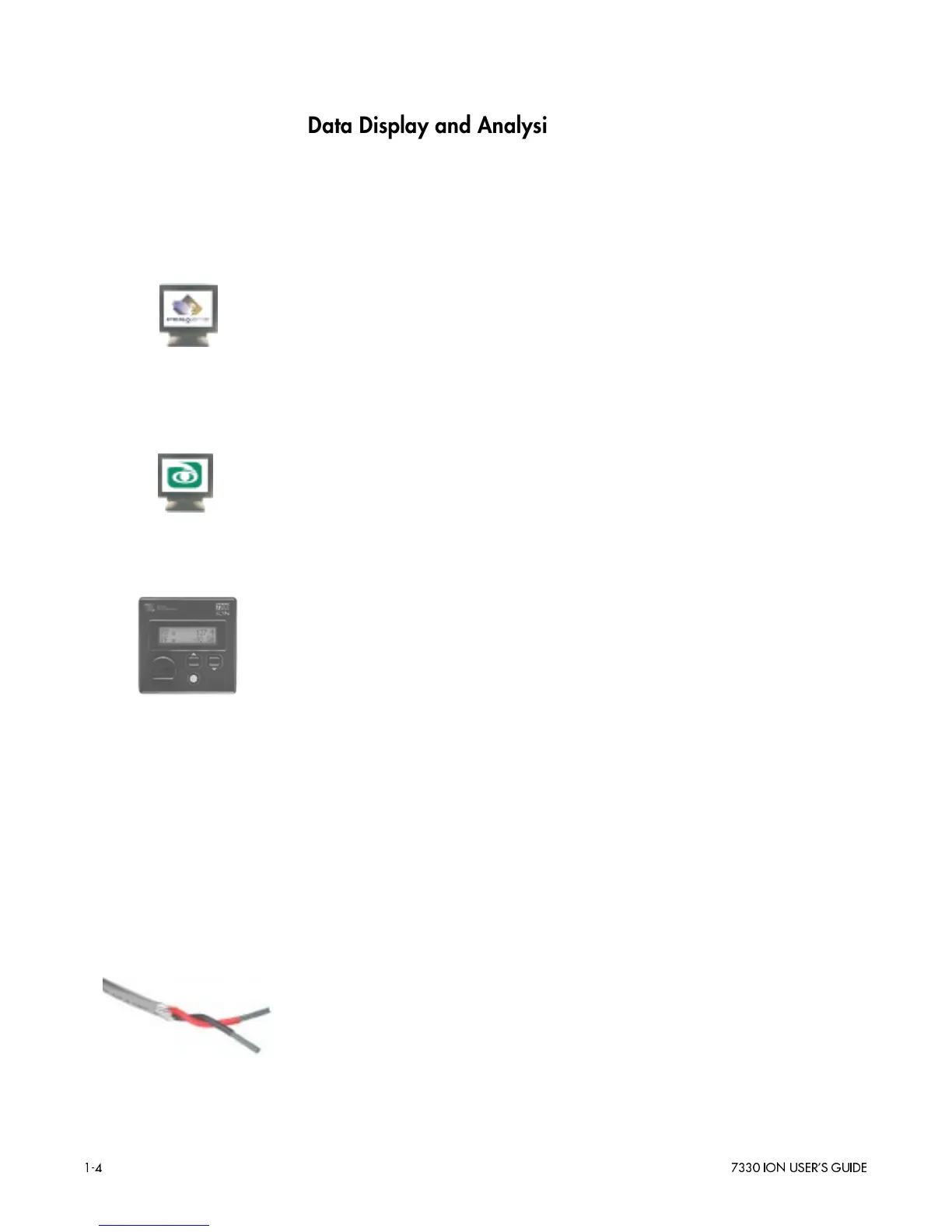

(EXE(MWTPE]ERH%REP]WMW8SSPW
The 7330 ION integrates seamlessly with the display and analysis software
available from Power Measurement. The data acquired by the 7330 ION can be
used in a variety of systems; however, Power Measurement software is
designed to make use of the advanced capabilities the unit provides.
4S[IV1IEWYVIQIRXW4)+%7=77SJX[EVI
You will get the most out of the 7330 ION using Power Measurement’s
PEGASYS software suite. When PEGASYS is used, the 7330 ION becomes part
of a fully networked information system, together with other Power
Measurement IEDs and local and wide-area computer networks. PEGASYS
provides tools for power monitoring, analyzing real-time data, generating
power system reports, and creating custom functionality at the IED level.
PEGASYS is recommended for all power monitoring systems where advanced
analysis and control capabilities are required.
4S[IV1IEWYVIQIRXW4S[IV:MI[7SJX[EVI
The 7330 ION can be installed in power monitoring systems that use Power
Measurement’s PowerView software. PowerView provides real-time display
and analysis features, and complete device configuration capabilities.
PowerView provides a low-cost solution for smaller power system where the
advanced features of PEGASYS are not required.
8LI-32W6IQSXI1SHYPEV(MWTPE]
The Remote Modular Display can be added to an existing 7330 ION-TRAN
model to facilitate local monitoring and standalone applications. The 7330
ION Basic Model provides an integrated front panel display.
Both the front panel and RMD combine real-time display features with
limited device configuration functions. When used in combination with a
PEGASYS or PowerView system, the display provides an interface for field
personnel.
8LMVH4EVX]8SSPW
The 7330 ION can be integrated into various industry-standard networks. Data
that is measured by the unit can be made available to other devices using
Modbus or DNP 3.0 protocols. Data from devices on these networks can also be
imported into the 7330 ION. With these advanced communications functions,
the power of the 7330 ION can be utilized in most existing power monitoring
systems. Any data display and analysis software that works with Modbus or
DNP devices will also work with the 7330 ION.
-33TXM SRW
Four optically isolated digital inputs and four digital outputs are available on
the 7330 ION. Up to four digital input or four digital output modules can be
added. Refer to the section “Using Onboard I/O and the Extension Board” in
Chapter 4 for details.
