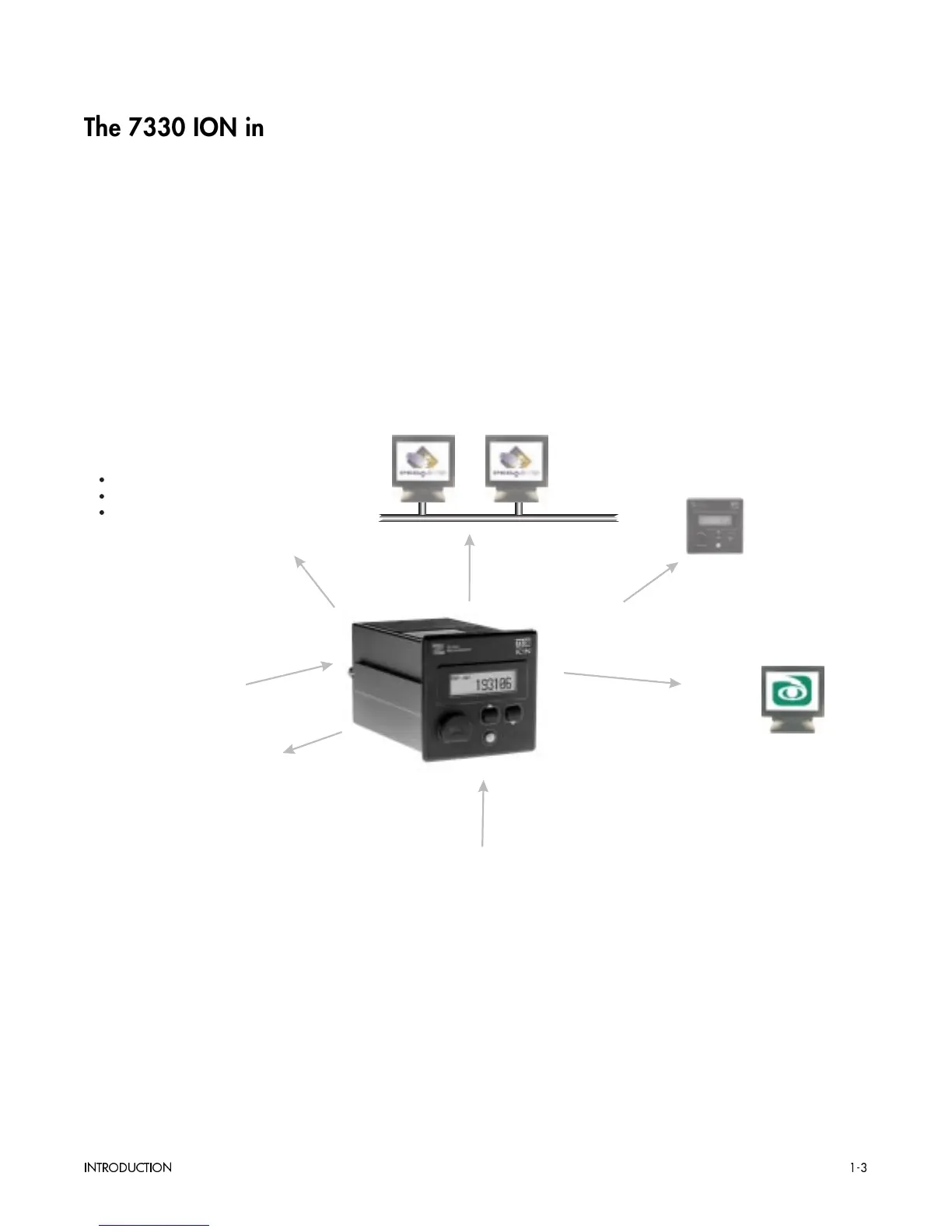

Applications that include the 7330 ION, or any other IED, typically require
additional equipment. Display and analysis software tools are almost always
used to manage, interpret and distribute the data measured or logged by an
IED. Usually there are a variety of tools used, and often these tools are
connected using different communications standards and protocols. In many
cases, an IED must also provide control capabilities and device-level data
sharing.
The 7330 ION can adapt to many situations. Advanced communications allow
data to be shared simultaneously across multiple networks, digital outputs
provide control capabilities, and a variety of display and analysis tools can be
used to monitor your power system. This manual discusses the 7330 ION as it
is most commonly used — as a part of a complete power monitoring system.
PowerView
software
Inputs/Outputs
Power System Connections
Display and
Analysis Tools
Real-time measurements,
energy pulses, control signals
Pulser, breaker closures,
digital signals
phase voltage and phase current
from Wye, Delta or single-phase
power systems
distributed
PEGASYS
software
components
corporate network
Communications Options
RS-485
Infrared communications port
ION, Modbus RTU, and DNP3.0
protocols
RMD Unit
(for TRAN models)
