D. Power Supply Connections and System Start Up

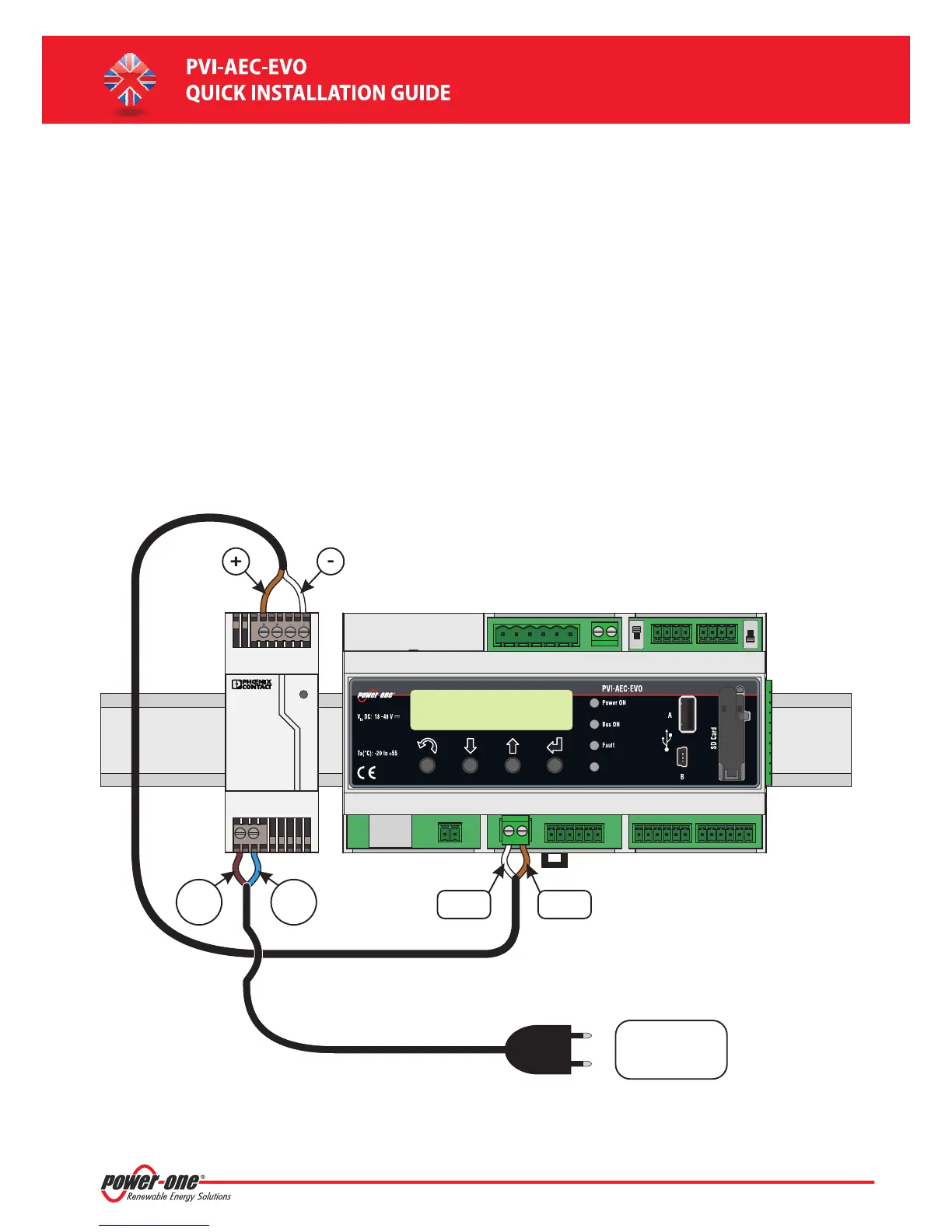

1. Connect the power supply to the power supply network (110/230V 50/60Hz): the "Power" led on the power
supply will light up steadily.Check that the output voltage of the power supply is 24Vdc.Disconnect the power
supplyfromthepowersupply network.
2. Connect the output of the powersupply to the power supply terminal block of the PVI-AEC-EVO respecting the
polarity and using thewiring provided.
3. Connect the power supply to the power supply network:After a first starting phase (lasting about 30 seconds)
during which the system is not able to receive any input from the user,the green "PowerOn" led will remain lit.
The message“PVI-AEC-EVO...." (in the first of the two lines) and date/time (in the second of the two lines) will
bedisplayed.
DC
OK
STEP POWER
L(+) N(-)
Input AC
100-240V
--++
Output DC
24V 0.75A
+Vcc-Vcc
L(+) N(-)
50-60 Hz
100-240 V~
12
