Power One PVI-AEC-EVO User Manual

Monitoring System
4-EN
J18
BATTERY IN
1) + Batt.
2) - Batt.
J7
LAN
IEEE802.3u
J8
Vin DC
1) + Vcc
2) - Vcc
J3
ANALOG INPUT
PT100/1000
1) PT_ALIM
2) PT_SENSE
3) PT_RTN
4) AIn_RTN
5) AIn 1
6) AIn 2
J20
DIGITAL I/O
1) RTN 1
2) RTN 1
3) DO_PWM 2
4) DO_PWM 1
5) DIn 1
6) DIn_RTN
J4
DIGITAL I/O
1) DIn 2
2) DIn 3
3) DIn 4
4) DIn_RTN
5) DIn 5
6) DIn 6
11122
3
4
5
6
123456 1234562
123456
12
3
4
1234
J12
GROUND
J17
RS485/1
1) RTN
2) - T/R
3) +T/R
4) +5V
J5
RELAY
1) RELAY 1
2) RELAY 1_RTN
3)
4)
5)
6)
RELAY 2
RELAY 2_RTN
RELAY 3
RELAY 3_RTN
J15
RS485/2
1) RTN
2) - T/R
3) +T/R
4) +5V
S2
120
RS485/1
Ω TERM.
S1
120
RS485/2
Ω TERM.
J9
EXPANSION
BUS
NOTE:
Only for dedicated
accessory
PVI-BATTERY-PACK
INPUT DC:
24 V DC 0,3 A
NOTE:
Use the provided
power supply

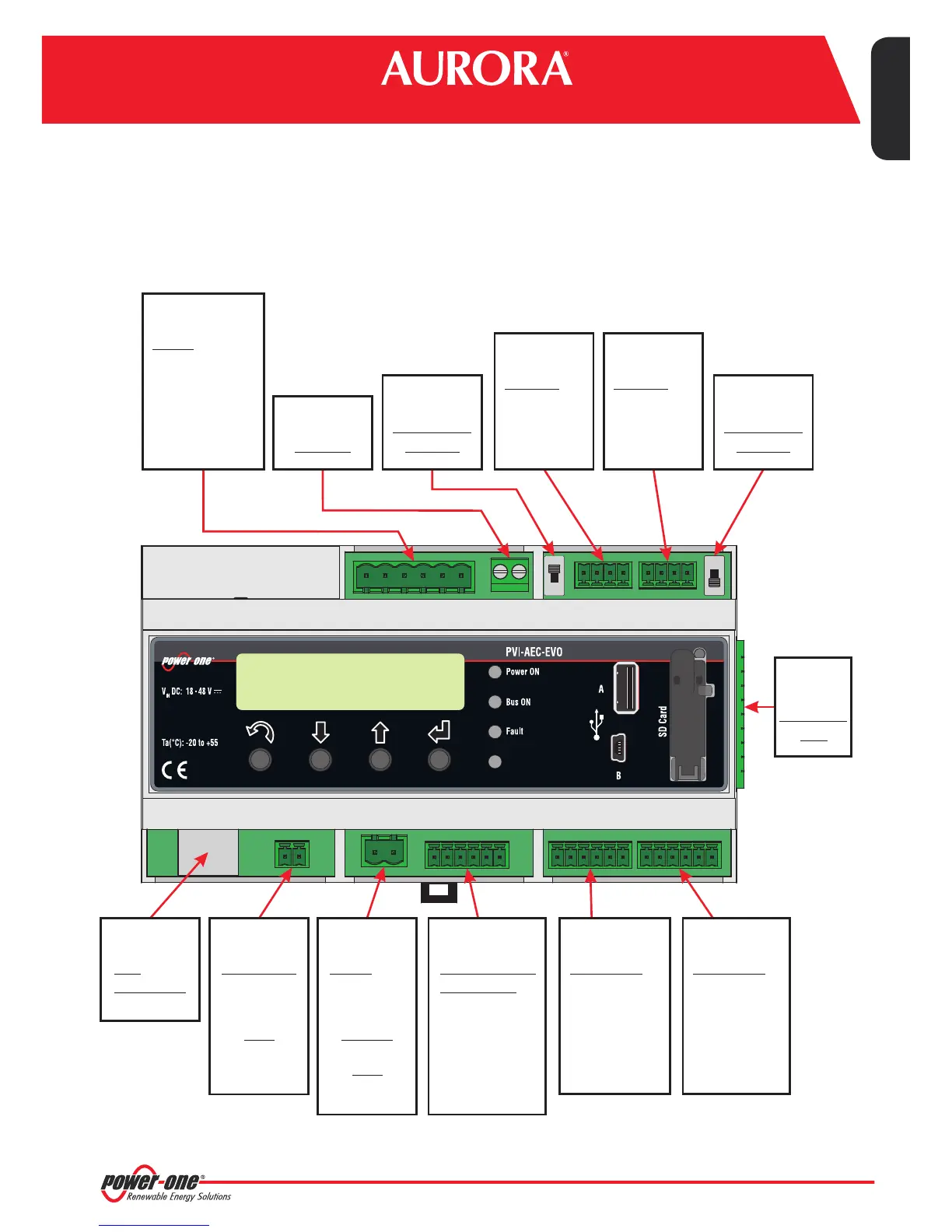

C. Pin-Out of System Connectors
Thediagrambelowshowsthepin-outoftheconnectorswhichallowthesystemconnection.
EN - ENGLISH
