11

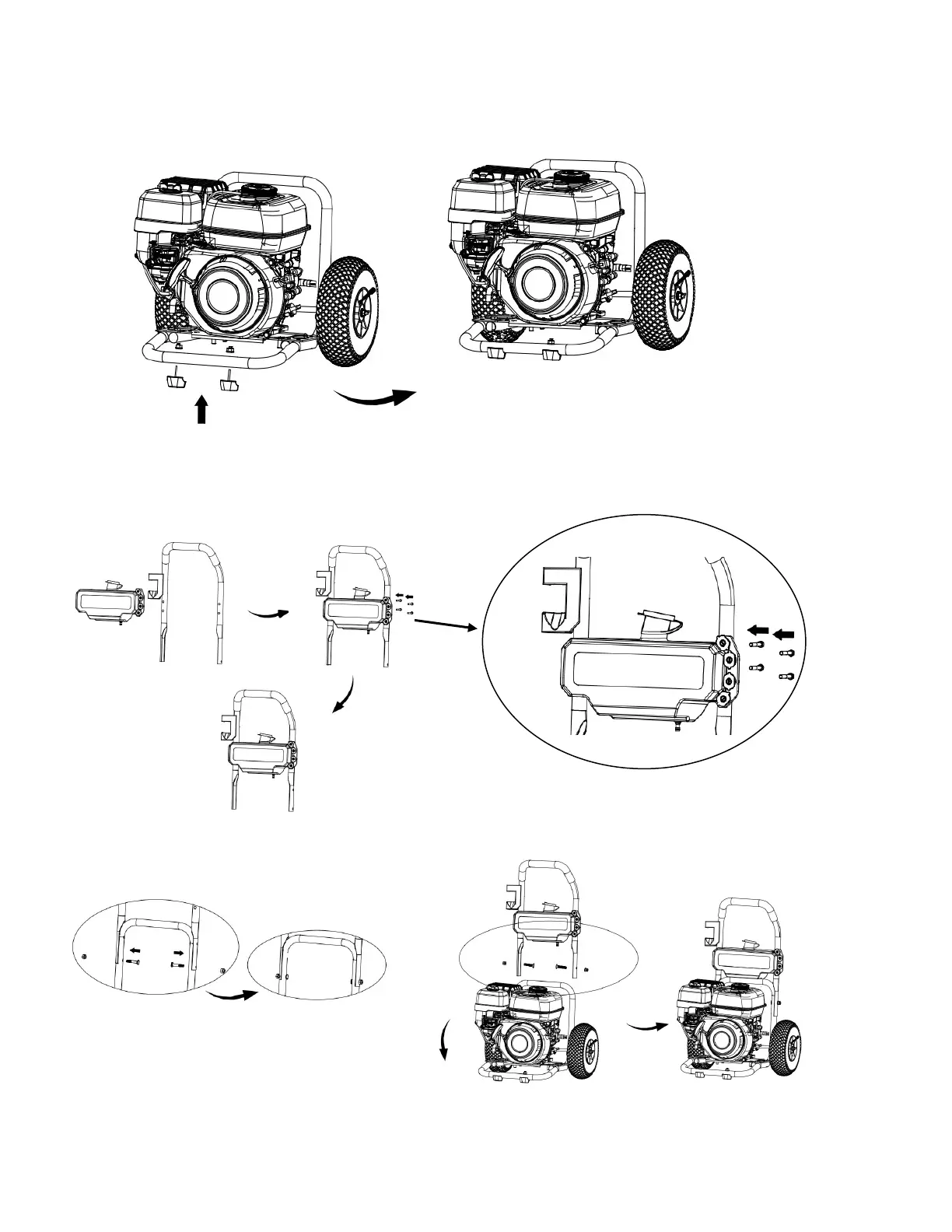

INSTALL SUPPORT FEET
Thread the bolt through the hole of the support foot and the lower pipe, and lock the nut.
INSTALLING UPPER HANDLE
1.Aligning the soap bottle with the mounting hole of the upper handle, lock the four bolts(M6x28).
2. After installing the upper handle assembly, install the bolts(M8x40). Put the bolts through the two
holes of the handle, and then lock the nuts.
