4. Cut and remove all tie wraps that are on Cables, Frame Handles, Drive Control (Lever) & Auger
Control (Lever).

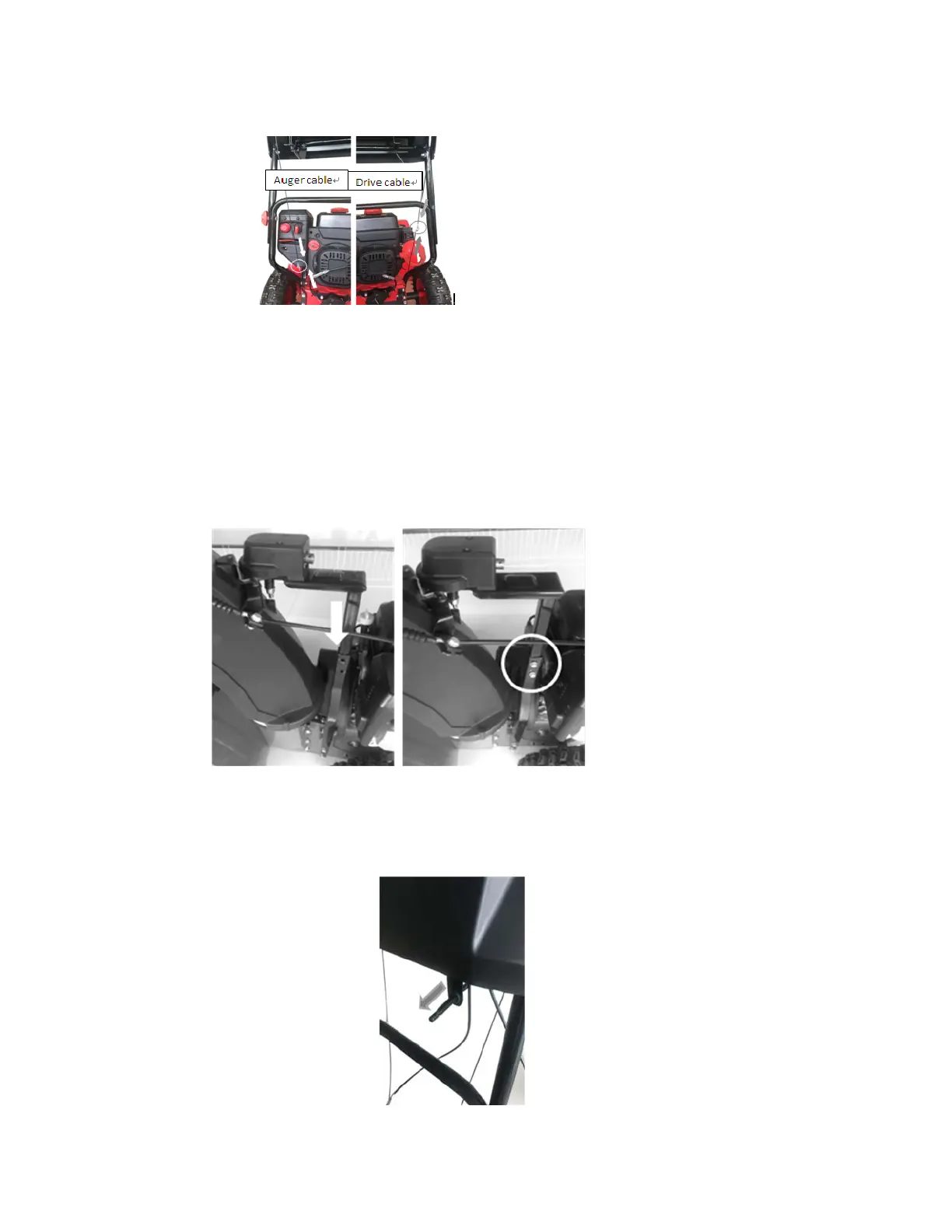

5. Verify that the connection for the Upper & Lower Drive/Auger Cables is accurate. (See Figure 2)
Figure 2
Step 2: Installing the Chute Assembly
1. When installing the Chute Assembly, please note that the Chute Deflector Cable will be pre-attached
to the Upper Handle.
2. Insert Lower Discharge Chute/Support Tube Assembly into the designated Chute opening for the
Lower Discharge Chute, while inserting the Support Tube into the designated base of the Frame. (See
Figure 3).
3. Secure Support Tube to base with (Qty. 2) Screws and nuts provided.
Figure 3
Step 3: Installing the Chute Handle
1. Slide Chute Handle through Chute Handle Guide near the Upper Panel, as indicated on Figure 4.
Figure 4
