RESISTANCE CHART
KW 8 MARKS COLOR
MAIN STATOR 0.257 U1-V1 or U2-V2 B-B
MAIN ROTOR 83.1 *** ---
AUX. WINDING 2.64 AW Y-Y
BATT. CHARGE 0.159 CH W W-W
SENSING WINDING 0.085 *** BLUE / BROWN
NOTE: THESE READINGS WILL VARY DEPENDING ON AMBIENT TEMPERATURE
POWER TECHNOLOGY SOUTHEAST, INC.
634 STATE ROAD 44
LEESBURG, FL 34748-8103
(352) 365-2777 FAX (352) 787-5545

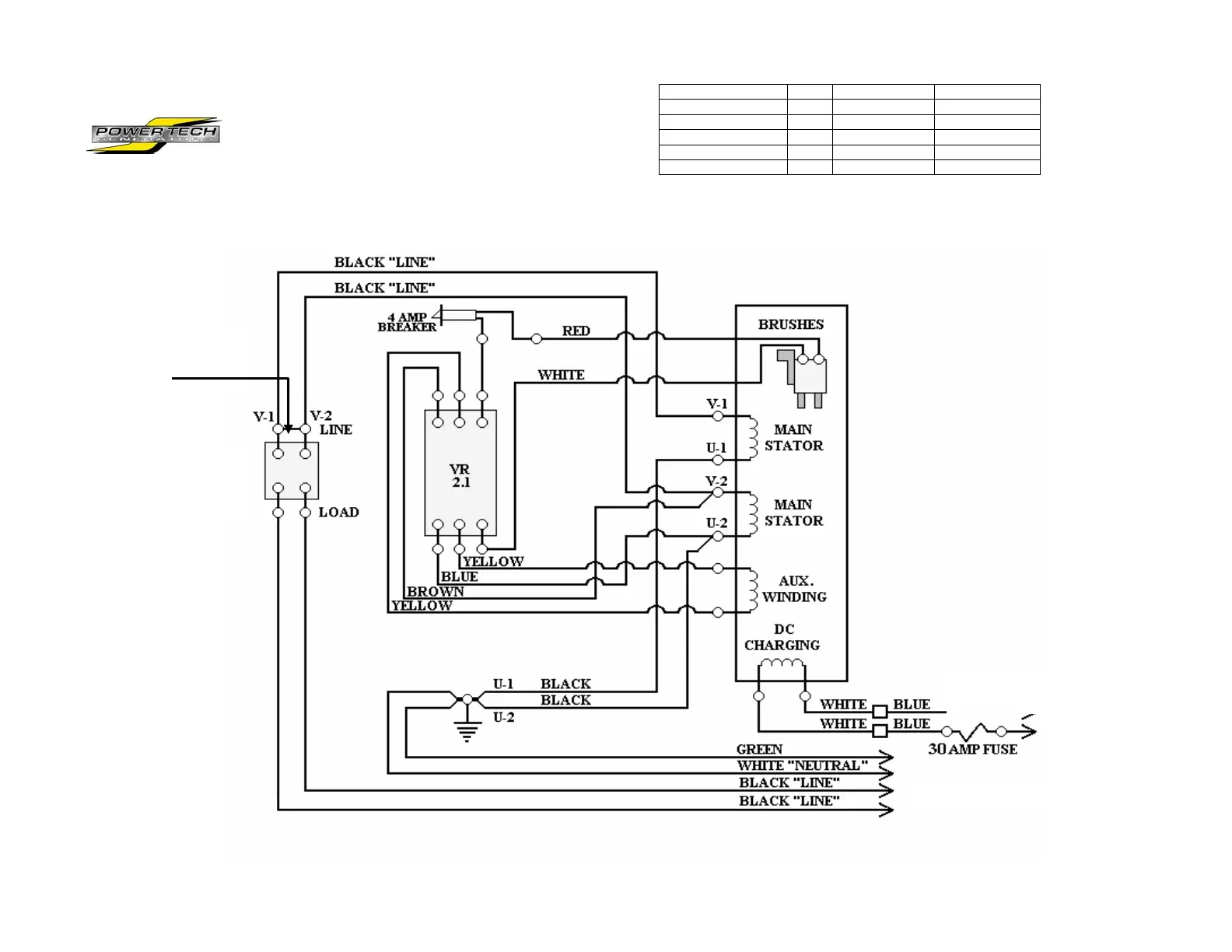

AC ELECTRICAL CIRCUIT FOR 8KW “C” GENERATORS 120 VOLTS LINE TO NEUTRAL
GENERATOR OUTPUT LEADS
OPTIONAL 12V DC
CHARGING RECTIFIER
2 POLE CIRCUIT BREAKER
35 AMP for 8 KW
12
#12
JUMPER
WIRE
To Next Page
