Power World PHP12Hs-W - Bypass Adjustment

- 7 -

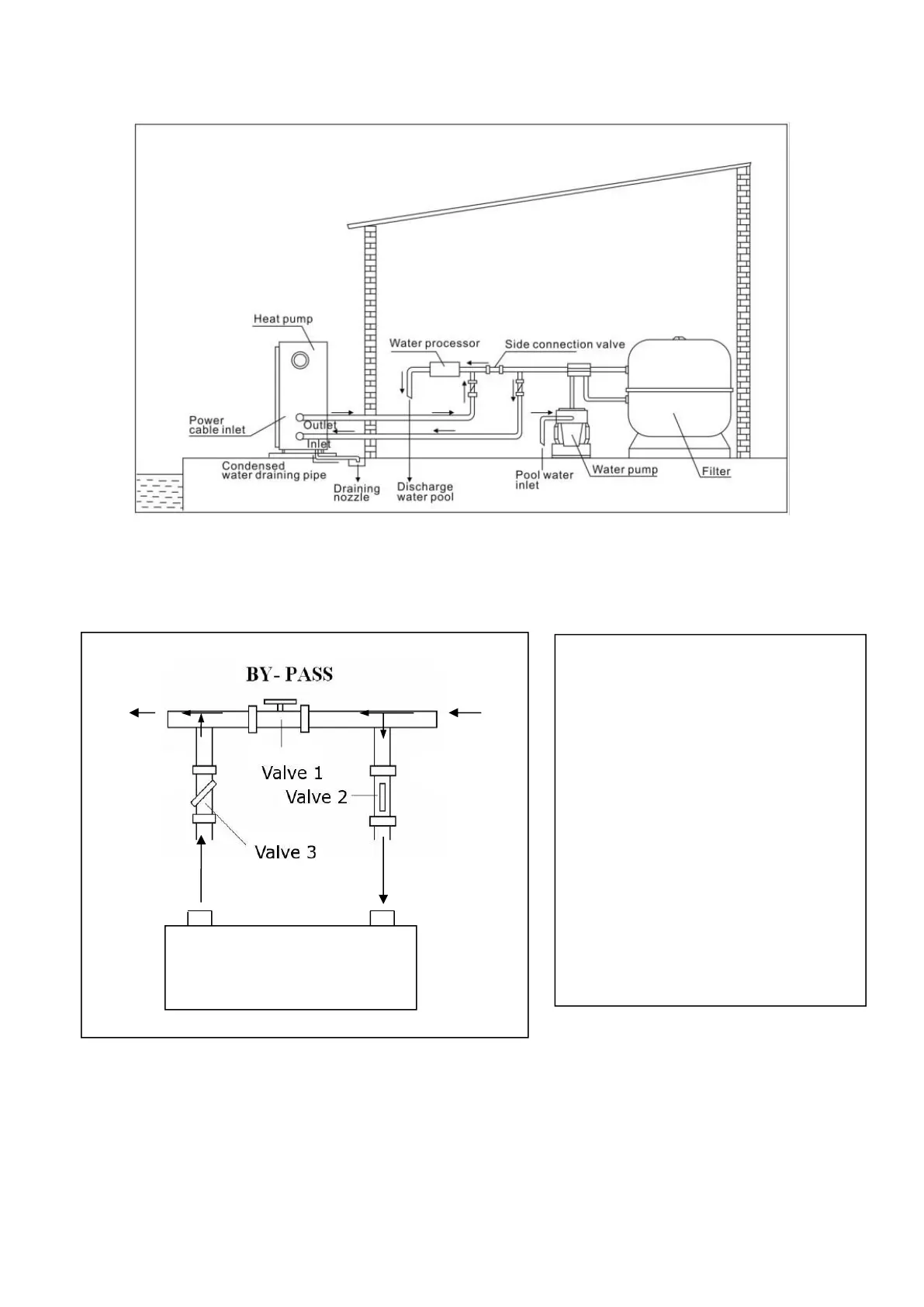

3.5 Typical arrangement
Note: This arrangement is only an illustrative example.
3.6 Adjusting the bypass
Optimal operation of the heat pump occurs when the cooling gas pressure is 22 2 bar.
This pressure can be read on the pressure gauge next to the control heat pump panel. Under
these conditions the water flow through the unit is also optimal.
Note: Operation without a bypass or with improper bypass adjustment may result in
sub-optimal heat pump operation and possibly damage to the heat pump, which
renders the warranty null and void.
Out In
Heat Pump
Use the following procedure to adjust
the bypass:
 fully open all three valves
 slowly close valve 1 until the
water pressure is increased by
approximately 100 to 200 g
 Close valve 3 approximately
half-way to adjust the gas
pressure in the cooling system
 If the display shows "ON" or
error code EE3, close valve
2 step by step, to increase
water flow and stop when
the code disappears.
To pool
From pool
