PowerBase 577136 - Assembly

16
3
7
10
12
Step 1 – Assembling handles
Step 2 – Assembling the grass collection box

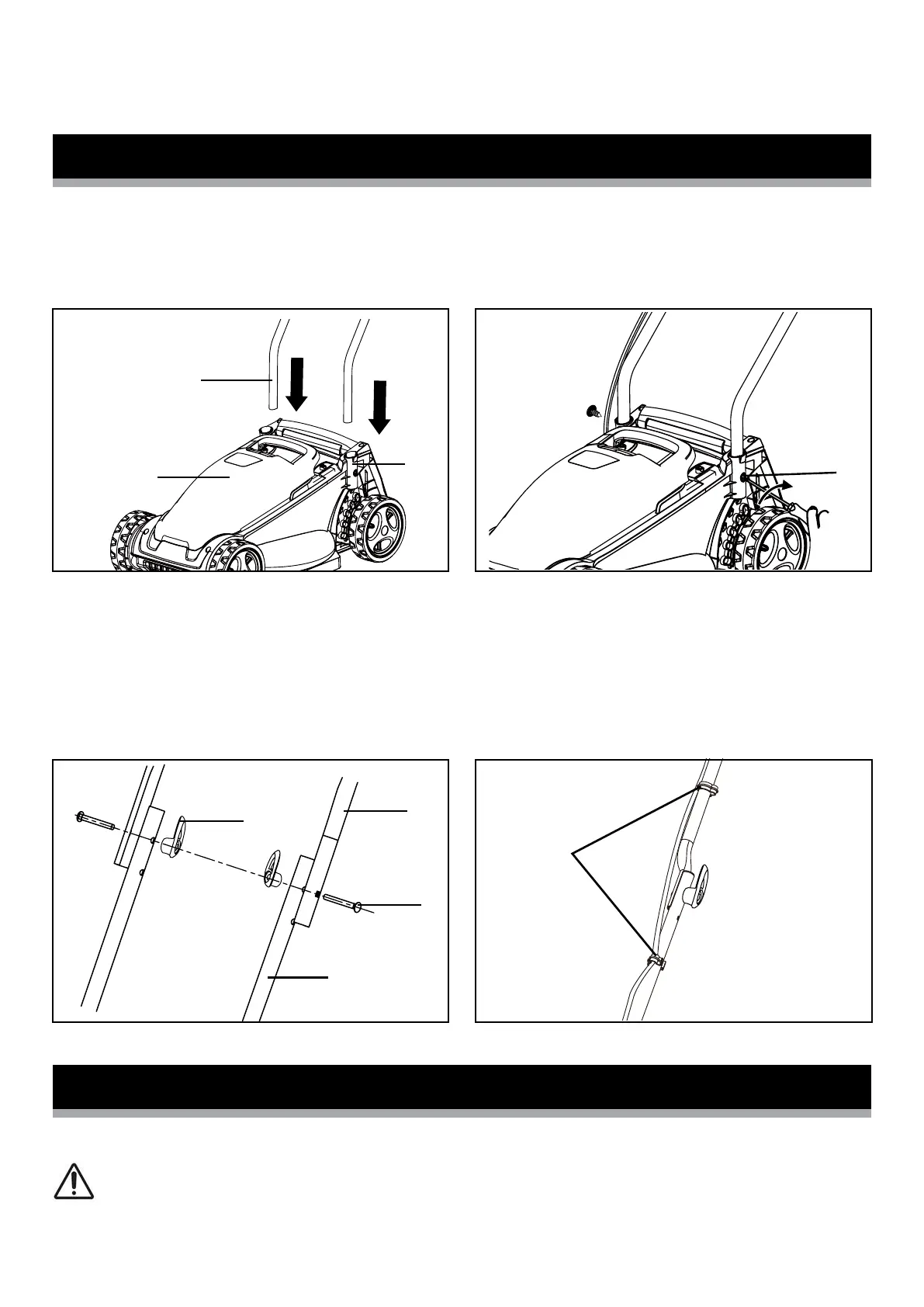

1. Insert the lower handle bar (3) into the supports (7) on the deck (10)
(Fig. 1)
2. Fix the lower handle bar (3) using the enclosed screws (8) (Fig. 2).
3. Fix the upper handle bar (1) using the enclosed bolts (2) and the wing
knobs (13) on the lower handle bar (3) (Fig. 3). There are two possible
positions. Select the position appropriate for the height of the user.
4.
Secure the cable against the handle frame with the supplied cable clip
(12). Ensure the cable must be clipped into the cable clip (12) (Fig. 4).
Assembling The Lawn Mower
WARNING! Never operate the mower unless the deflector guard
and grass collection box are fully installed. Risk of injury!
Fig. 1
Fig. 2
Fig. 3 Fig. 4
1
3
2
13
8
