After this, the Assistant assembles these positions in accordance with your
selected mode (1-2-3 - see next page) in a timed sequence. We recommend that
you always use the Setup Assistant – it will save you a great deal of adjustment
work, and any non-standard movements can subsequently be added at any time
using Manual Setup.
a) Setup Assistant
The Setup Assistant is only available for Sequencer A, and is specically desi-
gned to cater for retractable undercarriage sequences.

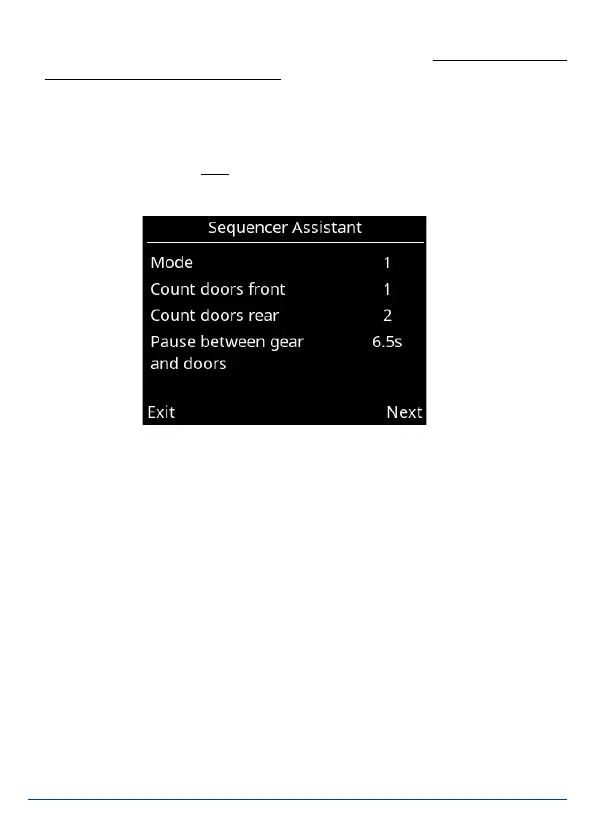

Once the Setup Assistant is selected, it has to learn a number of fundamental
aspects:
• Mode
Three modes are available, representing different sequences.
- Mode 1:
Extension: all wheel doors open – undercarriage extends
Retraction: undercarriage retracts – all wheel doors close
- Mode 2:
Extension: all wheel doors open – undercarriage extends – rear wheel doors close
Retraction: rear wheel doors open – undercarriage retracts – all wheel doors close
- Mode 3:
Extension: all wheel doors open – undercarriage extends – all wheel doors close
Retraction: all wheel doors open – undercarriage retracts – all wheel doors close
