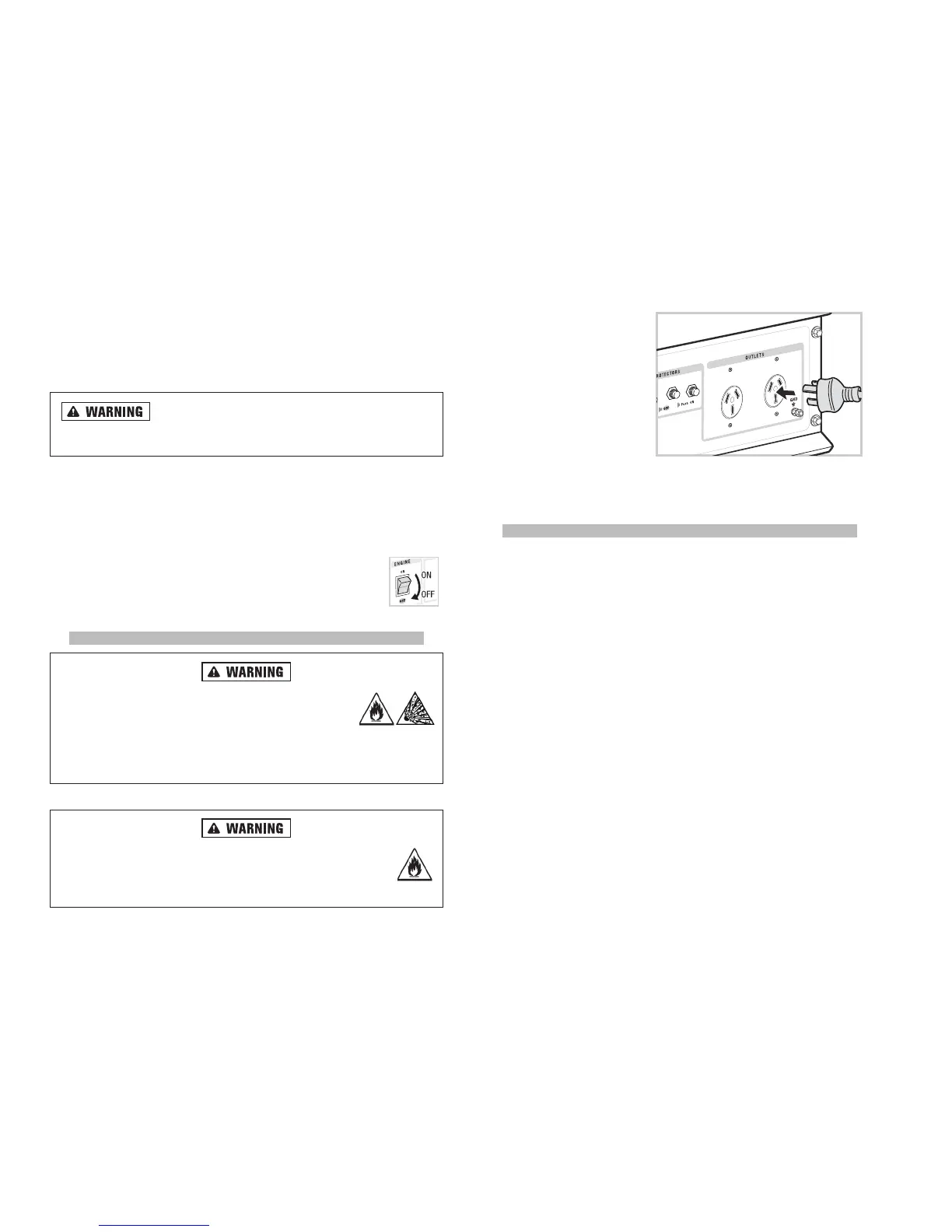

240 V AC, 15A, S223E-1 OUTLET:
Use this outlet to operate 240V
AC, 50 Hz, single phase loads
requiring up to 15A each outlet.
The outlet is protected by press-
to-reset circuit protectors. If
protectors pop due to appliance
overload, remove the loads and
wait for a minute for the protec-
tors to cool down and then press
to rest.
CONNECTING TO GENERATOR OUTLETS
In order to prevent damage and prolong the life of the generator and any attached appli-
ances or tools, it is very important to use caution when adding loads to the generator.
Use the following steps as a guide to protect the generator and provide safety for those
who use it.
• NEVER start or stop generator engine with electrical devices plugged in and/or
turned on. Damage to both electrical devices and generator can occur.
• Ensure generator is sitting on a level surface.
• When starting generator engine, pull cord slowly until resistance is felt, then
pull rapidly to avoid kickback.
Whenever excessive petrol is present in the air/petrol
mixture, a “flooding” condition can occur. Move choke lever to “RUN”
position and pull starter cord handle repeatedly until engine starts.
• Start engine and wait until engine
runs at a stabilized speed before connecting
to electrical loads.
• DO NOT expose generator to excessive moisture, dust, dirt or corrosive vapors..
• DO NOT operate generator in rain.
• DO NOT allow unqualified persons to operate or maintain generator.
SHUT GENERATOR OFF IF:
• Electrical Output is lost.
• Various components spark, smoke, or emits flames.
• Generator vibrates excessively.
OUTLETS AND CIRCUIT PROTECTORS
Overloaded electrical cords can overheat, arc and burn
resulting in property damage, severe burns and even death.
Only use cords rated for the equipment it’s being used on.
Follow all warnings and cautions in this manual for use of
extension cords.
Keep extension cords as short as possible to minimize voltage drop.
Plugs NOT INCLUDED with generator.
Outlets may be marked with rating value greater than generator
capacity. Never attempt to power a device requiring more amperage
than generator or extension cord can supply. Do not overload genera-
tor because of risk of damage to equipment, fire or explosion.
2221
1. With nothing connected to generator, start engine by following steps outlined in
this manual.
2. Plug in and turn on first load. This should be the largest load.
3. Allow generator output to stabilize. This will be when engine runs smoothly and
attached load functions normally.
4. Plug in and turn on next load.
5. Again, allow generator output to stabilize. This will be when engine runs
smoothly and attached load functions normally.
6. Repeat Steps 4 and 5 for each additional load.
