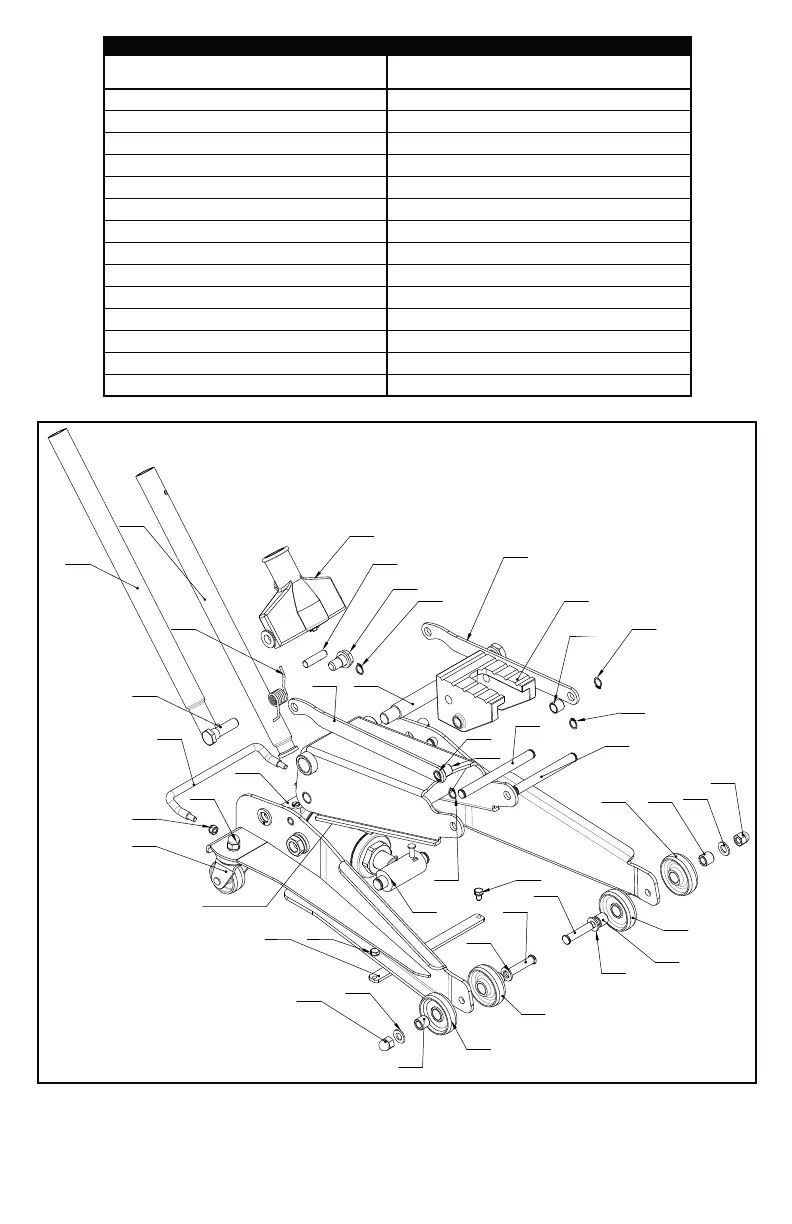

Powerbuilt Ujack - Exploded Diagram

25
24
13
21
22
9
15
14
9
9
12
20
19
18
27
17
6
28
7
3
2
4
1
1
2
5
5
4
2
1
1 4
2
3
11
10
23
13
9
8
7
9
12
16
26
No. Description
1 Front Wheel
2 Washer
3 Axle Nut
4 Wheel Bushing
5 Wheel Axle
6 Cross Link
7 Cross Link Bolt
8 Load Block
9 C-Clip
10 Radius Link Pin
11 Saddle Pin
12 Radius Link Spacer
13 Radius Link
14 Saddle
EXPLODED DIAGRAM
7
No. Description
15 Lift Arm Pivot Pin
16 Power Unit Assembly
17 Caster Wheel Assembly
18 Lifting Handle Nut
19 Lifting Handle
20 Yoke Pin 56 X 18MM
21 Yoke Pin 40 X 18MM
22 Pump Pin
23 Return Spring
24 Yoke
25 Lower Handle
26 Upper Handle
27 Caster Wheel Nut
28 Oil Plug
