TILE CUTTING MACHINE
Introduction
To get the most out of your new tile cutter,
please read this manual and the enclosed
safety instructions before use.
Please also save the instructions, as you may
need to refer to them at a later date.
This cutter is ideal for small and medium-
sized tiles for fl oors and walls. The bench
can be adjusted to any angle up to 45°,
making angled cuts simple and precise.
Technical data
Voltage/frequency: 230 V ~ 50 Hz
Power rating: 600 W
Free rotation speed: 2,950 RPM
Max. cutting height: 35 mm
Bench size: 330 × 360 mm
Diamond disc: 180 mm Ø,
hole diameter 25.4 mm
Instructions
Read the instructions carefully
before use, and keep them for
future reference.
Voltage/frequency
Indicates the required voltage and
frequency of the power supply
to which the machine is to be
connected.
Power rating
Indicates the machine’s maximum
power.
Speed
Indicates the machine’s speed(s)
or speed range in revolutions per
minute.
Blade size
Indicates the diameter of the
blade.
Cutting angle
Indicates the machine’s bevel and
mitre range.
Cutting depth
Indicates the machine’s maximum
cutting depth.

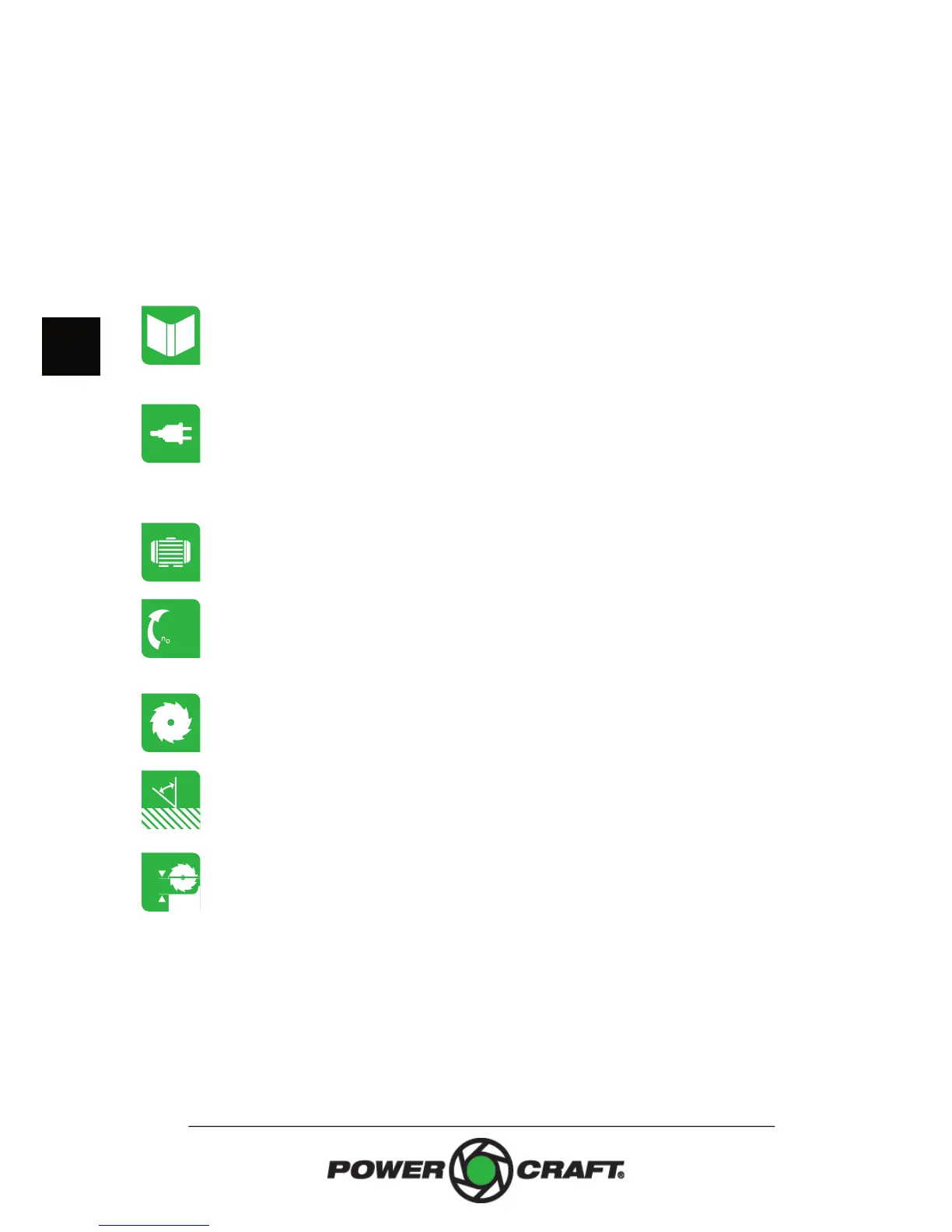

Symbols used
Symbols are sometimes used on the
packaging, on the machine or in the
accompanying documentation. A key to
these symbols is given below.
