Switch the machine off and remove any tile
scraps once the diamond disc has come to a
complete stop.

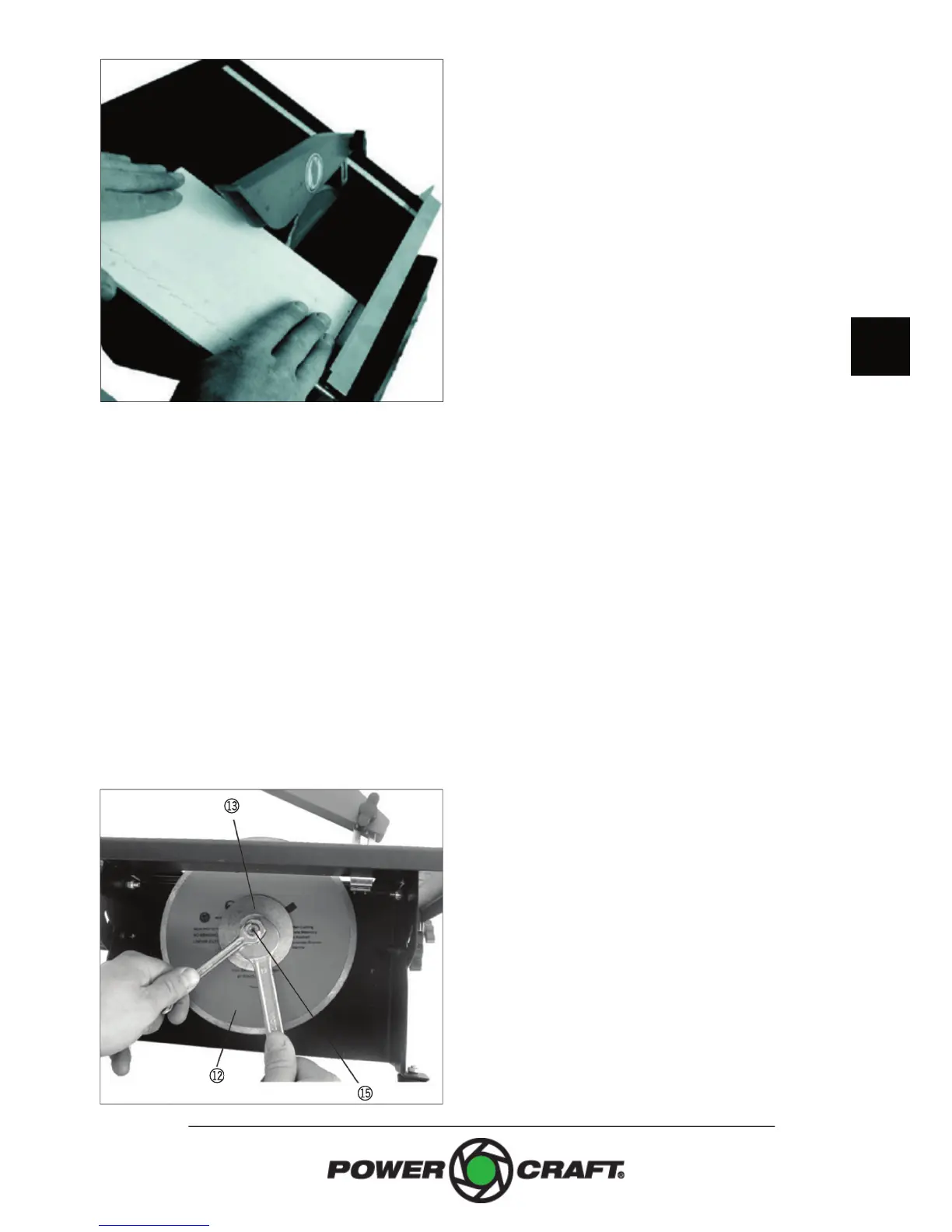

Changing the diamond disc
Switch the machine off and disconnect from
the mains.
Remove the water tank.
Remove the side screen.
Secure the motor shaft using an 8 mm fork
spanner.
Place a 19 mm spanner on the lock nut.
Undo the lock nut and remove it. Remove
the outer fl ange.
Clean and lubricate the parts and shaft.
Replace the diamond disc. Check rotation
direction.
Replace outer fl ange.
Fit and tighten lock nut using adjustable the
spanner.
Replace the side guard.
Cleaning and maintenance
Switch the machine off and disconnect from
the mains.
Wipe down using a well-wrung cloth after
use, and always keep the surface and
ventilation holes free of dirt. Empty and
rinse water tank after use.
bn
bq
bo
Service centre
Note: Please quote the product model
number in connection with all inquiries.
The model number is shown on the front of
this manual and on the product rating plate.
For:
• Complaints
• Replacements parts
• Returns
• Guarantee issues
• Open weekdays from 07.00 to 17.00
(Fridays until 15.30)
• E-mail: service@hpschou.com
