28

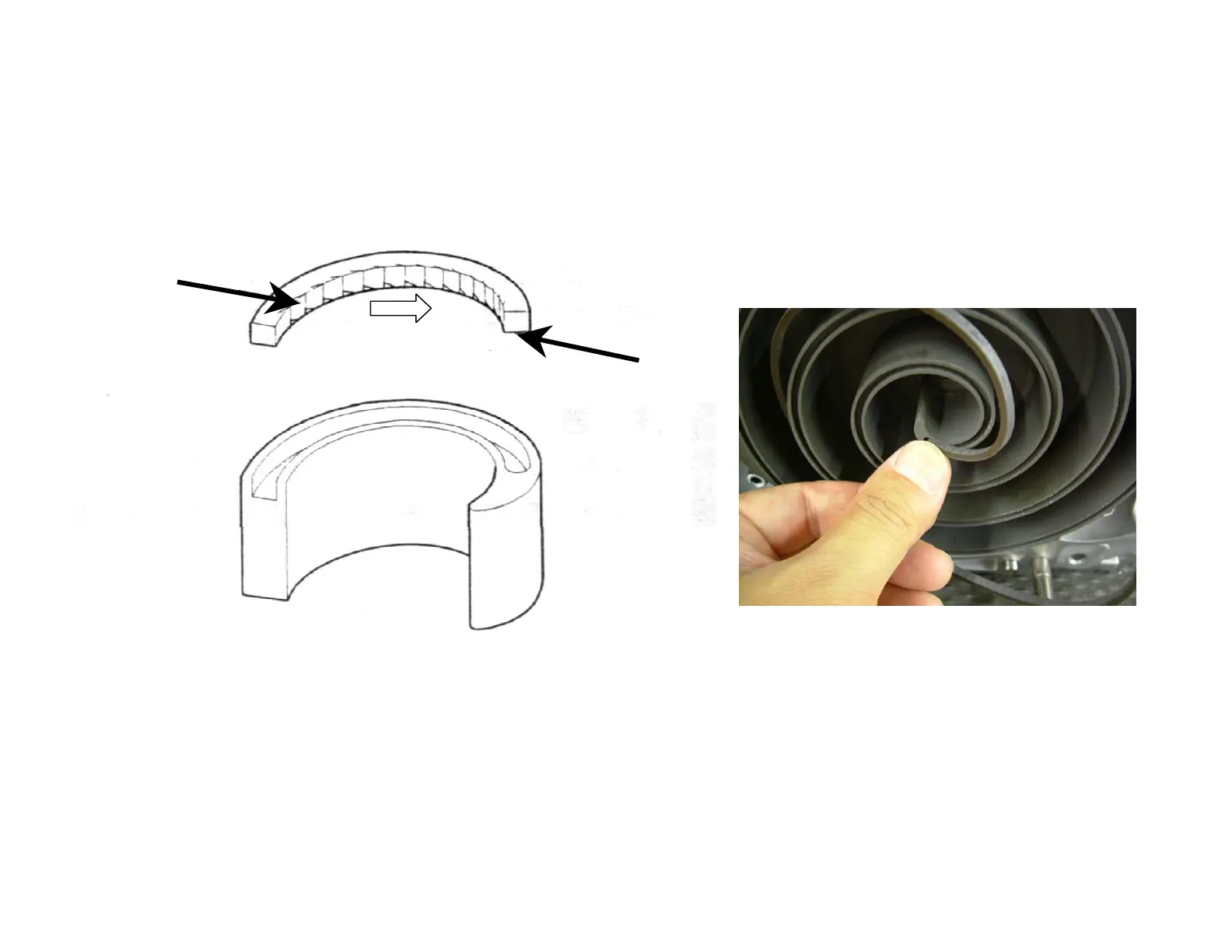

Lip direction
Center
Lip
(Bottom Side)
Lip
(Inside)
v. Insert new HP Tip Seal from the center section of OS set so that there will be no
clearance at the start section.
CAUTION
Tip Seals for OS and FS have opposing seal cut angles. Insert Tip Seal so
that the lip seal on the bottom of seal groove and inner side of scroll
spiral and the direction of lip faces the center of scroll spiral. This is to
be done both OS and FS sets, otherwise, air end cannot make enough air.
To Next Page
