29
Notch

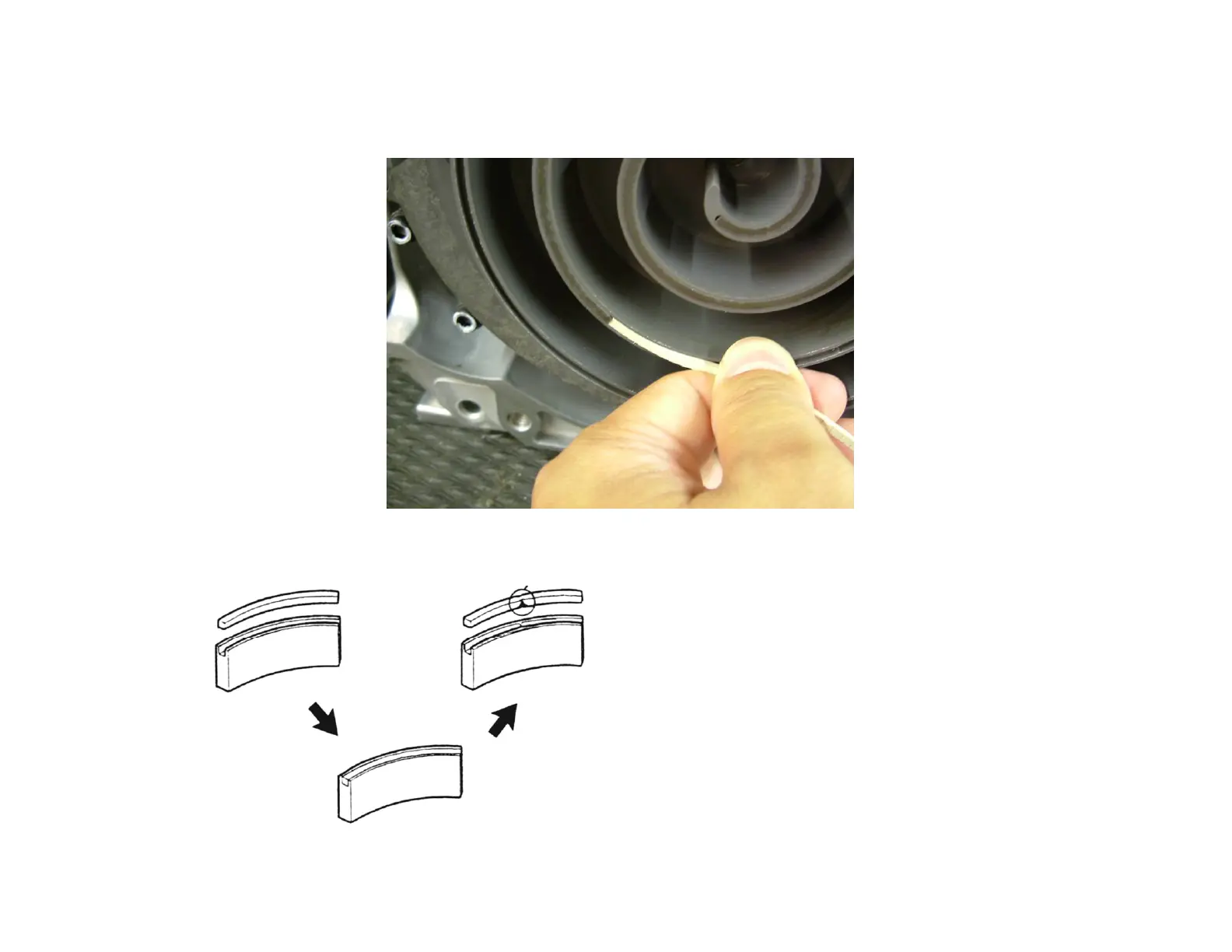

vi. Insert so that new LP Tip Seal will contact closely with HP Tip Seal inside scroll groove.
CAUTION
Insert approximately half of the LP Tip Seal and
remove the Tip Seal to confirm that a notch in the
Tip Seal has been achieved. This will prevent
movement during running. Before reinserting,
remove dust around the notch.
