Technical data

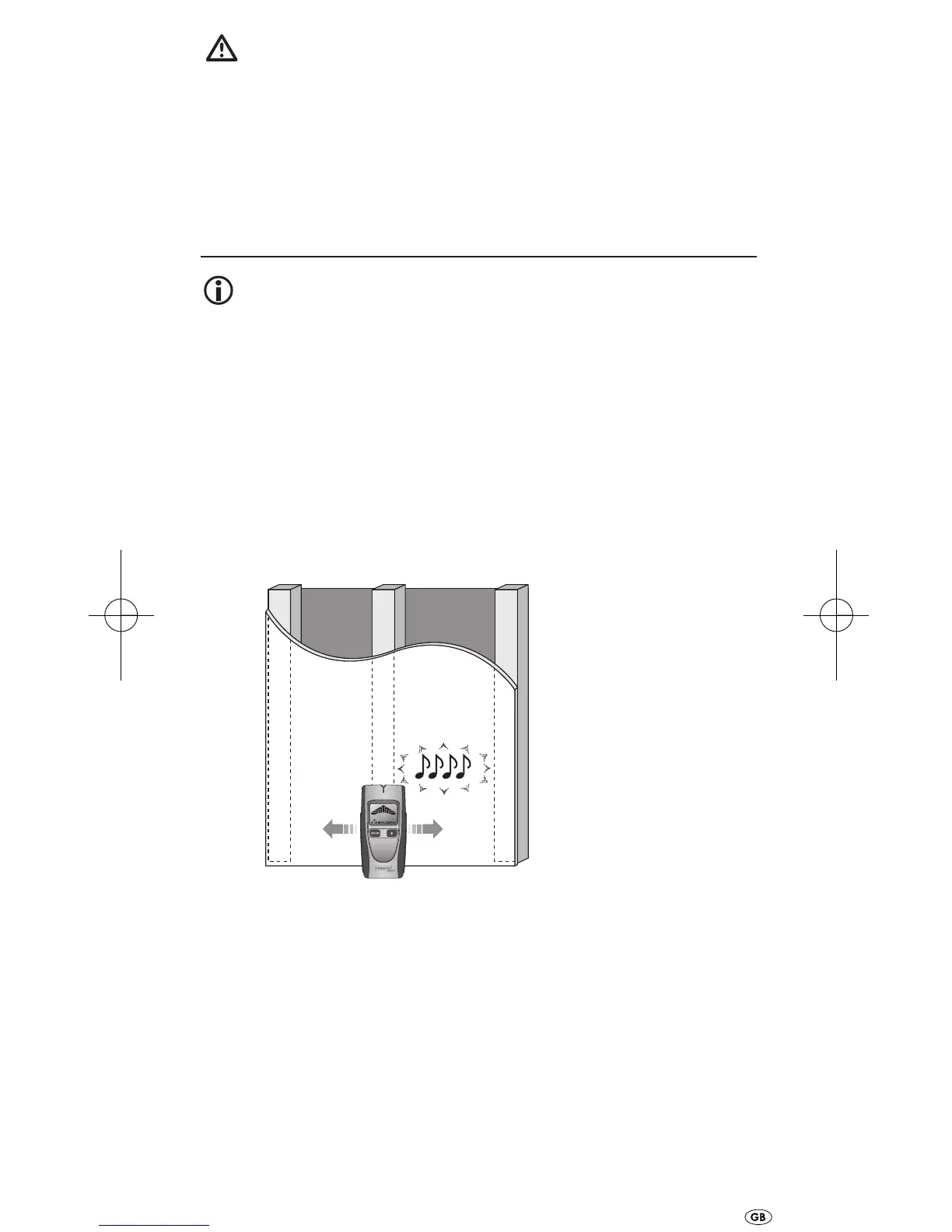

Locating of: Bearers, metal, cavities, power supply lines
Power supply: 9 V Block battery, 6F22/6LR61
Detection depth for bearers: 19 mm +/- 3 mm
Detection depth for metal: 30 mm +/- 13 mm
Detection depth for cavities: 38 mm +/- 5 mm
Detection depth for power
supply lines: 50 mm / no indication
Description of the appliance
1
Measurement head with centre line marking
2
Display
3
Function switch
4
Battery compartment
5
ON/OFF button
6
PUSH button
Items supplied
• Multi-Function Detector
• 9 V Block battery
• Operating Instructions
Unpacking
Take the multi-purpose detector from its packaging.
Remove all transport restraints and packaging materials.
Remove the protective foil from the display
2
.
Inserting the battery
1. Open the battery compartment
4
at the rear of the
multi-purpose detector.
2. Place the 9 V block battery onto the contacts. Pay heed
to the correct polarity.
3. Press the 9 V block battery into the battery compart-
ment
4
.
