5. OPERATION

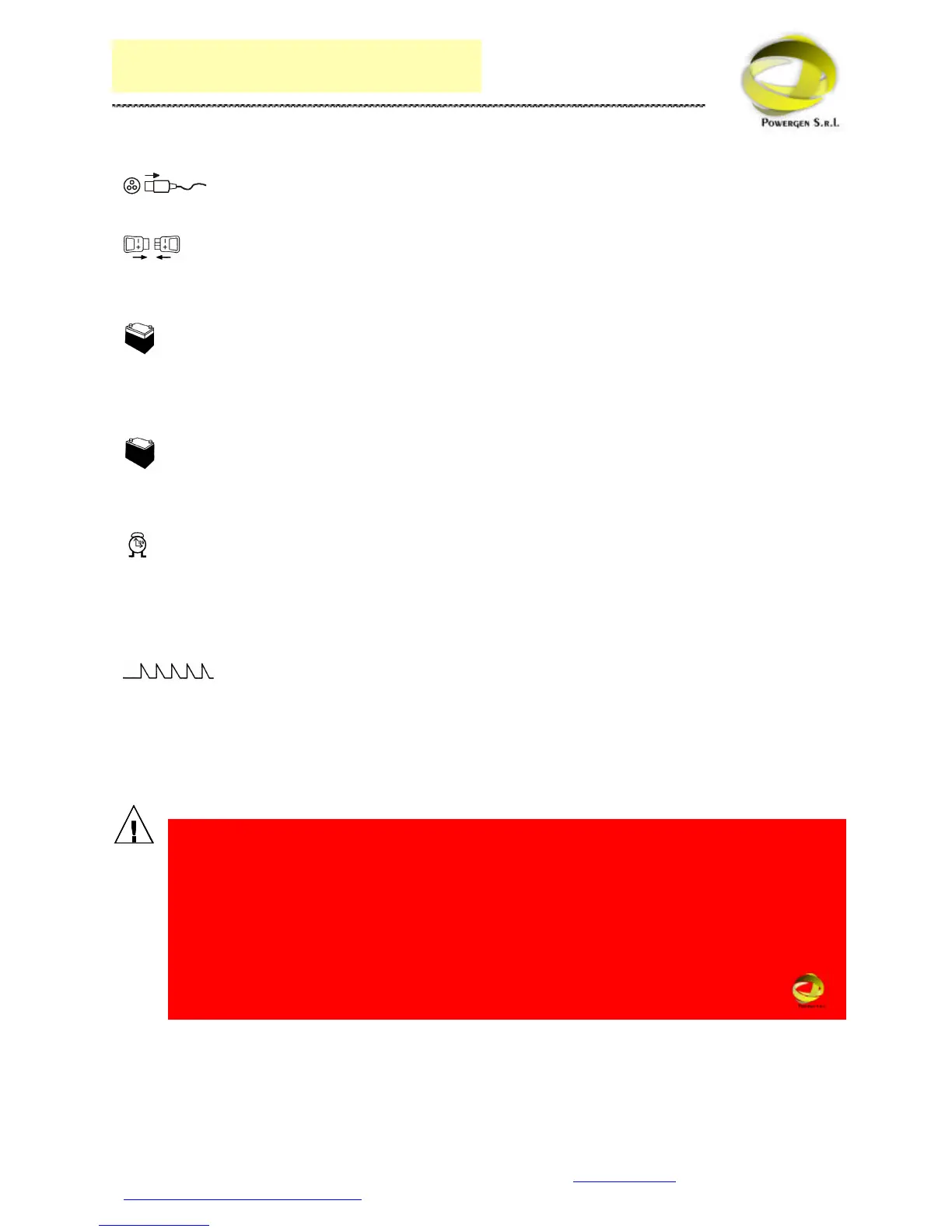

Led 1 (Red) Power failure.
Led 2 ( Green) Battery connected – Initial charge. Charge starts and voltage per cell is
lower than 2.4V.
Led 3 (Yellow) Final charge. Shows voltage per cell is higher than 2.4V. The charging
process continues for 3 – 4 hours and at the end of this time the charge is completed and
the remote control switch will be placed in quiescent position.
Led 4 ( Green) Charged battery. Shows that 3 – 4 hours have gone since Led 3 (Yellow)
lit and the battery is charged now.
Led 5 (Red) Maximum time. Lights if the battery charger has not completed its charging
cycle within 12 hours. The electronic card is provided with a safety timer interrupting the
cycle in order not to damage the battery. The remote control switch is placed in quiescent
position.
Led 6 (Yellow) . Equalization. This led will light after pressing the red circuit breaker. Such
charge will take place at the end of the normal cycle by executing 5 minutes of charge and
55 minutes of break on an hourly basis. The disconnection will occur automatically after
the preset time of 48 hours (weekend charge).
ATTENTION, PLEASE:
BEFORE DISCONNECTING THE CONNECTOR BETWEEN THE BATTERY AND
THE CHARGER, PLEASE, MAKE SURETHE CHARGE LIFE CYCLE HAS
FINISHED, OTHERWISE BEFORE DISCONNECTING YOU MUST STOP THE
CHARGE MANUALLY, IN ACCORDANCE WITH THE SECURITY STANDARDS.
THIS OPERATION GUARANTEES MORE RELIABILITY OF THE INNER
ELECTRONIC COMPONENTS OF THE EQUIPEMENT.
POWERGEN s.r.l.
