PowerMaster H - PNEUMATIC DOOR EDGE INSTALLATION - FIELD WIRING

Figure 16

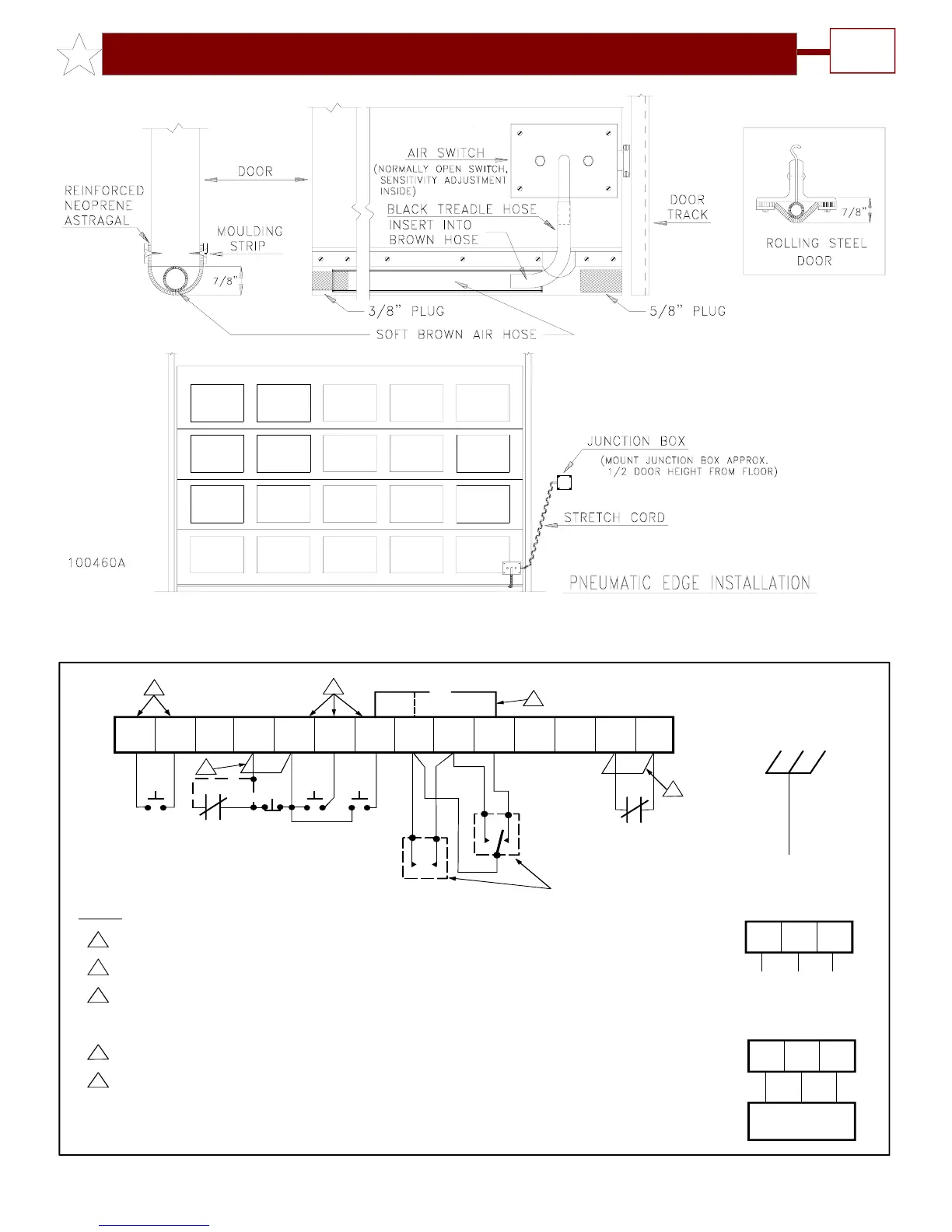

PNEUMATIC DOOR EDGE INSTALLATION - FIELD WIRING
12
R3 R2 R1
RADIO
RCVR
L1 L2 L3
INCOMING LINE
NOTES:
1 - INSTALL BROWN JUMPER WIRE IF THERE IS NO STOP BUTTON OR EXTERNAL
INTERLOCK SWITCH CONNECTED TO TER MINAL STRIP.
2 - REMOVE VIOLET JUMPER WIRE WHEN TIMER DEFEAT
SWITCH IS USED.
3 - INTER NAL ORANGE JUMPER.
-MOVE THIS JUMPER FROM TERMINAL #7 TO #8 IF ALL OBSTRUCTIONS
SENSORS ARE 2-WIRE TYPE.
-REMOVE JUMPER IF 3-WIRE DEVICES ARE USED.
4 -TREADLES, PULL SWITCHES, KEY SWITCHES, PHOTO-ELECTRIC DEVICES,
ETC. MAY BE CONNECTED TO TERMINALS INDICATED.
5 -REMOTE CONTROL UNITS (EXCLUDING TREADLES AND PHOTO-ELECTRIC UNITS).
PULL SWITCHES AND SINGLE CONTACT CONTROL STATIONS MAY BE CONNECTED
TO TERMINALS INDICATED.
1 2 3 4 5 6 7 8 9 10 11 12 13 14
V
PHOTOCELL
OR 3-WIRE
AIRSWITCH
TIMER DEFEAT
SWITCH (N.C.)
(WHEN REQ'D)
EXT'L INTL'K
(WHEN REQ'D)
BR
ST
OP
CL
SINGLE
CONTACT
CONTROL
2-WIRE EDGE
OR AIRSWITCH
(SEE NOTE #3)
OBSTRUCTION
SENSING DEVICE
OR
5
4
1
2
3
GND
FIGURE 10
Figure 9
