RADIO CONTROL INSTALLATION:

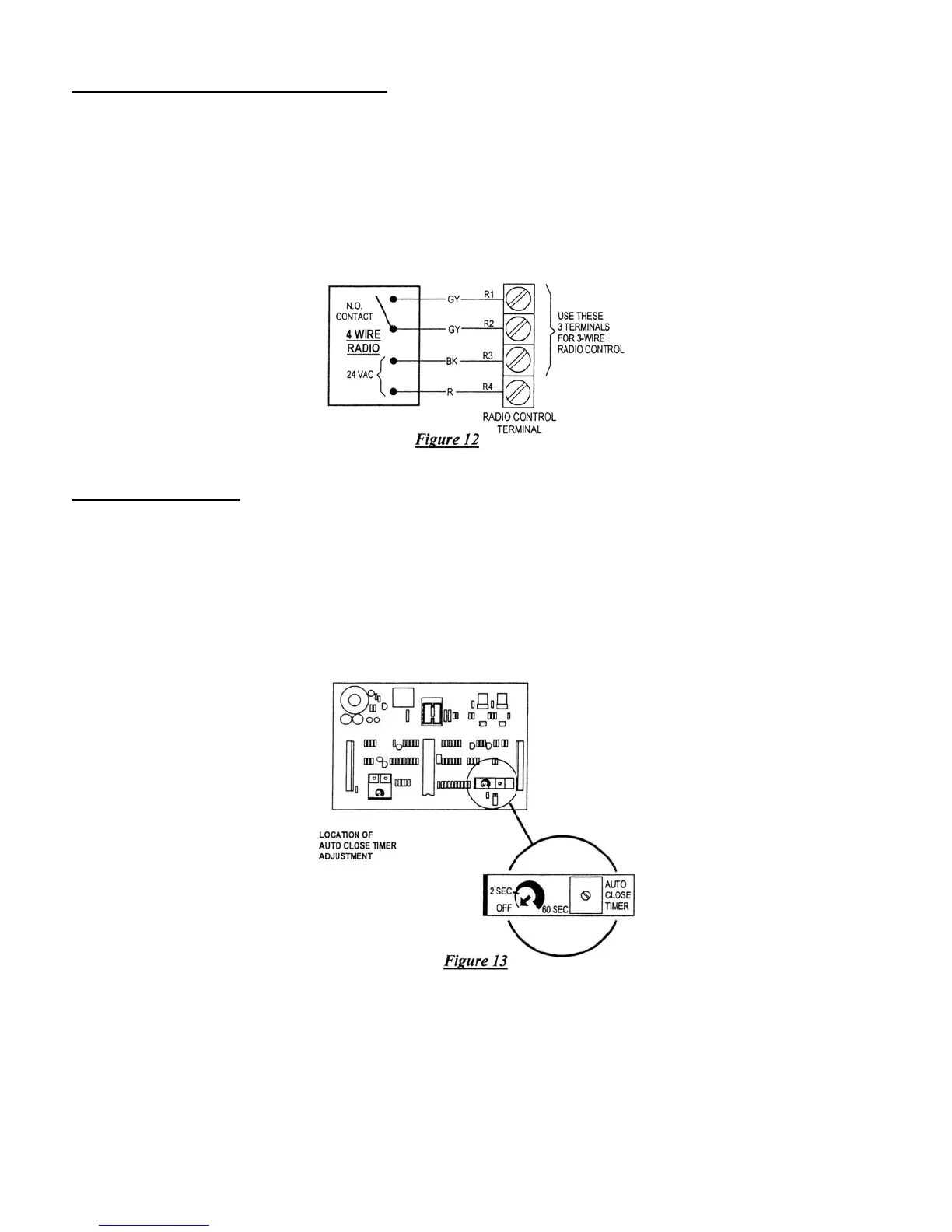

Either a three wire or a four wire radio control receiver can be installed on this operator (See Fig. 12) for
electrical connections. This radio control can only be used to open the gate, therefore the "TIMER TO
CLOSE" option must be activated for closing. (See Next Section). Note: If your radio's connecting wires
are not color coded as shown in figure 12 see the radio's installation manual to determine which wires are
for the normally open contacts and which require the 24 VAC power supply.
TIMER TO CLOSE:
The operator is equipped with a timer to close option for use with OPEN ONLY control devices such as a
radio control, or a card key control. The adjustment is located on the printed circuit board (See Fig. 13). The
operator is shipped from the factor with this timer preset to the OFF position; fully counter clockwise. As
the timer adjustment screw is rotated clockwise, the closing of the gate can be delayed from 2 seconds to 60
seconds (See Fig. 13).
